FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
19697 Reference tool axis direction
[Data type] Byte
[Valid data range] 0 ~ 3
Set the tool axis direction in the machine coordinate system when the rotation axes
for controlling the tool are all at 0 degrees. Also, set the tool axis direction in the
machine coordinate system in a mechanism in which only the rotation axes for
controlling the table are present (there is no rotation axis for controlling the tool).
1: Positive X-axis direction
2: Positive Y-axis direction
3: Positive Z-axis direction

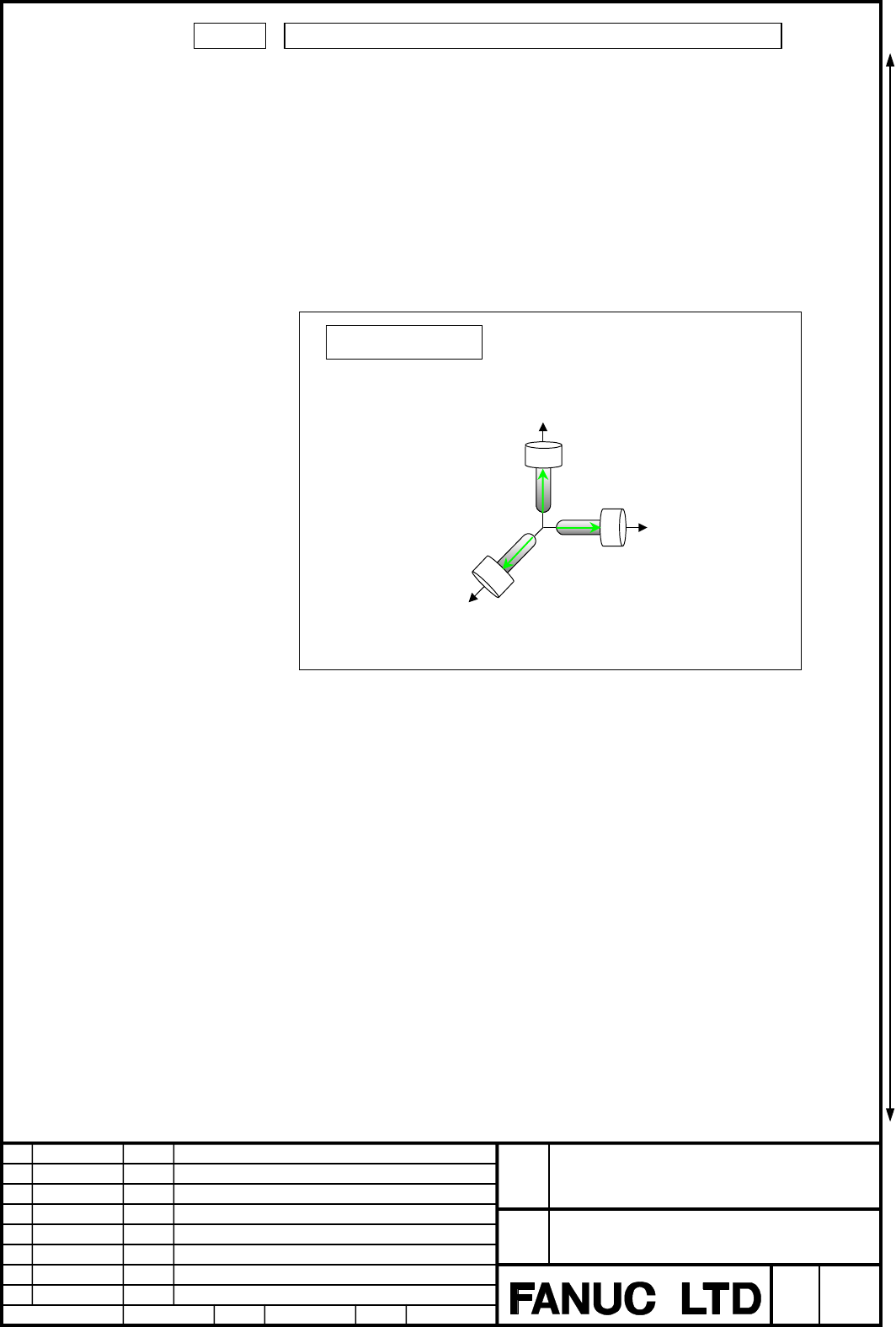

Reference tool axis direction
X
Y
Z
Tool axis direction is positive X-axis direction.
Tool axis direction is positive Y-axis direction.
Tool axis direction is positive Z-axis direction.
4)
Previous page
Next page
