Series 16i Additional Manual Page 47

Additional Manual
47
/
88
A-78710E
Edit
Apprv. Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
・ Parameter example
(1) Machine with rotary axes which don't intersect
In the machine explained in this example, the first, second, third, fourth, fifth, and
sixth axes are, respectively, X, Y, Z, A, B, and C.

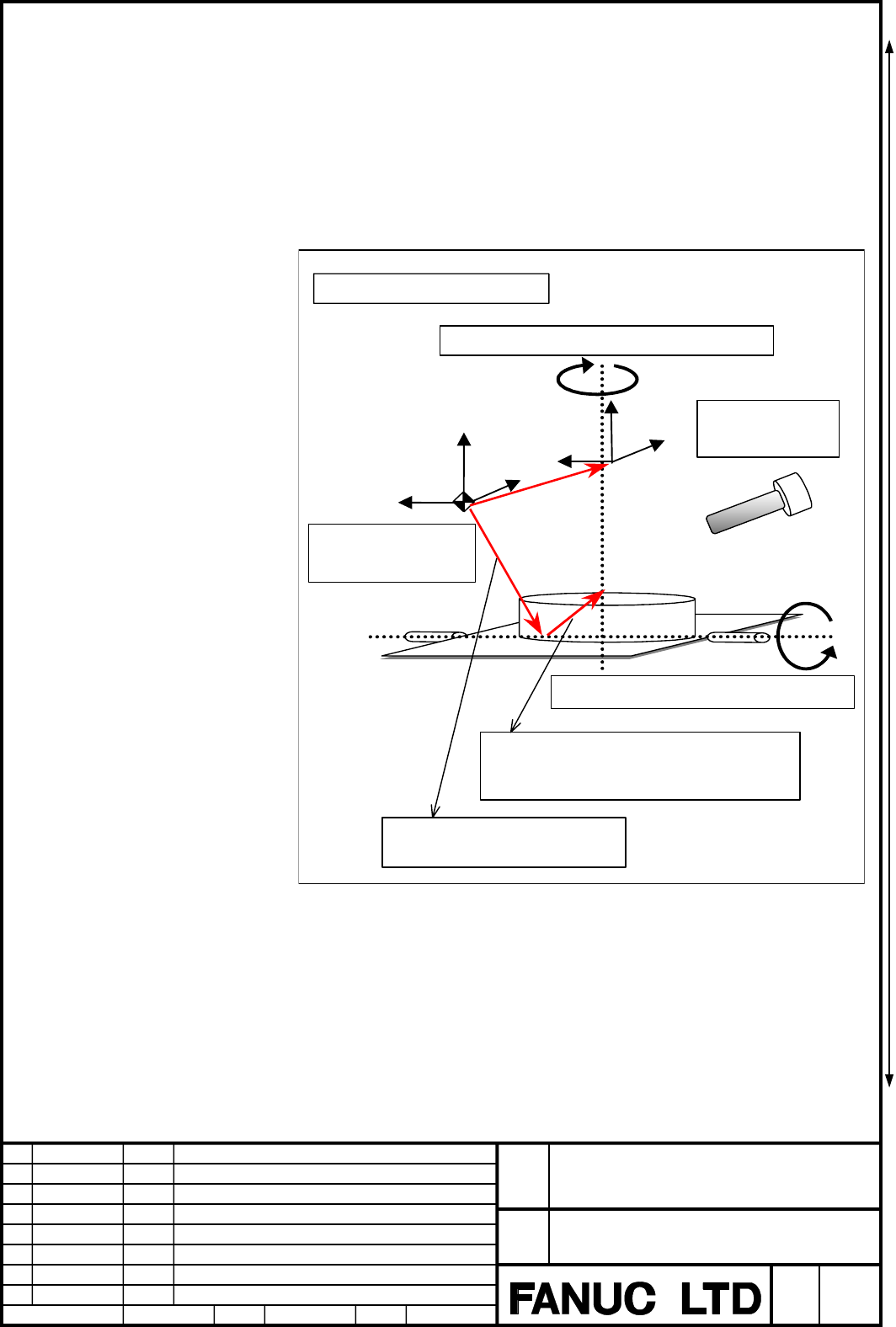

This is an example of setting parameters for the table rotation type machine shown
below.
Rotary axis A is the table rotary axis (master) on the X-axis.
Rotary axis B is the table rotary axis (slave) on the Y-axis.
Work coordinate
system
Machine coordinate
system
Rotary table position
(PRM19700,19701,19702)
Intersection offset vector between the first
and second rotary axes of the table
(PRM19703,19704,19705)
A
Center of the first rotary axis of the table
Center of the second rotar
y
axis of the table
B
Zm
Ym
Xm
Z
X
Y
Table rotation t
yp
e machine
In the table rotation type machine shown above, if the machine coordinate system for
rotary axes A and B is at 0 degrees, assume:
Rotary table position = (-10.0, -30.0, 0)
Intersection offset vector between the first and second rotary axes of the table = (0,
8.0, 8.0)
The settings of the parameters for the table rotation type machine stated above are
as follows:
4)
