FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
・Others

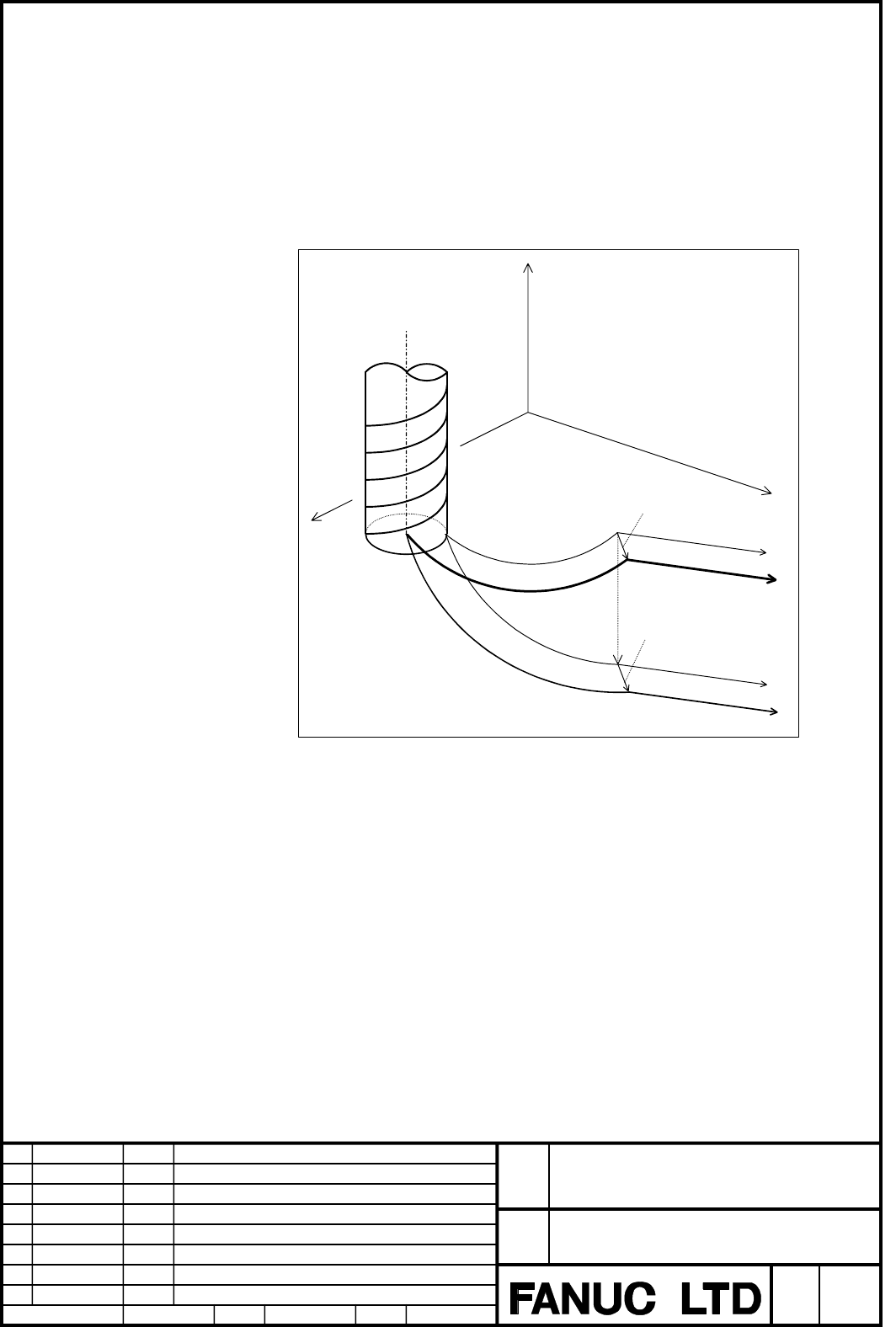

When the tool movement changes linear to circular (helical), circular (helical) to
linear, or circular (helical) to circular (helical), the start, end, and center points of a
circular (helical) movement are projected on the compensation plane that is
perpendicular to the tool axis, and a compensation vector is calculated in the plane.
The obtained vector is added to the originally specified position to create a position
to be specified. Then, the tool is moved linearly or circularly (helically) to the
created position.
Z
X
Y
Tool
Tool axis
Start point
End point
A
ctual tool center path
Tool center path created in the
compensation plane
(Compensation plane = XY plane)
Offset vector created in
the compensation plane
A
ctual offset vecto
r
Move command
Projected
Fig.2.22 Others
