FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
(2) Machine with inclined rotary axis
In the machine explained in this example, the first, second, third, fourth, fifth, and
sixth axes are, respectively, X, Y, Z, A, B, and C.
This is an example of setting parameters for the table rotation type machine shown
below.
Rotary axis B is the table rotary axis (master) on the axis which the axis is inclined at
-45 degrees in the Y-Z plane.
Rotary axis C is the table rotary axis (slave) on the Z-axis.
B
Z
Y
X
Work coordinate
system
C
Zm
Ym
Xm
Machine coordinate
system
Rotary table position
(PRM19700,19701,19702)
Center of the first rotary
axis of the table
Intersection offset vector between the first
and second rotary axes of the table
(PRM19703,19704,19705)
Center of the second
rotary axis of the table

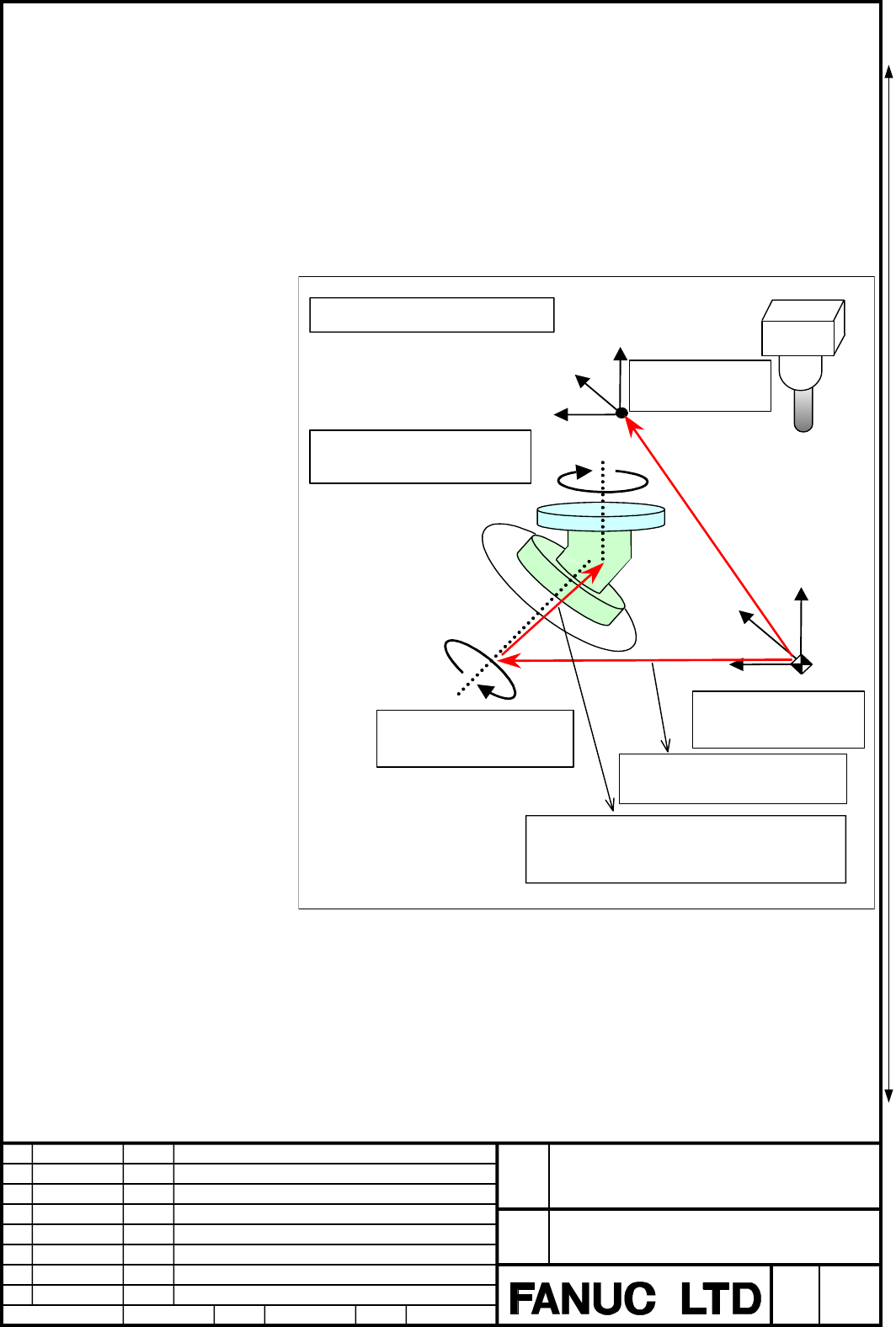

Table rotation type machine
In the table rotation type machine shown above, if the machine coordinate system for
rotary axes B and C is at 0 degrees, assume:
Rotary table position = (0, 500.0, 0)
Intersection offset vector between the first and second rotary axes of the table = (100,
-100.0, 100.0)
The settings of the parameters for the table rotation type machine stated above are
as follows:
4)
Previous page
Next page
