Series 16i Additional Manual Page 36

Additional Manual
36
/
88
A-78710E
Edit
Apprv. Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
4. Tool radius compensation for rotary table type machine
General
Cutter compensation can be performed for a 5-axis machine having a rotary table as
shown in the figure below.
Shown below is a 5-axis machine that has table rotation axis A on the X-axis and
table rotation axis B on the Y-axis.
This machine configuration is used as a sample configuration in the
following explanation unless otherwise noted:
B
A
Z
X
Y
X
Y
Z
Workpiece coordinate system
shows the direction in which the machine moves.
The table coordinate system rotates with the rotation of the
table. Part programs are created in the workpiece coordinate
system.
Table coordinate
system

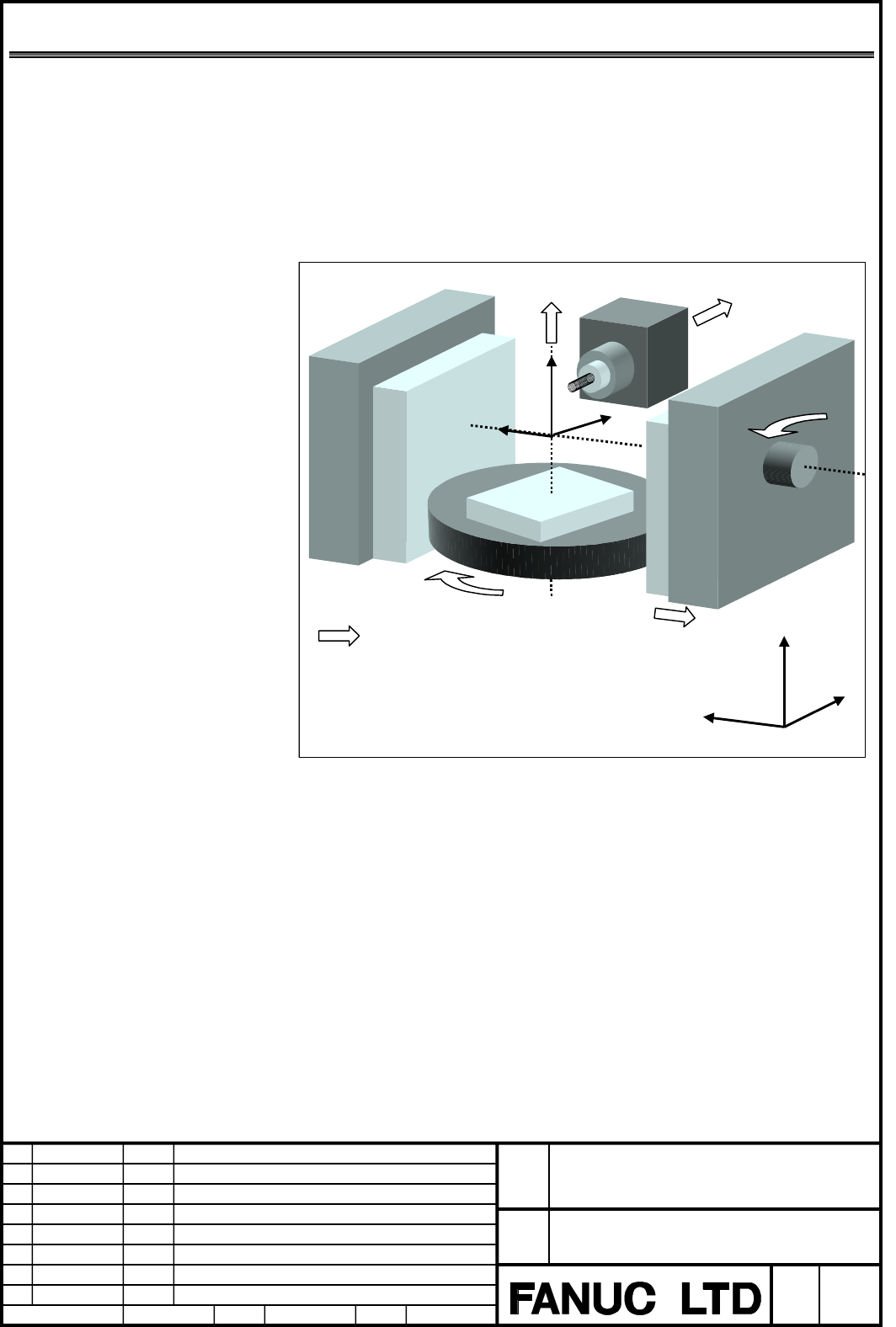

Fig.4.1 Machine having a rotary table
