FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)

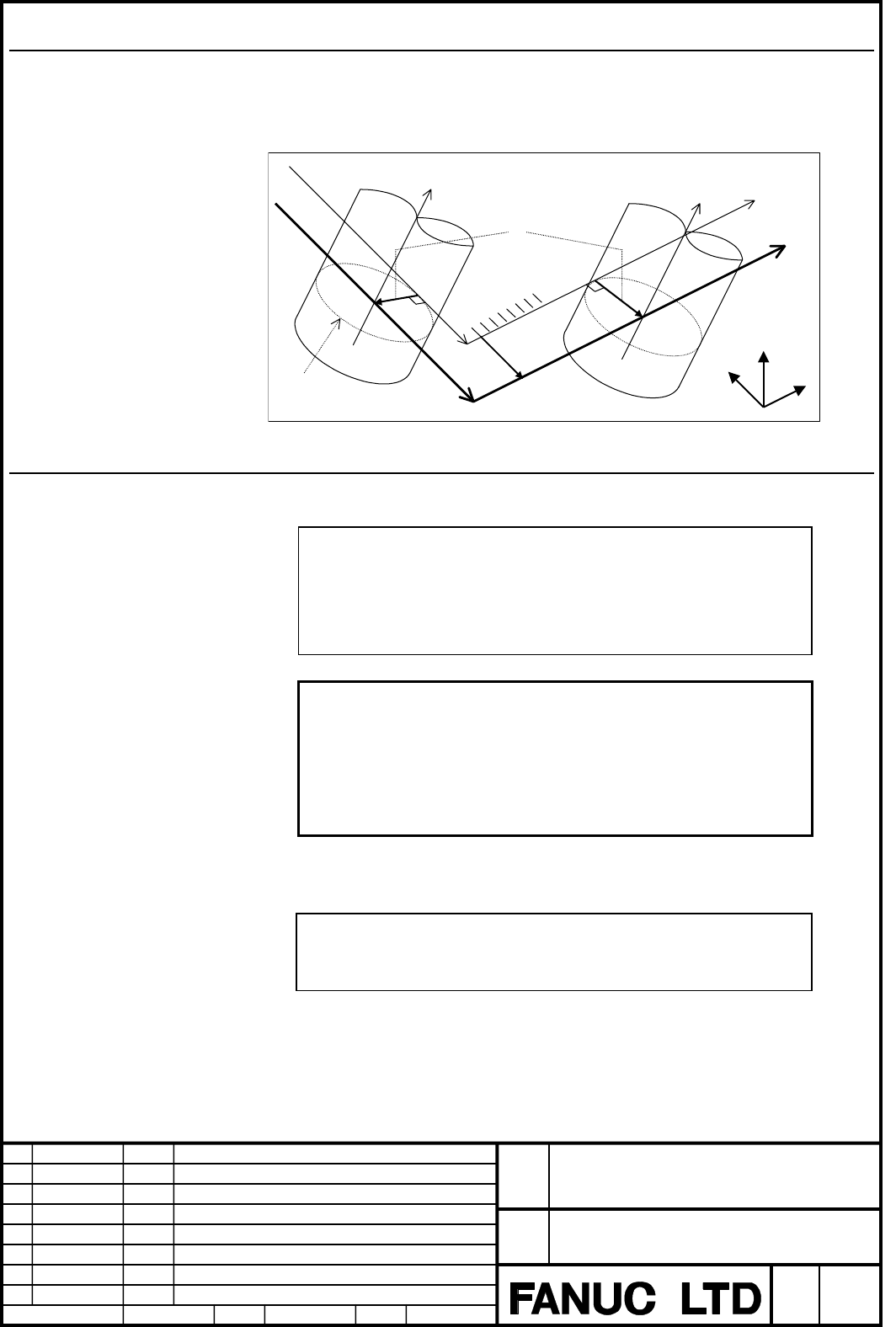

2.1 Tool Side offset
This type of cutter compensation performs cutter compensation in a plane
(compensation plane) perpendicular to the tool vector.
Compensation
plane
Y
Z
X
Tool vector
Cutter
compensation amount
Programmed tool path
(before compensation)
Cutter compensation
vector
Tool center
path(after
compensation)
Fig.2.2 Tool side compensation
Format
・Tool side offset
G41.2 (or G42.2) IP_ D_ ;
G41.2: Cutter compensation left (group 07)
G42.2: Cutter compensation right (group 07)
IP_: Value specified for axis movement
D_: Code specifying the cutter compensation amount (1 to 3 digits)
NOTE
When a movement perpendicular to the next movement (bit 1
(SUV) of parameter No. 5003 is set to 1) is specified as the
operation performed at the time of startup or cancellation, a move
command such as X_ Y_ Z_ must not be specified in the G41.2
and G42.2 block.
・Canceling the tool side offset
G40 IP_ ;
G40: Cancellation of cutter compensation (group 07)
IP_: Value specified for axis movement
