Series 16i Additional Manual Page 81

Additional Manual
81
/
88
A-78710E
Edit
Apprv. Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
19700 Rotary table position (X-axis, one of the basic three axes)
19701 Rotary table position (YX-axis, one of the basic three axes)
19702 Rotary table position (Z-axis, one of the basic three axes)
[Data type] 2Word
[Unit of data]
increment system IS-B IS-C unit
Millimeter machine 0.001 0.0001 mm
Inch machine 0.0001 0.00001 inch
[Valid data range] -99999999 ~ +99999999
Set these parameters when parameter No. 19680 is set to 12 or 21. The vector
from the origin of the machine coordinate system to point A on the first rotation axis
of the table is set as the rotary table position in the machine coordinate system.

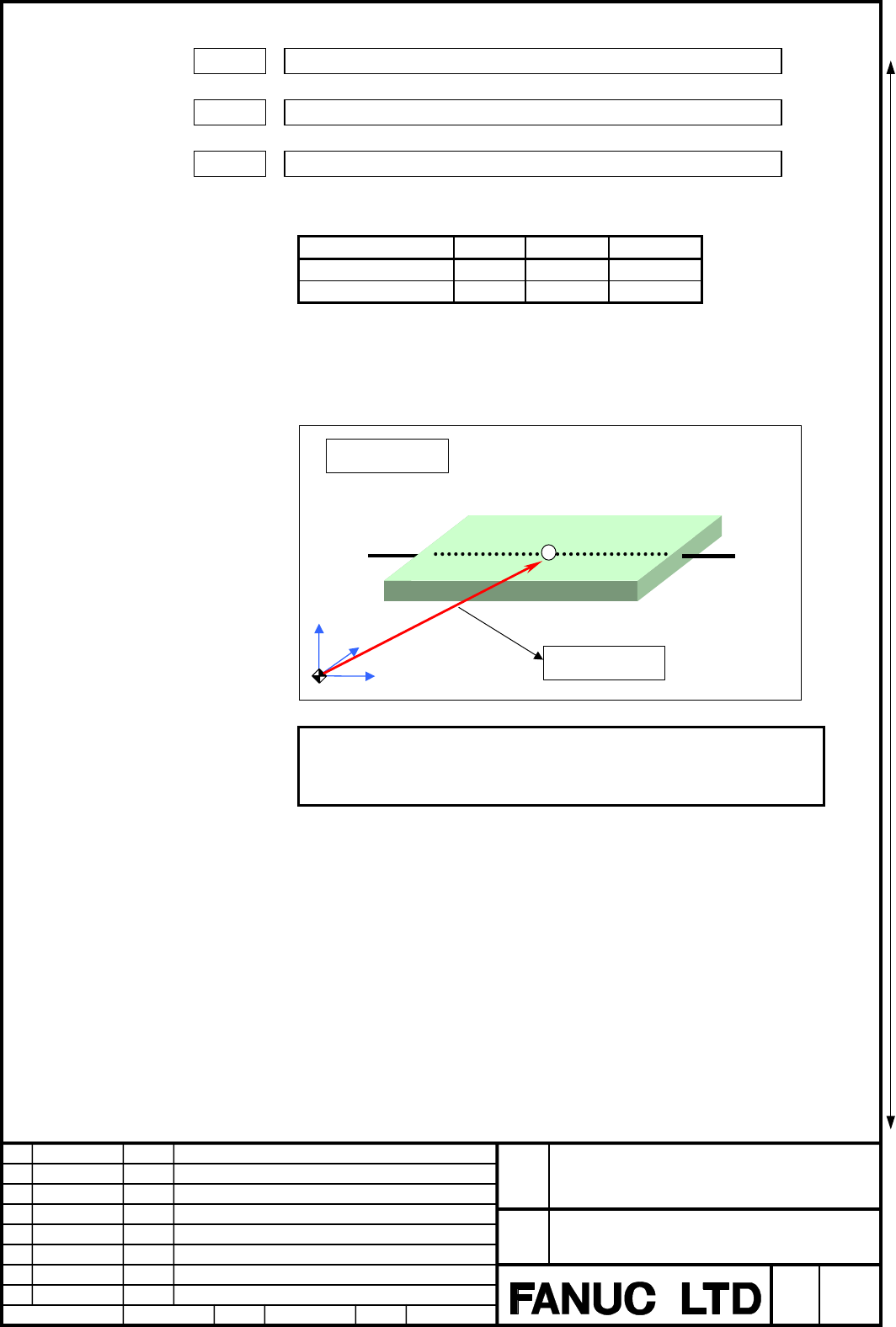

Rotary table position
Zm
Ym
Xm
First rotary axis o
f
table
Rotary table position
A
NOTE
As point A, set a position that is easy to measure on the first rotary
axis of the table.
4)
