FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)

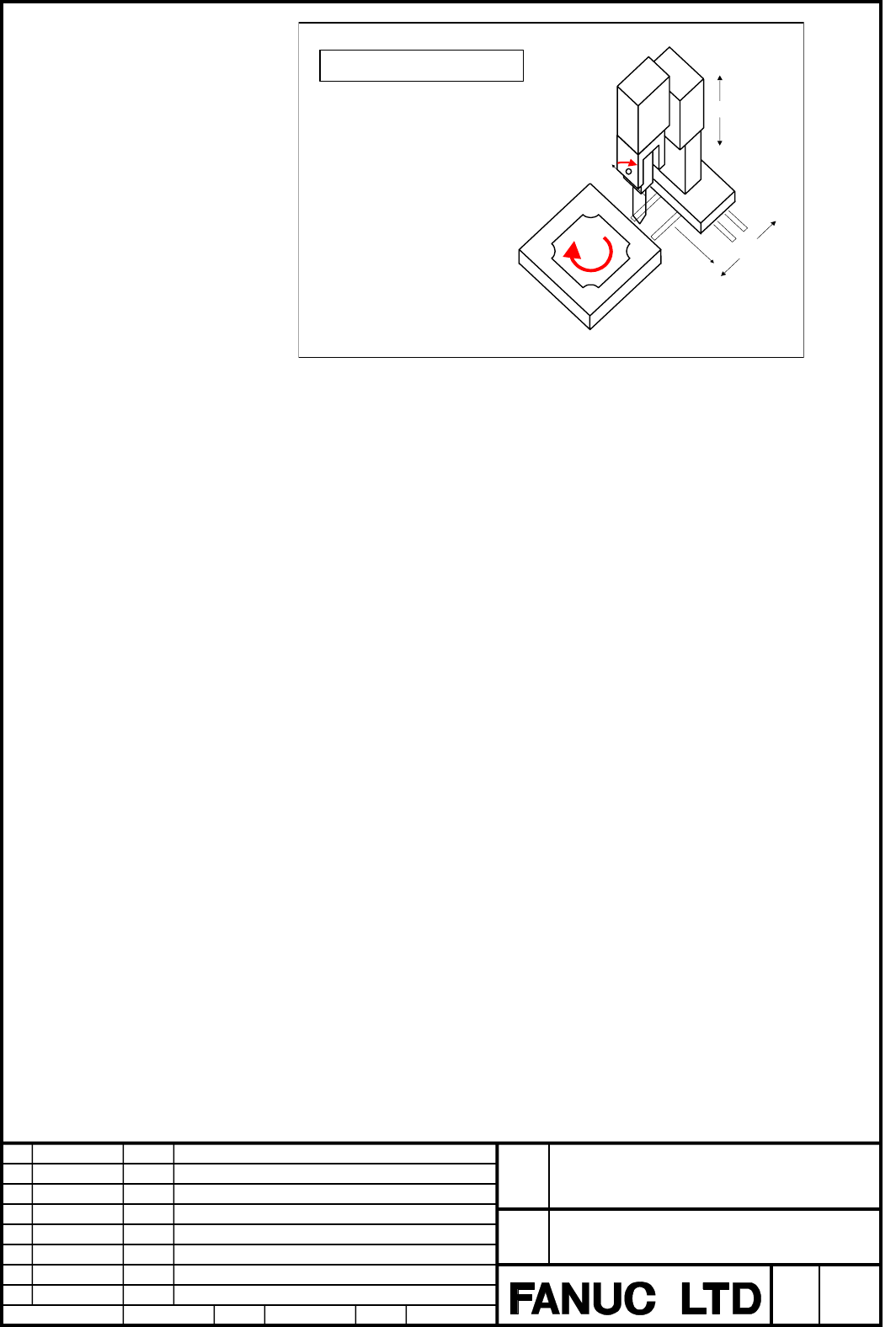

<3> Mixed-type machine
B
Y
X
Z
C
Fig.1.1
・Allowed functions
When the tool radius compensation for 5-axis machining is executed, the following
functions are allowed:
(1) Linear acceleration/deceleration before interpolation or bell-shaped
acceleration/deceleration before interpolation
(2) Deceleration function based on feedrate differences at corners
(3) Advanced feed-forward function
(4) Determing the feedrate with the cutting load
(5) Up to 200-block multi-buffer function
Note) At the time of using Risc board for high speed processing, Up to 600-block
With AI High Precision Countour Control or AI NANO High Precision Countour
Control option ordered, the following functions are allowed:
(1) Linear acceleration/deceleration before interpolation or bell-shaped
acceleration/deceleration before interpolation
(2) Deceleration function based on feedrate differences at corners
(3) Advanced feed-forward function
(4) Feedrate determination based on acceleration on each axis
(5) Determing the feedrate with the cutting load
(6) Up to 200-block multi-buffer function
Note) At the time of use of Risc board for high speed processing, Up to 600-block
(7) Jerk Control (The option of the Jerk Control is necessary)
