FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
19683 Angular angle when the first rotary axis is a angular axis
[Data type] 2 Word
[Unit of data]
increment system IS-B IS-C Unit
Data unit 0.001 0.0001 deg
[Valid data range] -99999999 ~ +99999999
When a value 1 to 3 is set in parameter No. 19682, set 0 degrees.
When a value 4 to 6 is set in parameter No.19682, specify the inclination angle.

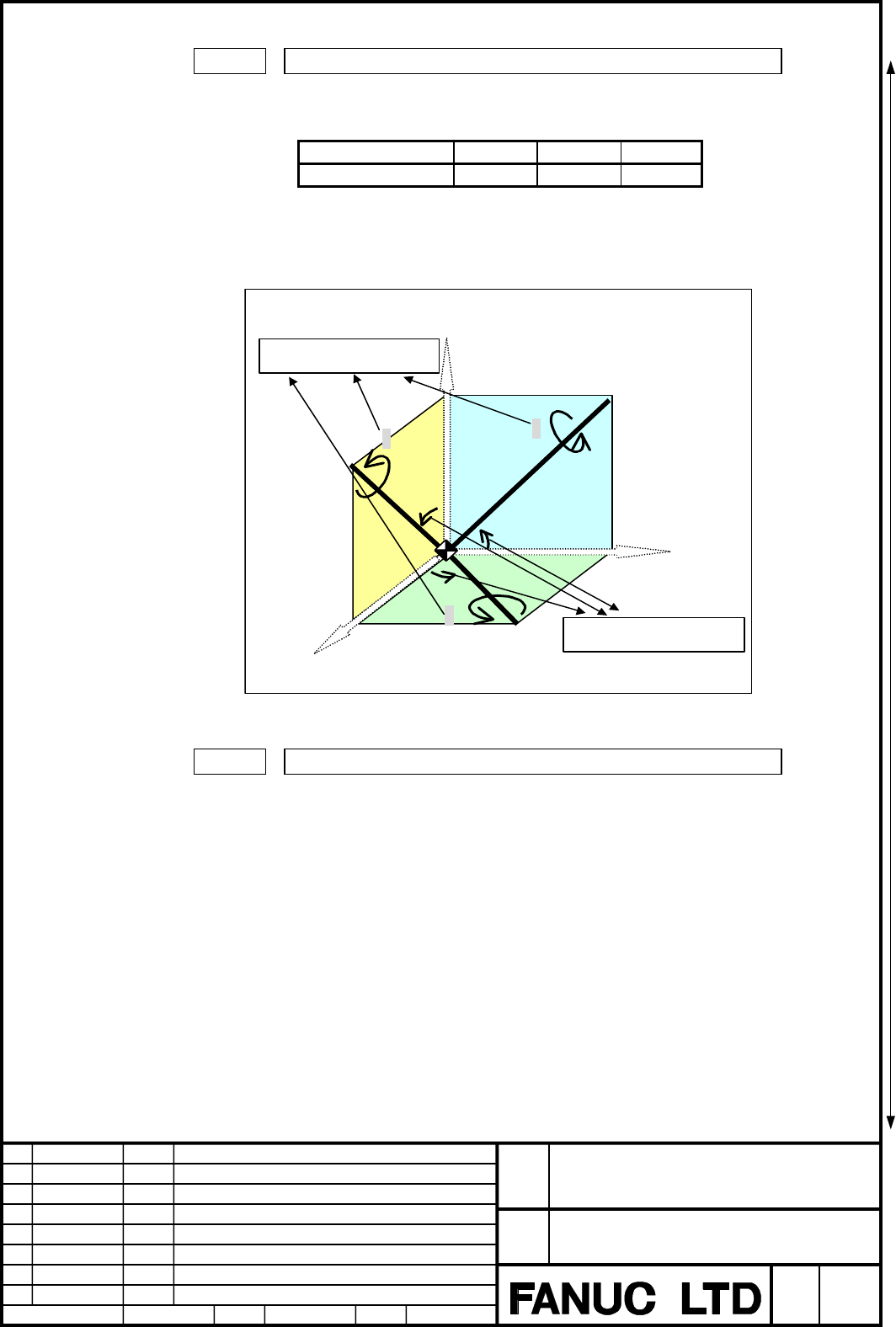

Parameter No.19682
Y
Z
X
5
4
6
Parameter No.19683
19684 Retraction direction for the first rotary axis
[Data type] Byte
[Valid data range] 0 ~ 1
Set the direction in which the first rotation axis rotates as a mechanical motion when
a positive move command is issued.
0: Clockwise direction as viewed from the negative to positive direction of the axis
specified in parameter No.19682 (right-hand thread rotation)
1: Counterclockwise direction as viewed from the negative to positive direction of
the axis specified in parameter No.19682 (left-hand thread rotation)
Normally, 0 is set for a tool rotation axis, and 1 is set for a table rotation axis.
4)
Previous page
Next page
