FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
19709 Intersection offset vector between the tool axis and tool rotation axis (X-axis
of the basic three axes)
19710 Intersection offset vector between the tool axis and tool rotation axis (Y-axis
of the basic three axes)
19711 Intersection offset vector between the tool axis and tool rotation axis (Z-axis
of the basic three axes)
[Data type] 2 Word
[Unit of data]
increment system IS-B IS-C unit
Millimeter machine 0.001 0.0001 mm
Inch machine 0.0001 0.00001 inch
[Valid data range] -99999999 ~ +99999999
Set these parameters when the tool axis and tool rotation axis do not intersect.
These parameters are valid when parameter No. 19680 is set to 2 or 21.
If parameter No. 19680 is 21, set the vector from point D on the tool axis to point E
determined on the tool rotation axis as the intersection offset vector in the machine
coordinate system when the rotation axes for controlling the tool are all at 0 degrees.
If parameter No. 19680 is 2, set the vector from point D on the tool axis to point E
determined on the second rotation axis of the tool as the intersection offset vector in
the machine coordinate system when the rotation axes for controlling the tool are all
at 0 degrees.

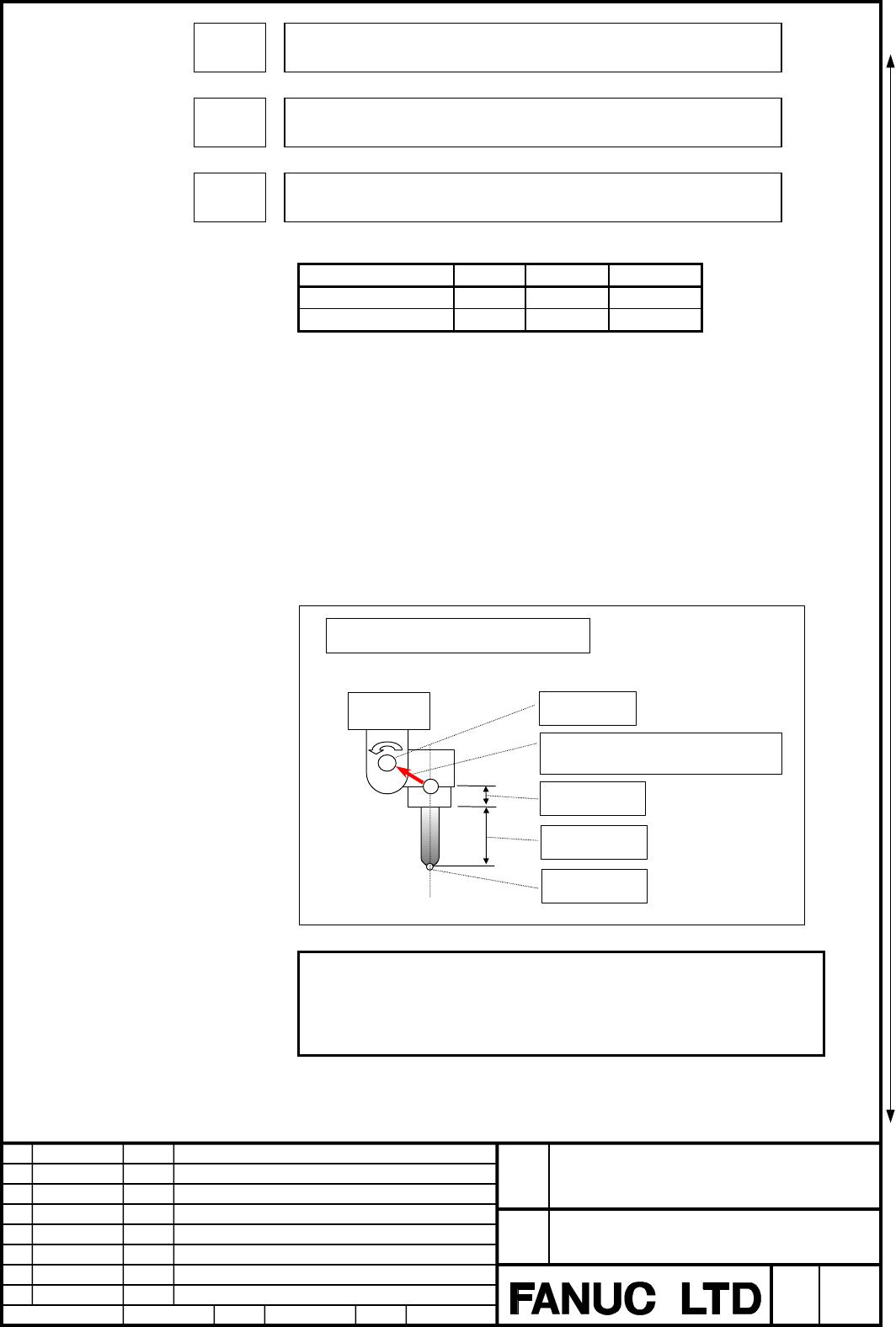

When tool axis and tool rotary axis do not intersect
Tool length offset
Tool holder offset
Intersection offset vector between tool axis and
tool rotary axis
D
E
Tool center point
Controlled point
Tool rotary
axis
NOTE
Point D is determined by adding the tool length offset and tool holder
offset (parameter No. 19666) to the tool tip.
As point E, set a position that is easy to measure.
5)
Previous page
Next page
