Series 16i Additional Manual Page 34

Additional Manual
34
/
88
A-78710E
Edit
Apprv. Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
3. Intersection offset for tool rotation type machine
General
When parameter No.19607#4 is set to 1, tool radius compensation for 5 axis
machining can be applied to the tool rotation type machine whose two rotary axes
don't intersected.
・Parameter example
In the machine explained in this example, the first, second, third, fourth, fifth, and
sixth axes are, respectively, X, Y, Z, A, B, and C.

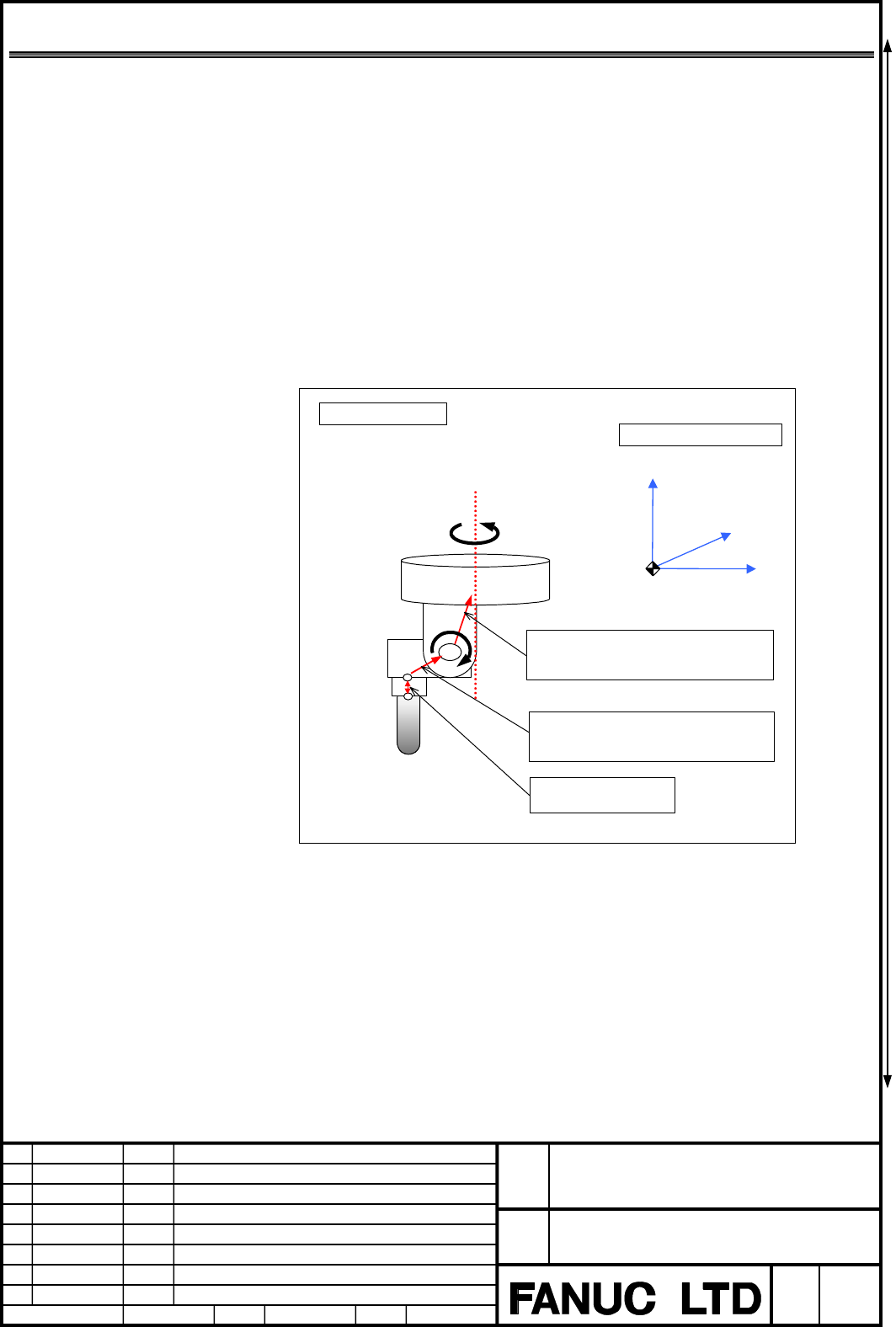

This is an example of setting parameters for the tool rotation type machine shown
below.
Rotary axis C is a tool rotation axis (master) around the Z axis.
Rotary axis B is a tool rotation axis (slave) around the Y axis.
Machine
coordinate Xm-Ym-Zm
C
Tool rotation t
yp
e
Intersection offset vector between the tool axis and
the second rotation axis of the tool
（PRM19709,19710,19711）
Tool holder offset value
（PRM19666）
B
Intersection offset vector between the second and
first rotation axes of the tool
（PRM19712,19713,19714）
Zm
Ym
Xm
In the tool rotation type machine shown above, if the machine coordinate system for
rotary axes B and C is at 0 degrees, assume:
Intersection offset vector between the tool axis and the second rotation axis of the
tool = (5.0,0,3.0)
Intersection offset vector between the second and first rotation axes of the tool
=(3.0,3.0,8.0)
Tool holder offset value = 2.0
The settings of the parameters for the table rotation type machine stated above are
as follows:
5)
