FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
Also tool radius compensation for 5 axis machining can be applied to the rotary table
type machine whose rotary axes are inclined to a X-Y plane, a Y-Z plane or a Z-X
plane of the machine coordinate system.(See.Fig4.2) Such rotary axis is called
inclined rotary axis here after.
The machine of the Fig.5.2 is composed of the rotary axis B (master) on the axis
which the Y-axis is inclined at -45 degrees in the Y-Z plane, and the rotary axis
C (slave) on the Z-axis.
Table rotation type machine
B
Z
Y
X
Workpiece
coordinate system
C

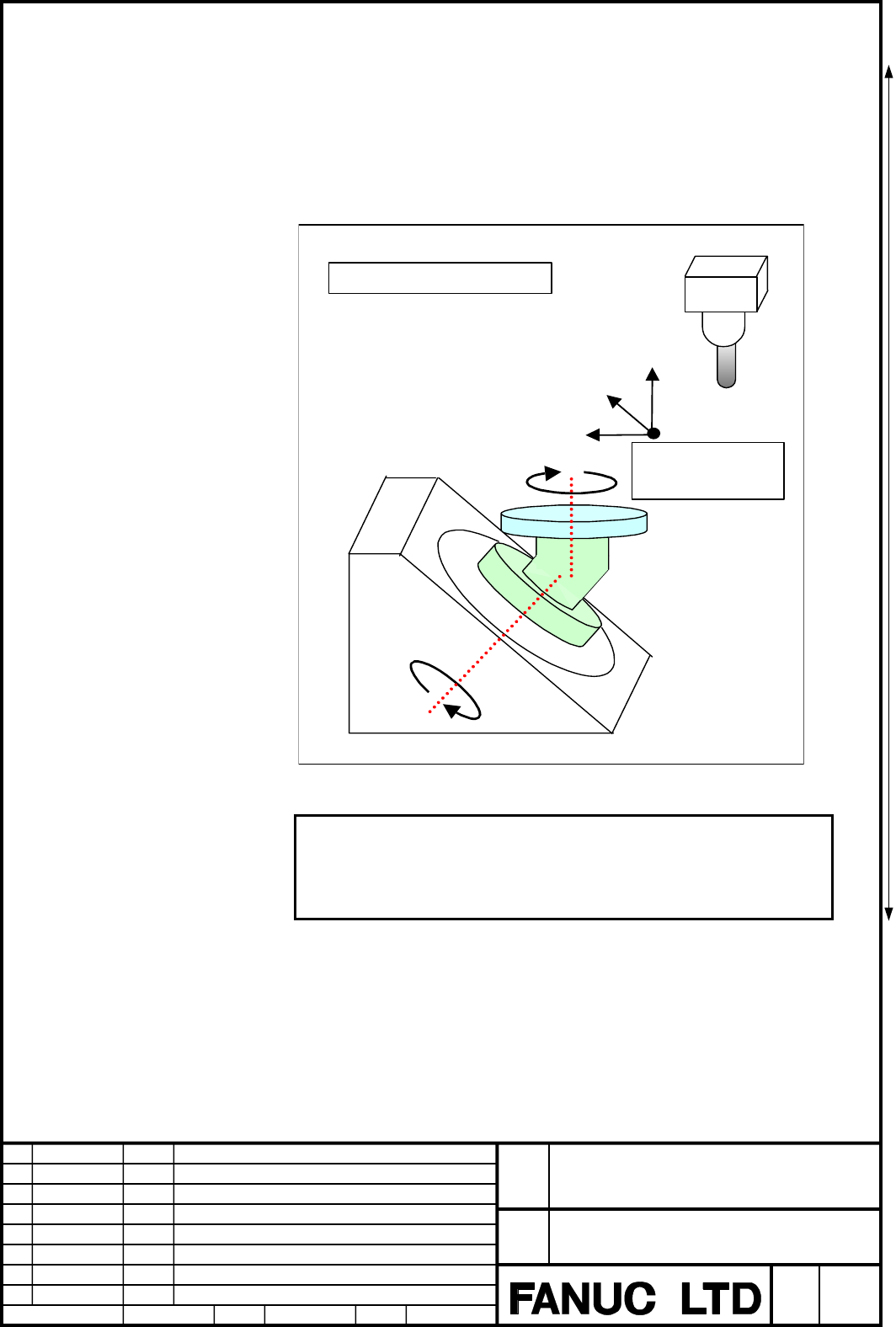

Fig.5.2 Machine with inclined rotary axis
NOTE
In case the machine which has inclined rotary axes like Fig.5.2, “Inclined
rotary axis control” option is necessary in order to use “Tool radius
compensation for 5 axis machining” function.
