FANUC Series 16i –MB, 18i –MB5
Tool Radius Compensation For 5-Axis
machining Specifications
Dec.01.2001
02 Mar.22.2002
T.Mochia All revision
H.Kouzai
Sheet
T.Mochida H.Kouzai
03 Mar.28.2003
MTanaka All revision H.kouzai
04 Aug.05.2003
T.Horie Intersection offset, G-code unification add. H.kouzai
05 Jun.02.2004 Intersection offset(tool rotation type, Mixed type)
6. Tool Radius Compensation for Mixed-type machine
General
This function can perform cutter compensation in a 5-axis machine having a rotary
table and a tool axis as shown in the figure below.
Shown below is a 5-axis machine that has tool axis A on the X-axis (the tool axis
direction is along the Z-axis) and table rotation axis B on the Y-axis.
This machine configuration is used as a sample configuration in the following
explanation unless otherwise noted:
X
Y
Z
Workpiece coordinate system
Workpiece coordinate system: Coordinate system with
which a program is to be created
C
Z
+-
X
+
-
Y
+
-
A

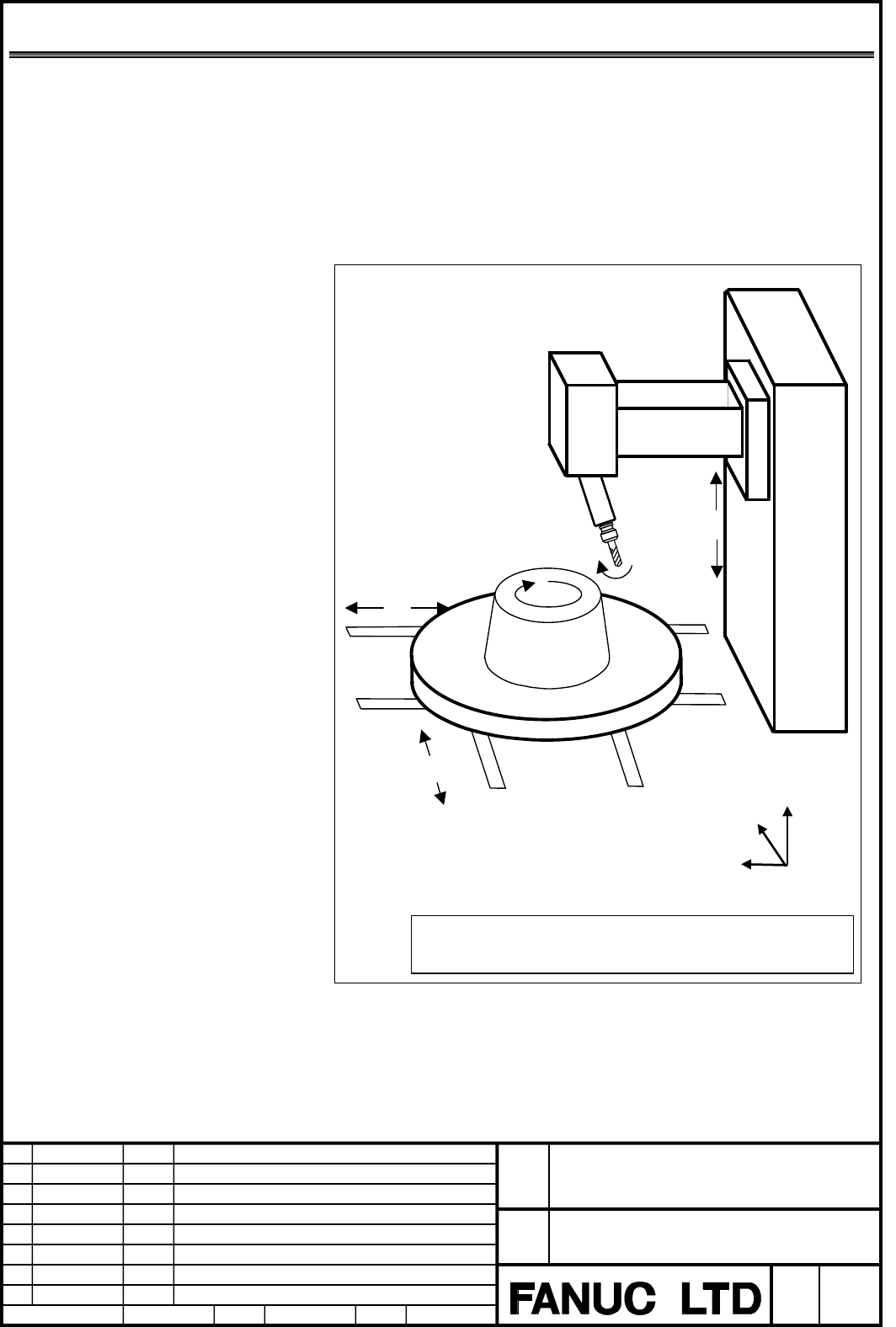

Fig.6.1 Machine having rotary tool axis and rotary table axis
