4. SERVO FUNCTION DETAILS B-65150E/04

− 156 −

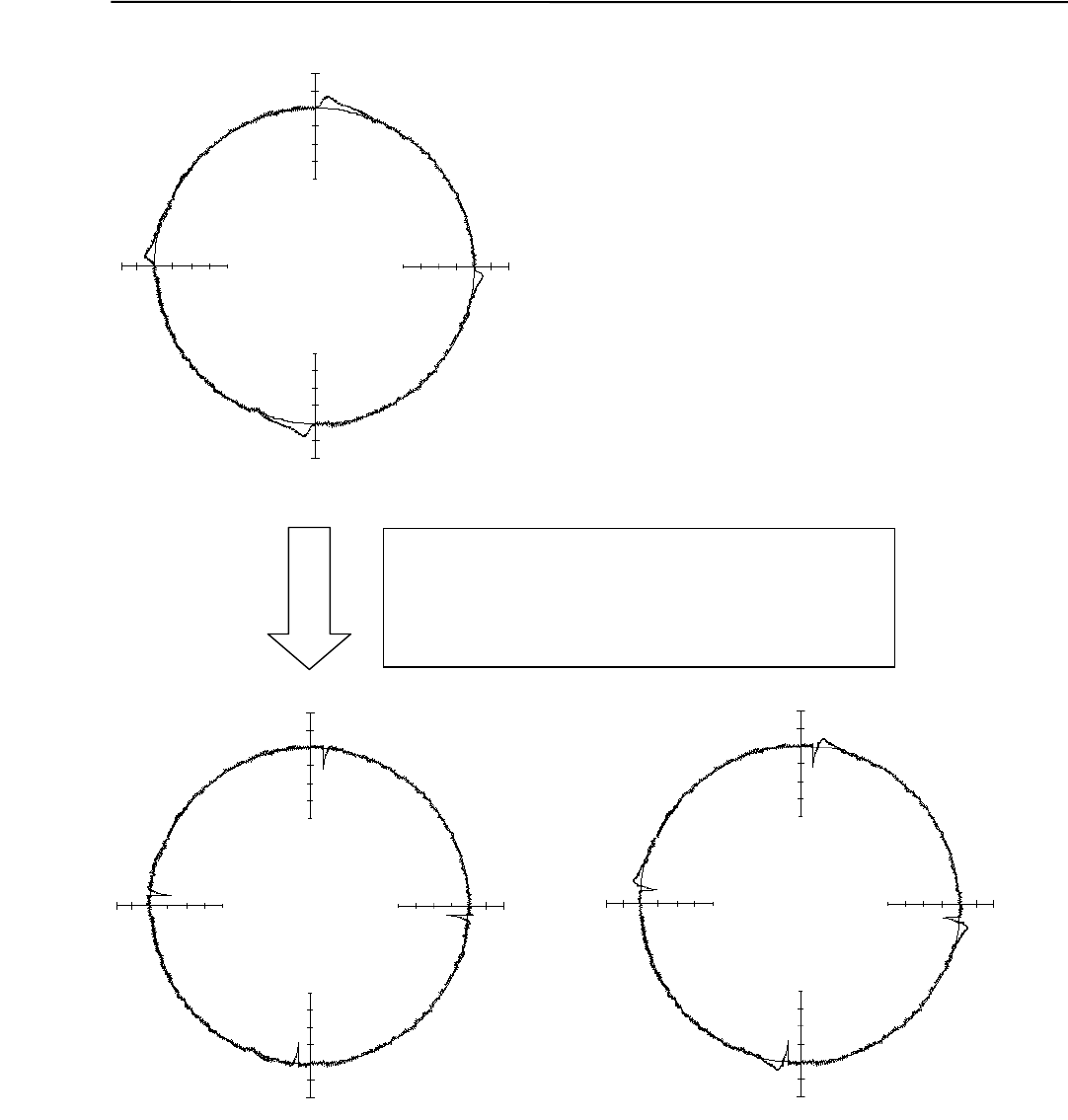

Before start/end parameter adjustment

Start/end parameter (adequate) Start/end parameter (insufficient)

(A larger stage 2 acceleration amount is set to view (The time for stage 2 acceleration is too short,

the timing of stage 2 acceleration, so that cuts occur. so that stage 2 protrusions are not fully eliminated.)

This is corrected later.)

Fig. 4.6.5 (e) Two-stage backlash acceleration (start/end parameter adjustment)

Set the following:

Start/end parameter = Value of [Typical setting]

Stage 2 acceleration amount = 500

Then, adjust the start/end parameter while viewing the timing

of stage 2 acceleration from the arc figure.
