4. SERVO FUNCTION DETAILS B-65150E/04

− 284 −

(5) VCMD signal

When the feed-forward function is not used, the VCMD signal conveys

a velocity command.

With this signal, it is possible to measure very slight vibration in the

motor and its motion irregularity.

When the feed-forward function is used, the VCMD signal represents a

positional deviation rather than a velocity command. So the signal can

be used to measure vibration in the motor and irregularity in the feed

distance of the tool driven by the motor.

The signal conversion type for the VCMD signal can be switched using

parameters.

This switching is used, if the signal waveform is hard to observe

because of the VCMD signal being reciprocating within ±5 V.

#7 #6 #5 #4 #3 #2 #1 #0

1956 8X12 VCM2 VCM1

2012 1012

Parameters for rotational motor

VCM2 VCM1 Specified rotation speed/5 V

0 0 0.9155 rpm

0 1 14 rpm

1 0 234 rpm

1 1 3750 rpm

Parameters for linear motor

VCM2 VCM1 Specified velocity/5 V

0 0 0.075 m/min

0 1 1.2 m/min

1 0 19.2 m/min

1 1 307.2 m/min

Using an oscilloscope to see the movement of the entire signal in DC

mode, then its magnified image in AC mode enables you to check very

slight vibration in the motor and its motion irregularity.

DC mode

AC mode

Enlarged

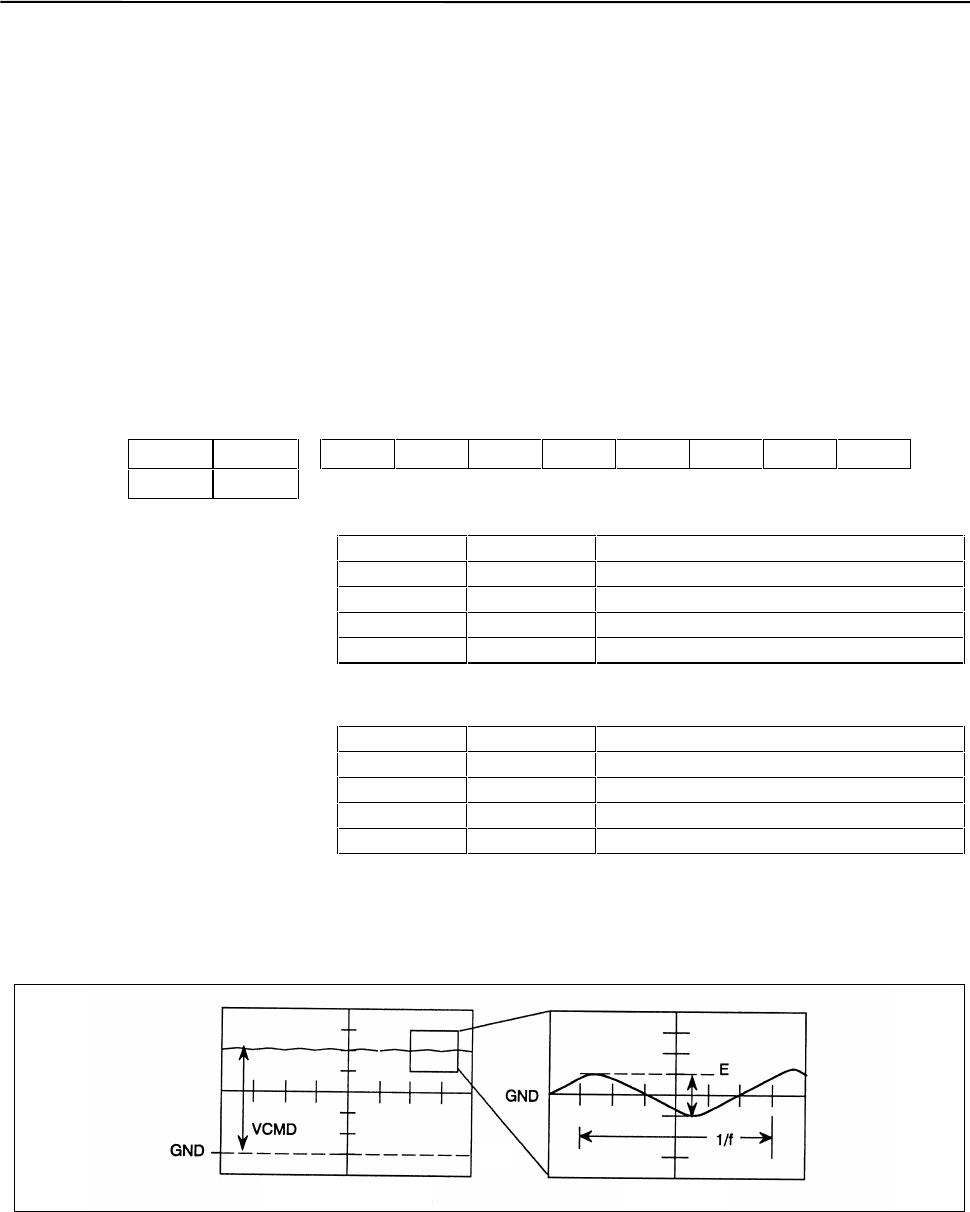

Fig. 4.19 (d) Waveform of the VCMD signal
