B-65150E/04 3. α SERIES PARAMETER ADJUSTMENT

− 87 −

3.4.5 Rapid Traverse Positioning Adjustment Procedure

(1) Overview

The fine acceleration/deceleration function applies a filter to each axis

in the servo software to reduce a shock associated with

acceleration/deceleration. By combining the fine

acceleration/deceleration function with feed-forward, high-speed

positioning can be achieved in rapid traverse. This section describes

rapid traverse positioning adjustment.

(2) High-speed positioning by a combination of fine acceleration/deceleration

and feed-forward

(Rapid traverse positioning when fine acceleration/deceleration is

not used)

A servo loop not performing feed-forward has a delay equivalent to a

position loop gain. The time required for positioning after completion

of distribution from the CNC is four to five times the position gain time

constant (33 ms for 30 [1/s]) (133 to 165 ms for a position gain of 30).

In normal rapid traverse, rapid traverse linear acceleration/deceleration

(Fig. 3.4.5 (a)) is used, so that acceleration changes to a large extent at

the start and end of acceleration. However, since feed-forward is not

used, acceleration change is made moderate by a position loop gain,

and a shock does not occur.

If a low linear acceleration/deceleration time constant is set for high-

speed positioning, and a high position gain and feed-forward are set,

the time required for positioning is reduced, but a shock occurs. In this

case, a shock can be reduced by setting rapid traverse bell-shaped

acceleration/deceleration (optional function) (Fig. 3.4.5 (b)).

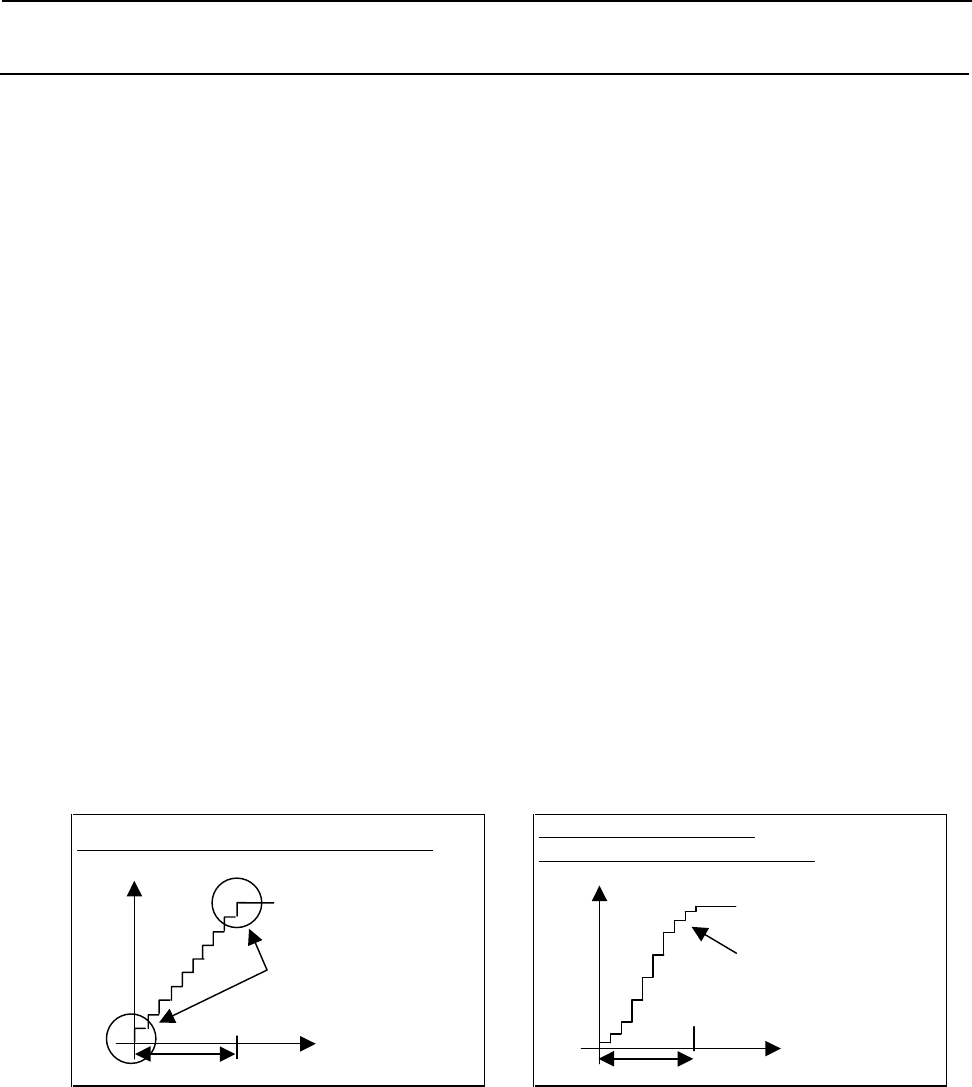

Fig. 3.4.5 (a) Rapid traverse linear

acceleration/deceleration

Fig. 3.4.5 (b) Rapid traverse bell-shaped

acceleration/deceleration

Rapid traverse linear time constant (T1) only

Rapid traverse bell-shaped

acceleration/deceleration (T1+ T2)

Feedrate

Time

Acceleration change is

large, so a shock tends

to occur. Feed-forward

cannot be applied.

Feedrate

Time

Acceleration change is

reduced.

T1 + T2
