3. α SERIES PARAMETER ADJUSTMENT B-65150E/04

− 40 −

PARA

SERVICE

PAGE

3.1 SERVO ADJUSTMENT SCREEN

Display the servo adjustment screen, and check the position error,

actual current, and actual speed on the screen.

Using the keys on the NC, enter values according to the procedure

explained below.

(The Power Mate DPL/MDI does not provide the servo adjustment

function.)

 Series 0-C

Press the key several times to display the servo setting screen.

Then press the page keys to display the servo

screen.

If the servo setting screen does not appear, set the following parameter,

then switch the NC off and on again.

#7 #6 #5 #4 #3 #2 #1 #0

0389 SVS

SVS (#0) 0: Displays the servo screen.

 Series 15-A, B, and 15i

Press the key several times to display the servo setting

screen. Then press the key to display the servo adjustment

screen.

 Series 16, 18, 20, and 21

→ [SYSTEM] → [ ] → [SV-PRM] → [SV-TUN]

If the servo screen does not appear, set the following parameter, then

switch the NC off and on again.

#7 #6 #5 #4 #3 #2 #1 #0

3111 SVS

SVS (#0) 1: Displays the servo screen.

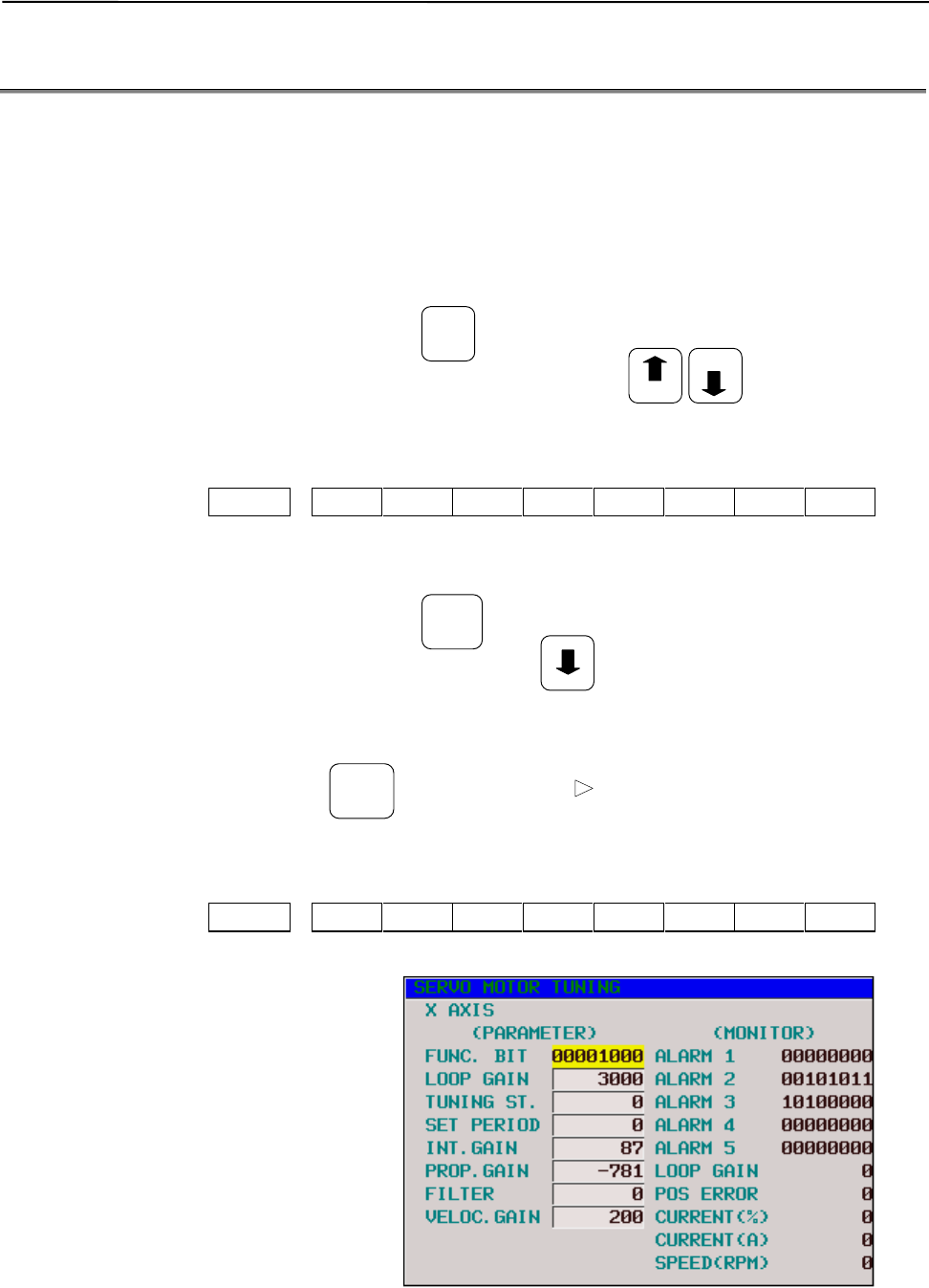

Fig. 3.1 (a) Diagnosis screen

SYSTEM

PAGE

<1>

<2>

<3>

<4>

<5>

<6>

<7>

<8>

<9>

<10>

<11>

<12>

<13>

<14>

<15>

<16>

<17>

<18>
