3. α SERIES PARAMETER ADJUSTMENT B-65150E/04

− 90 −

<2> Velocity feed-forward adjustment

When feed-forward is enabled, the time required for positioning

can be reduced, but a swell may occur due to insufficient velocity

loop response immediately before machining stops. A swell can

be reduced by an increased velocity loop gain, but there is an

upper limit on the velocity loop gain. So, adjust the velocity

feed-forward coefficient to reduce a swell for positioning time

reduction.

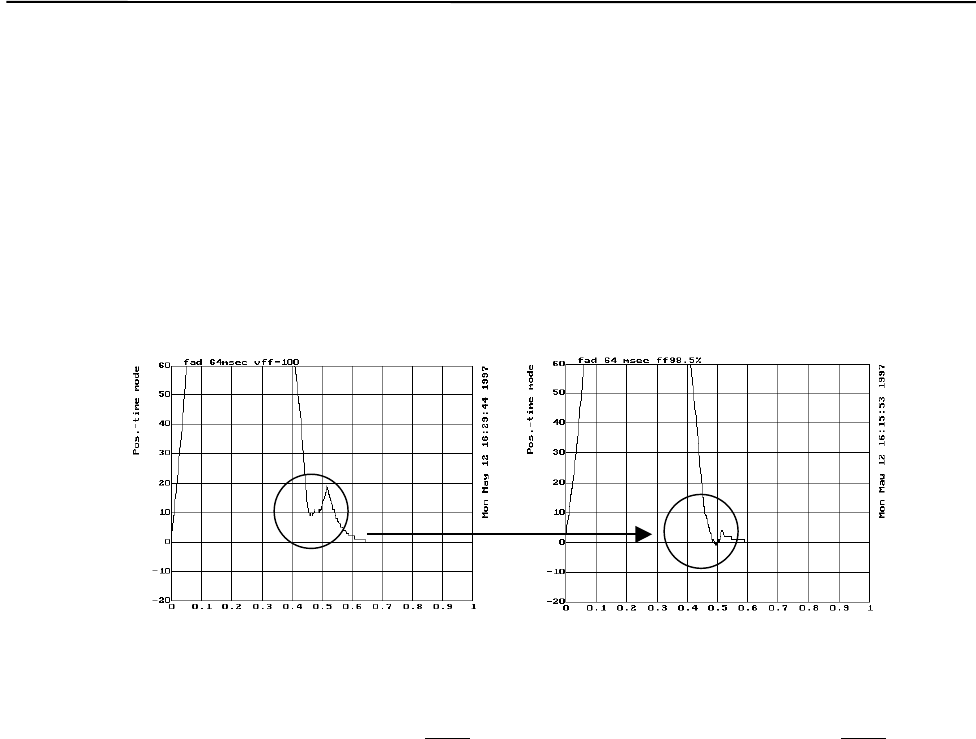

The default settings cause a swell immediately before machining

stops (Fig. 3.4.5 (f)). The swell can be reduced by increasing the

velocity feed-forward coefficient (Fig. 3.4.5 (g)).

Fig. 3.4.5 (g) After velocity feed-forward

adjustment

FAD: 64 ms

Feed-forward: 98.5%

Velocity feed-forward coefficient: 250%

Fig. 3.4.5 (f) Before velocity feed-forward

adjustment

FAD: 64 ms

Feed-forward: 98.5%

Velocity feed-forward coefficient: 100%

An optimum is

achieved

when the swell

here is

reduced.

A swell is

observed

immediately

before

machining stops.
