4. SERVO FUNCTION DETAILS B-65150E/04

− 288 −

<2> To change the type of data to be measured and the unit of

conversion for it, press the F9 key on the main screen to display

the system setting screen.

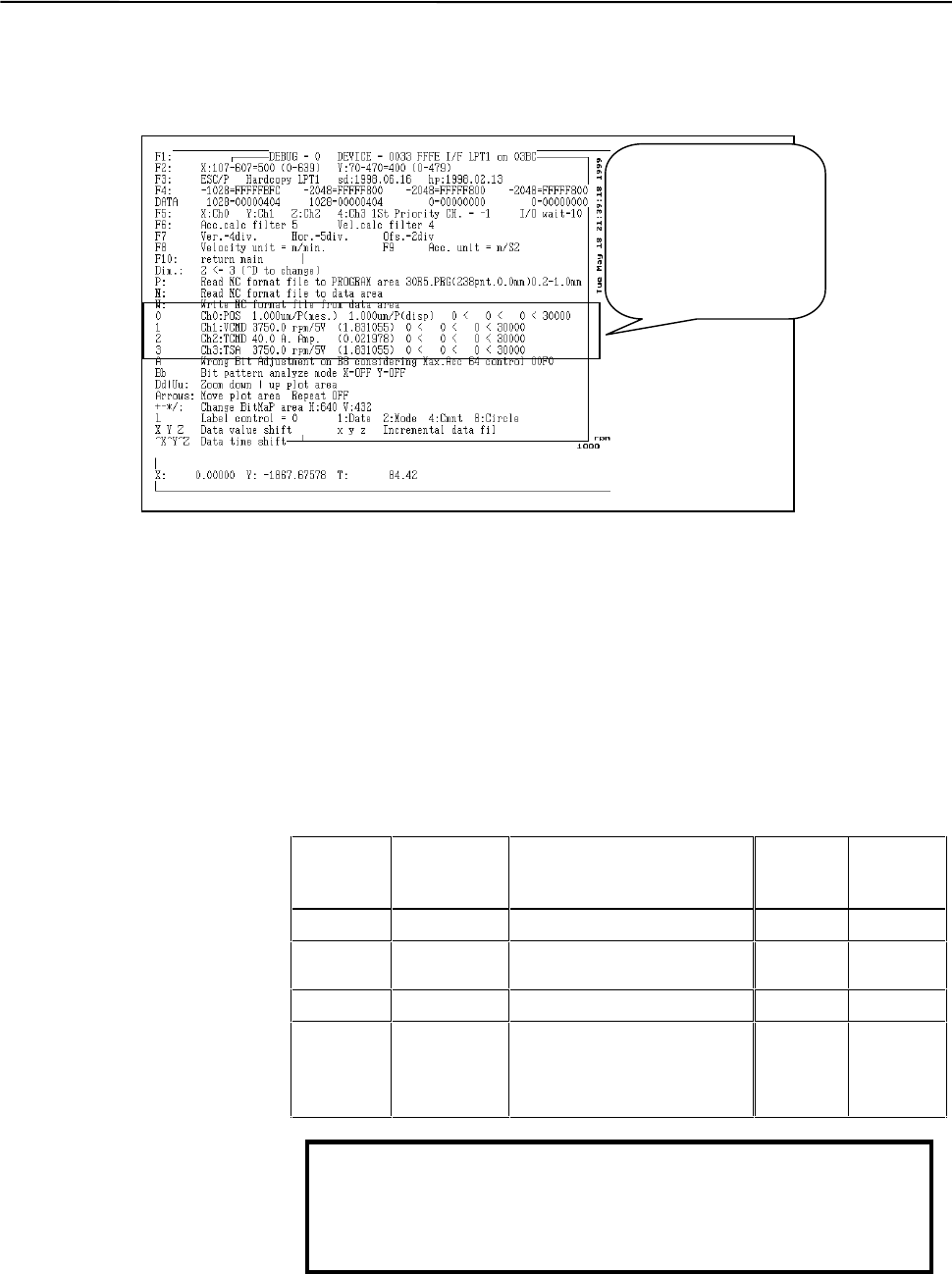

Fig. 4.19 (f) System setting screen

Data output on CH1 to CH4 of the check board corresponds to channels

0 to 3 on the SD software. To change the setting, press numeric key 0

to 3. Select a data type (0: position, 1: velocity command, 2: torque

command, 3: rotation speed) from the display at the bottom of the

screen, then specify the unit of conversion for the data.

Conversion values (except for position data) can be set up according to

descriptions in (5) to (7).

Table 4.19 (g) Meaning of measurement data conversion values and

example setting

Type

Display at

the bottom of

the screen

Meaning of conversion

values

Example

Input

value

POS

1 pulse = X? Detection unit (in mm units) 1 µm 0.001

VCMD

5 V = X rpm? What rpm corresponds to

VCMD of 5 V?

VCM2 = 1

VCM1 = 1

3750

(Note)

TCMD

X Ap. Amp.? Maximum amplifier current (A) 40 A 40

SPEED

(number of

revolutions)

5 V = X rpm? What rpm corresponds to

SPEED of 5 V?

− Constantly

3750

(rotational

motor)

To exit the system setting screen, press the F10 key.

Use numeric keys 0 to

3 to specify a signal to

be observed on each

measurement channel

and a unit conversion

for it.

NOTE

To observe the VCMD signal as the number of

positional deviation pulses, input conversion values

listed in Tables 4.19 (c) to (e).
