B-65150E/04 4. SERVO FUNCTION DETAILS

− 257 −

4.17.7 Full Preload Function

(1) Overview

In tandem control, special preload torques of opposite directions, as

shown in Fig. 4.17.7 (a), are applied to the main motor and sub-motor

to establish tension in the system.

With these special torques, the rack and pinions can be kept in tension

at all times, as shown in Fig. 4.17.7 (b). This function is referred to as

the full preload function.

However, this function is basically designed to be used together with

the position feedback switch function. So, it is supported by the

following editions in the Series 16. For the Series 15, there is no

limitation on the supporting editions.

16i-MA: B0F1/13 16i-TA: B1F1/12 18i-MA: BDF1/13

18i-TA: BEF1/12

16-MC: B0B1/20 16-TC: B1B1/17 18-MC: BDB1/18

18-TC: BEB1/18

Sub-motor

Output torque

Input torque

PL (main)

Main motor

PL (sub)

drive

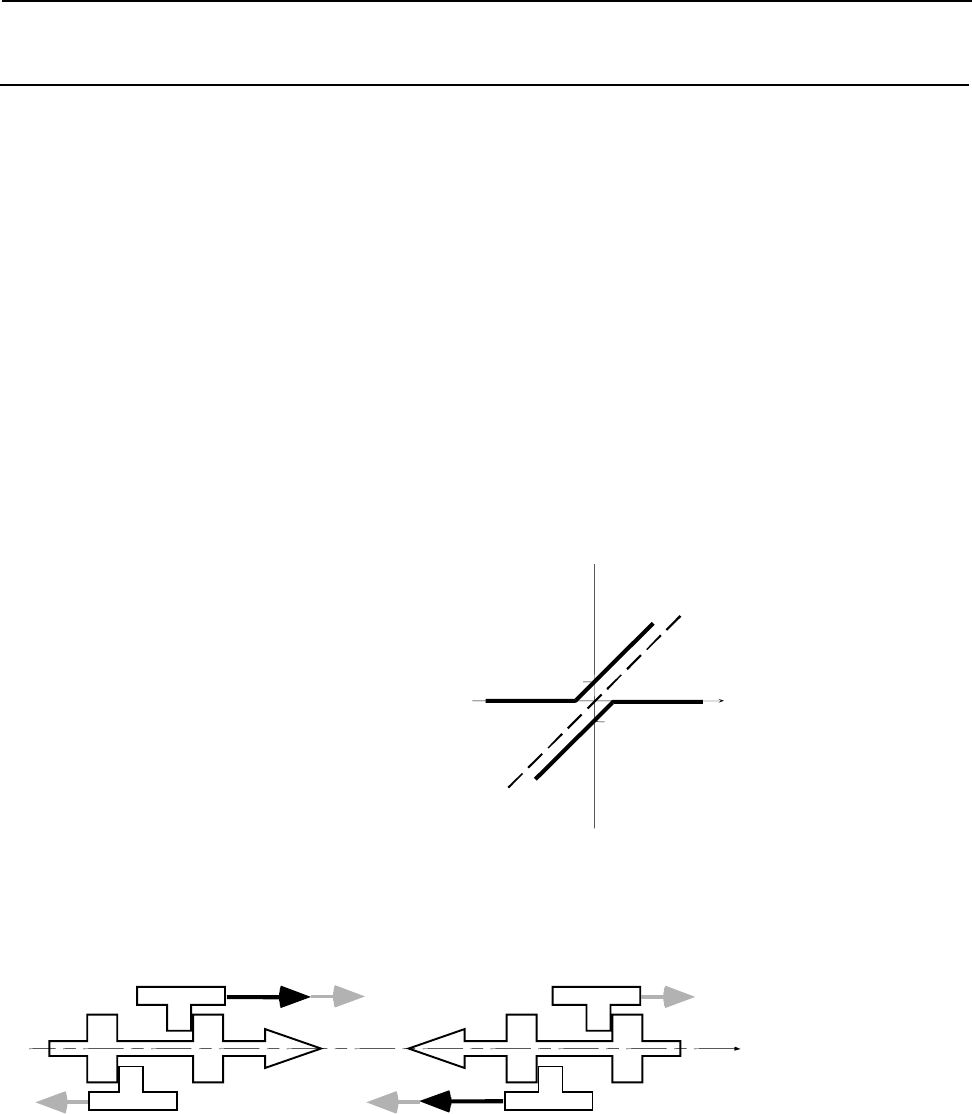

Fig. 4.17.7 (a) Full preload function

Drive + PL

−PL

− (Drive + PL)

Rack (machine table)

Main side

Sub

Fig. 4.17.7 (b) Relationship between full preloads and backlash (conceptual)
