FANUC AC Servo Software 90D3 Series, 90E3 Series Learning FUNCTION, Operator Additional Manual Page 32

Additional Manual
Title 90D3 / 90E3
Learning Control Operator’s Manual
Draw No.
A - 63639E - 108
01 ‘05.04.20 N.Sonoda Newly designed Sheet 032
Edit Date Design Description
/ 064

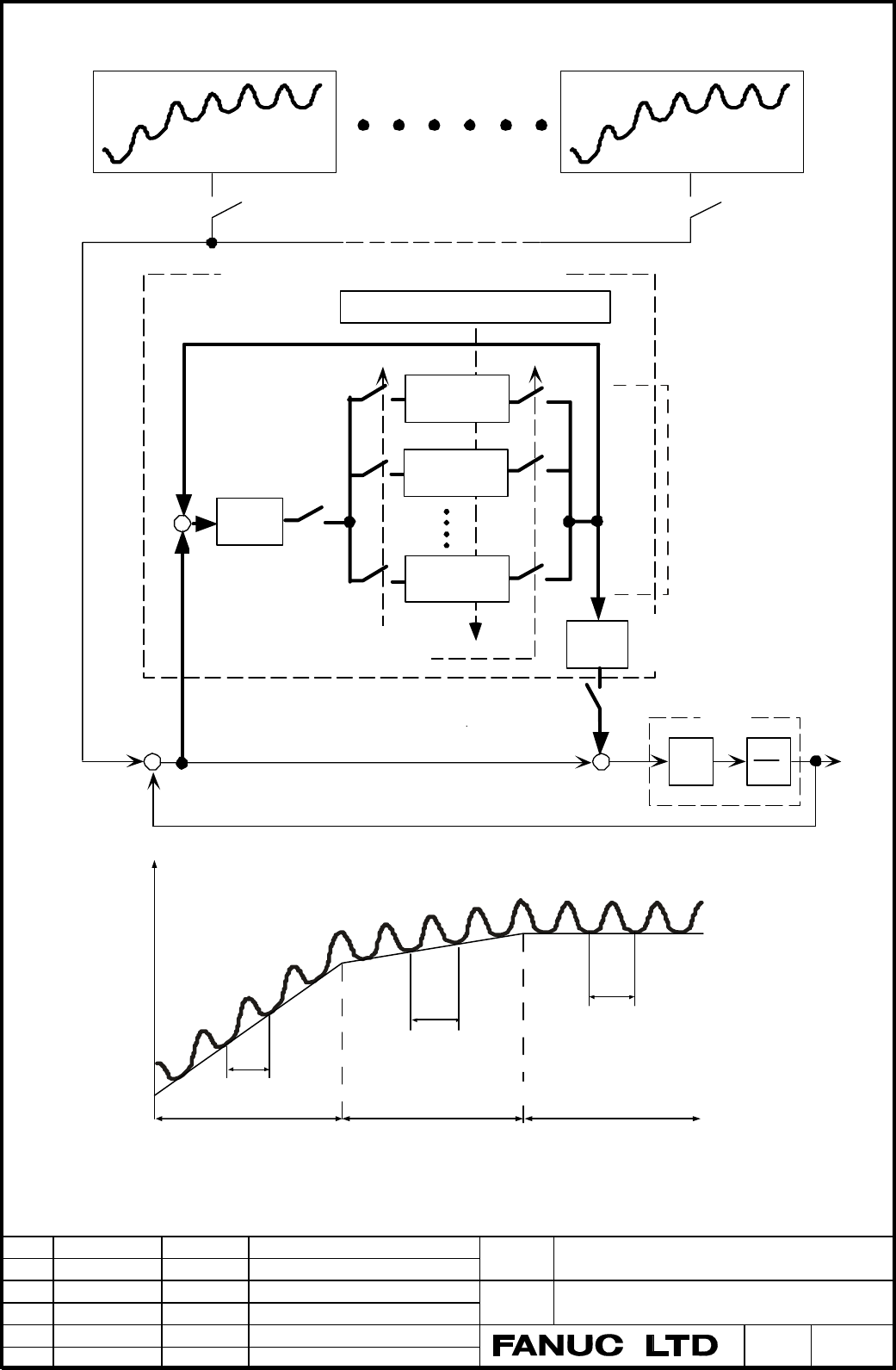

Fig.6-1 (1) Learning control block diagram
Fig.6-1 (2) Processing chart (Learning Step)
F(z
-1
)
Kp
Profile 1
Command
P
r
o
f
ile 5
Command
Learning Controller
Go(s)
Gx(z)
Memory clear switch (MC)
G05
G05
Profile 1
(Memory)
Position Error
G05
Command
Feedback
Profile 2
(Memory)
Profile 5
(Memory)
+
+
1
s
+
+
+
-
Low pass filter
No.2512
Suspension
(LCON)
Profile number
No.2511
SLEN
All profile number
No.2510
When ICM=0, MC is
available at time of
G05 finish.
Dynamic characteristic
compensation
No.2526 - No.2533
Control subject
1st. Learning
No.2516
2nd. Learning
No.2518
3rd. Learning
No.2520
Processing chart
L1
No.2517
L2
No.2519
L3
No.2521
L1,L2,L3 : C-axis rotation period
