  2. FANUC AC Servo Software 90D3 Series, 90E3 Series Learning FUNCTION, Operator

FANUC AC Servo Software 90D3 Series, 90E3 Series Learning FUNCTION, Operator Additional Manual Page 37

Additional Manual
Title 90D3 / 90E3
Learning Control Operator’s Manual
Draw No.
A - 63639E – 108
01 ’05.04.20 N.Sonoda Newly designed Sheet 037
Edit Date Design Description / 064

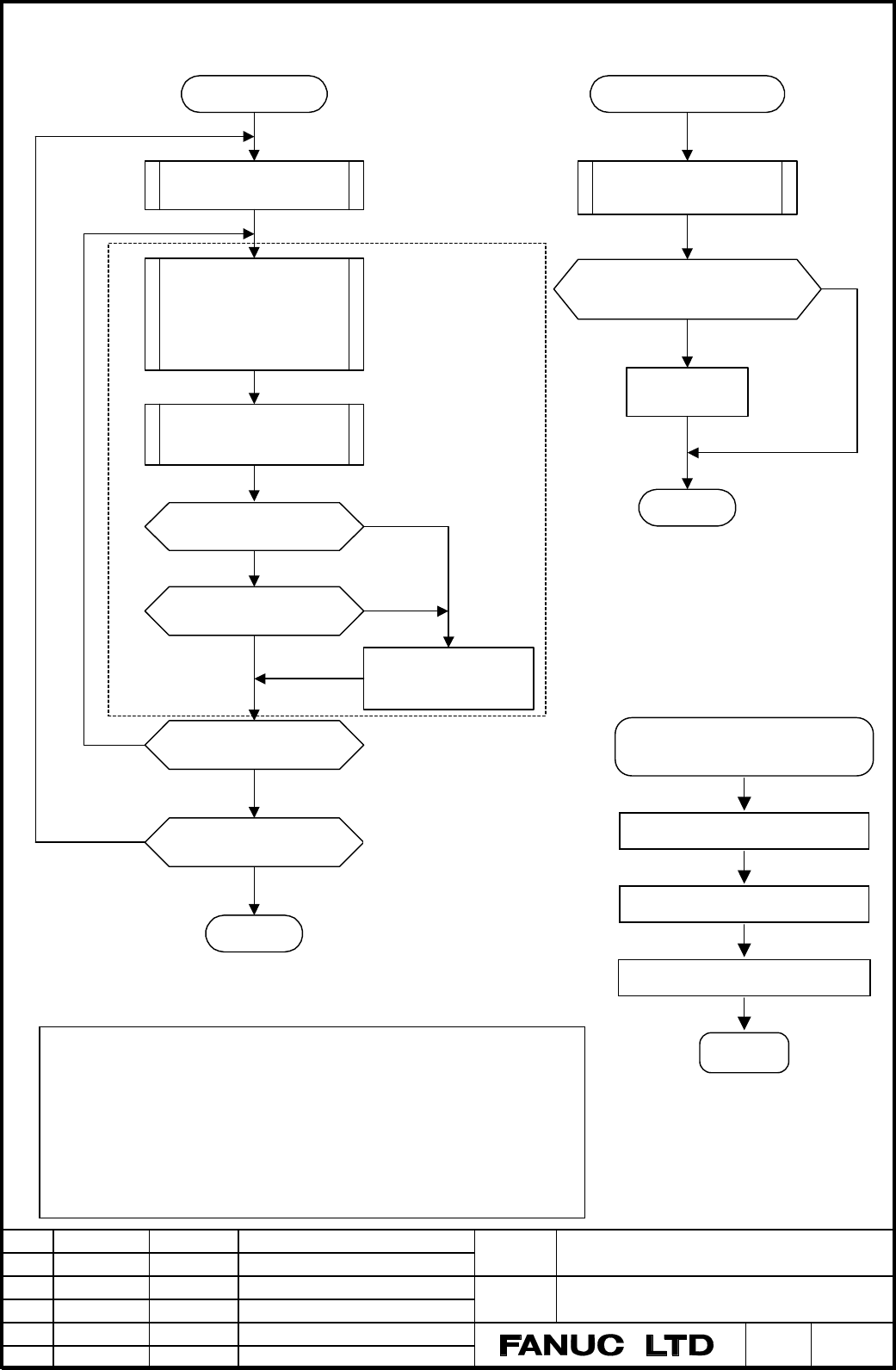

7.1.2 Processing flow
Grinding start
Select Grinding program
Set
Profile number,
Command data period,
Repetition count,
Memory clear bit
etc.
High speed cycle cutting
executes, and finishes
Clear out the learning
buffer according to
profile number
end
G10
G05
Yes
No
Yes
Yes
No
No
Compensation
mode ?
Do you grind
next cam ?
Do you grind next
cam shaft ?
∗
memory clear bit ?
No
Yes
♦ When Total profile number is changed
or Compensation data mode is invalid,
all learning memory is cleared.
Note
Set 0 for the Repetition count and Command
data period of Learning steps you don’t use.
♦ According to detail,
refer to 3.3 Cam
grinder.
How much time is necessary to clear all Learning memory?
• 90D3 ------ 2.3 seconds (Regardless of HRV3, HRV4)
• 90B3, 90B7 ------ 2.0 seconds
Clear time is 9.0 sec. at HRV3, 18.0 sec. at HRV4.
If G05 is executed before finishing memory clear, illegal servo
parameter setting alarm occurs. In order to avoid the alarm, please
confirm the following signal before starting G05.
F322 : getting 1 during memory clear
Clear out all
learning buffer
G10
No
Yes
Change Total profile number
or ?
Compensation mode invalid
∗
Grinding condition change
Set Total profile number
according to camshaft
end
♦ After clear, profile clear bit
(No.2226#6) is reset automatically.
Don’t set profile clear bit in G10.
How to clear out the learning
memor
y
for s
p
ecified
p
rofile.
Set profile number
Set profile clear bit
Clear out for specified profile
End
