FANUC AC Servo Software 90D3 Series, 90E3 Series Learning FUNCTION, Operator Additional Manual Page 7

Additional Manual
Title
90D3 / 90E3
Learning Control Operator’s Manual
Draw No.
A - 63639E – 108
01 ’05.04.20 N.Sonoda Newly designed Sheet 07
Edit Date Design Description / 064
3.2 Piston Lathe
* Cutting Sequence
(1) The piston outline is finished by rotating C-axis moving the tool back / forth along Y-axis. By feeding the
tool along the Z-axis, the cylindrical piston is gradually cut.
(2) Both Y-axis and C-axis are used either Suspension mode or Continuation mode of Learning control.
When the command of Y-axis gradually changes, Y-axis should be used Continuation mode of Preview
repetitive control. If the changing rate of the command is small, you might be able to get the sufficient
accuracy with Continuation mode only.
Oval cross Section
Z axis
Piston axis
Double slide mechanism
Piston Work

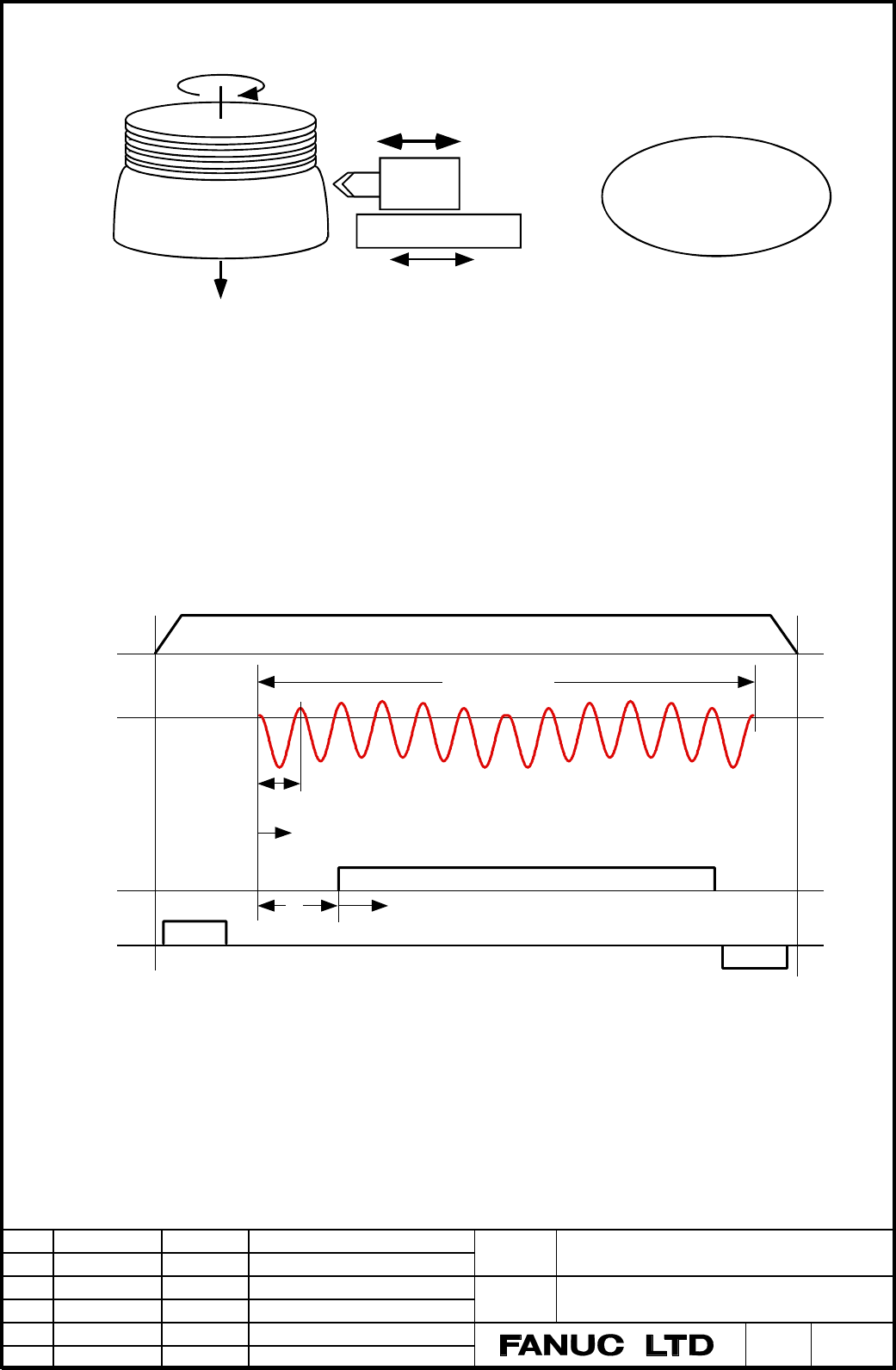

Fi
g
. 3.2.1 Confi
g
u
r
ation example o
f
piston lathe
Y axis
X axis
C axis
Y axis
Z axis
X axis
G05 endG05 start
Approach
Retract
Command data period PRIOD
Y axis Learning start
Cutting start
Ly should be longer than the the time the
learning complete to minimize the error.
Fig. 3.2.2 Movement of the tool along each axis when processing
Ly
Repetitive count
RPTCT
C-axis
