2. System Configuration
There are three below cases about High-speed cutting (G05). Fig.2-1 shows a system configuration.
(1) Memory operation by High-speed cycle cutting
a) Produce cutting data by Open CNC or personal computer and down load to P-code area in CNC.
b) Produce cutting data by Macro executor and write to P-code area.
After cutting data was prepared by personal computer or Open CNC.
(2) Data Server operation by High-speed binary operation
c) Produce cutting data by Open CNC or personal computer and down load via Ethernet to Data server
and run Data Server by High-speed binary operation.
(3) DNC operation that Open CNC or personal computer run directly CNC through HSSB
d) User’s program including DNC operation library.
e) DNC operation management package in BOP2 (Basic Operation Package 2).
Note
In case of (3), there is a possibility that transmission rate isn’t always guaranteed due to the
personal computer performance. If you need to have the transmission rate guaranteed, you
should select the method of c).
You can switch the Memory operation and either Data Server operation or DNC operation in one
system. You can switch two operations by G05 code or M198 code in your cutting program.
The call of binary program from Data server is available with M198 code, not M98 code.
In case of Memory operation, you can use “High-speed cycle skip function” or “High-speed cycle
retract function”. In case of (2) or (3), you can use “High-speed binary retract function”, but you
can’t use “High-speed binary skip function”.
In case that you store Learning data and recycle it, refer to 7.2 Learning data transmission
function.
Personal Computer
Producing cutting data
Flash memory card
(Binary data)
c
)
Ethernet
Learning
control
Digital Servo
Software
Data Server
Binary Op.
P-code variables
Memory Op.
Series 30
i
(NC Software)
a
)
HSSB
G05
d) HSSB
(DNC)
Macro executor
b)
User Program
(+Library by Fanuc)
User Program
(Parts Prog. Oxxx)
(1)
(2)
(3)
Position
Command

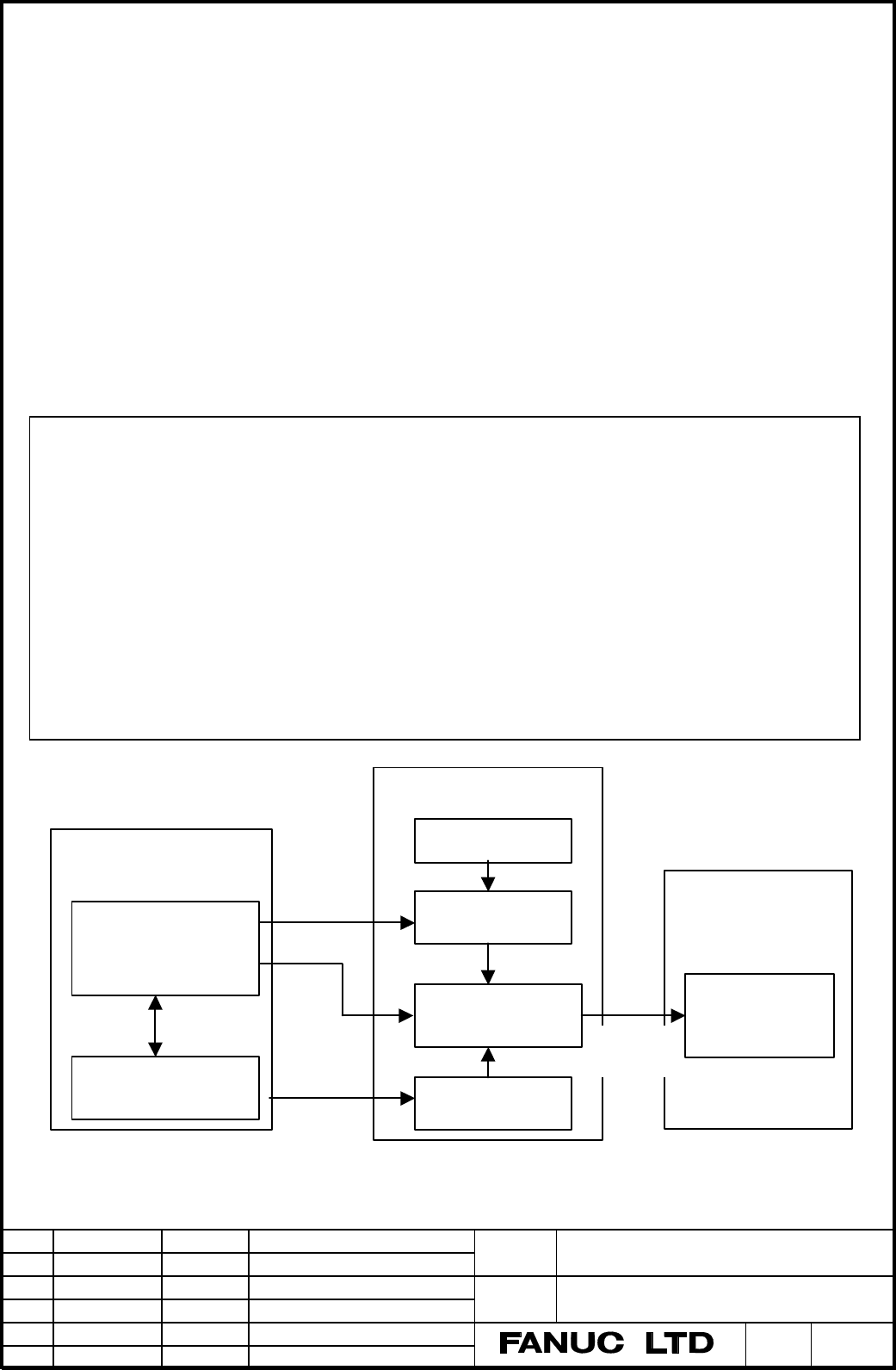

Fig. 2-1 System configuration selection
