B-65280EN/05 FANUC AC SPINDLE MOTOR αi series 2.EXPLANATION OF OPERATION MODES

- 89 -

2.3.8 Parameter Setting Procedure

(1) Command arbitrary gear ratio (CMR)

(a) For a configuration in which the sensor built into the motor is used for position

detection and the gear ratio between the spindle and motor is not 1:1, as

shown in sample system configuration 2 below, the command arbitrary gear

ratio (CMR) is used.

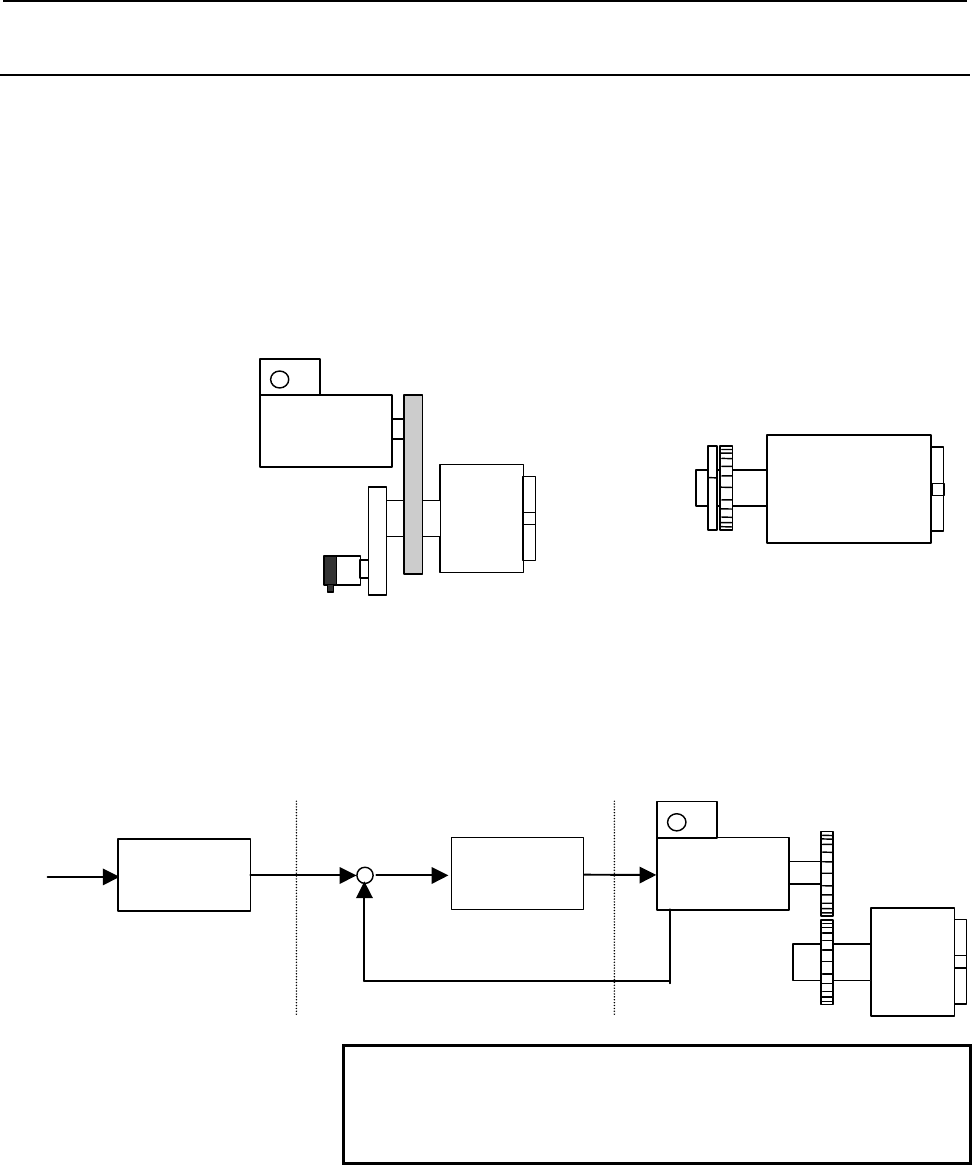

[Sample system configuration 1]

When the position detector is connected to the spindle at a ratio of 1:1,

the command arbitrary gear ratio (CMR) function is not used.

Spindle

position coder

(

connected to the s

indle at a ratio of 1:1

)

Motor

sensor

(directly connected to the spindle)

Spindle +

built-in motor

[Sample system configuration 2]

When the sensor built into the motor is used as the position detector in

a configuration in which the gear ratio between the spindle and motor

is not 1:1, the command arbitrary gear ratio (CMR) function is used.

Position

control

Arbitrary gear

ratio

(command)

Position feedback

Position

command

CNC

SPM

Spindle

Motor

NOTE

This system configuration also enables the detection

arbitrary gear ratio function (DMR function) to be

used.
