B-65280EN/05 FANUC AC SPINDLE MOTOR αi series 4.ADJUSTMENT

- 209 -

4.2.2 HRV Filter

(1) Overview

The HRV filter can attenuate signals which are in certain frequency

band. When a strong resonance point is present in an area not lower

than 100 Hz, and it is impossible to increase the velocity loop gain,

the velocity loop gain can be increased by using this filter.

NOTE

For machines in which the rigidity of the part

connecting the spindle and motor is considered to

change with time, or for machines whose spindle

inertia changes largely depending on the tool or

workpiece used, do not use the HRV filter.

(2) Series and editions of applicable spindle software

Series 9D50/E(05) and subsequent editions

Series 9D70/A(01) and subsequent editions

(3) Details

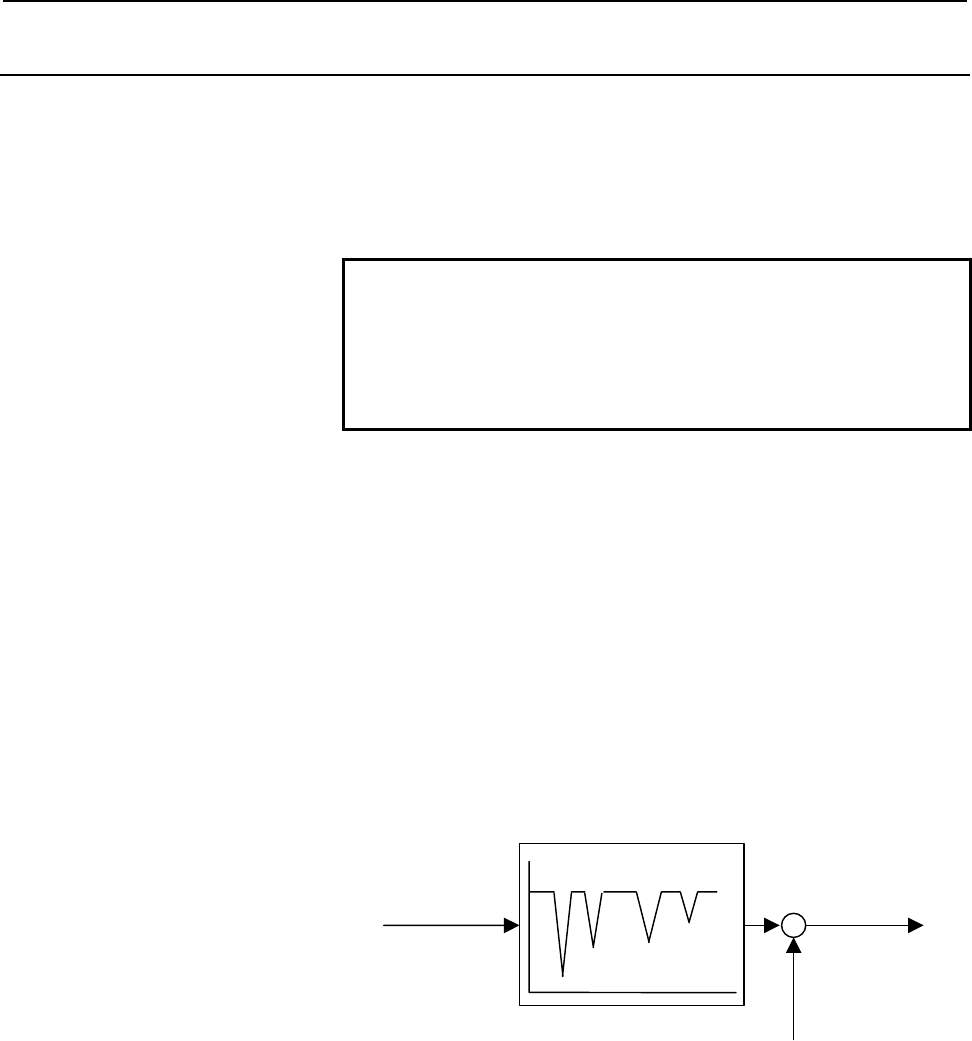

Fig. 4.2.2 shows the HRV filter configuration.

The HRV filter is applied to the proportional (the value immediately

after the torque command filter in Fig. 4.2.1) of the torque command

after the command is passed through the torque command filter. The

HRV filter attenuates signals in a set frequency band to avoid machine

resonance.

Four filter stages in total can be applied. For each stage, filter

characteristics are set by using three parameters including the center

frequency, band width, and damping.

Torque command

(proportional)

Torque

command

(integral term)

HRV filter

To m ot or

Fig.4.2.2 HRV filter configuration
