2.EXPLANATION OF OPERATION MODES FANUC AC SPINDLE MOTOR αi series B-65280EN/05

- 70 -

(2) Adjustment using the spindle check board

(a) Specify parameters as follows:

No.4016#7=0

No.4031=0 (When external signals are used for setting, set

the SHA11 to SHA00 DI signals to 0.)

No.4077=0

(b) To display the position coder counter under position control,

set the following on the spindle check board:

d-01=295

d-02=0

d-03=0

d-04=0

orientation.

(d) Once orientation stops, check that 00000 is displayed.

Cancel the orientation command and set the emergency stop

state to deactivate the motor.

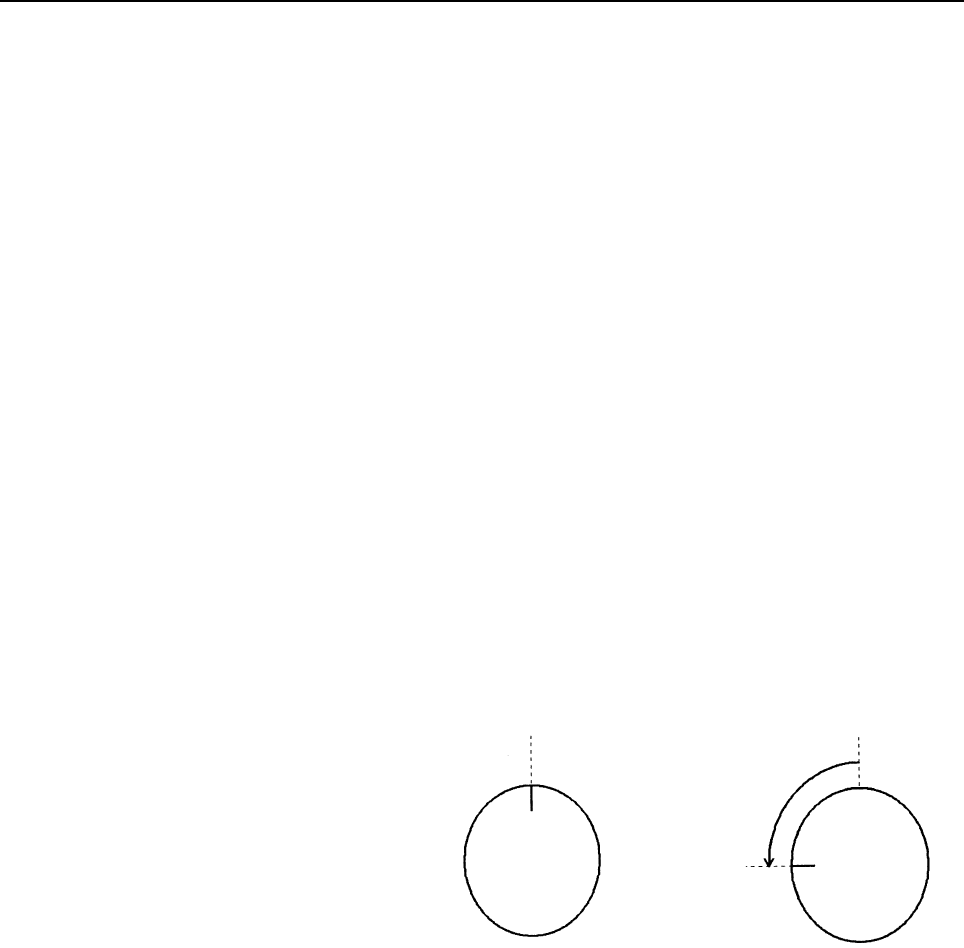

(e) Manually position the spindle to the position where you

want the spindle to stop. Then, read the displayed value.

(f) Set the displayed value of (5) as the parameter data for an

orientation stop position shift amount.

Example:

Value displayed when

orientation is stopped = 00000

Value displayed when the

spindle is positioned manually

after deactivating the motor =

01024

Value to be specified in the parameter No. 4077 = 1024
