2.EXPLANATION OF OPERATION MODES FANUC AC SPINDLE MOTOR αi series B-65280EN/05

- 60 -

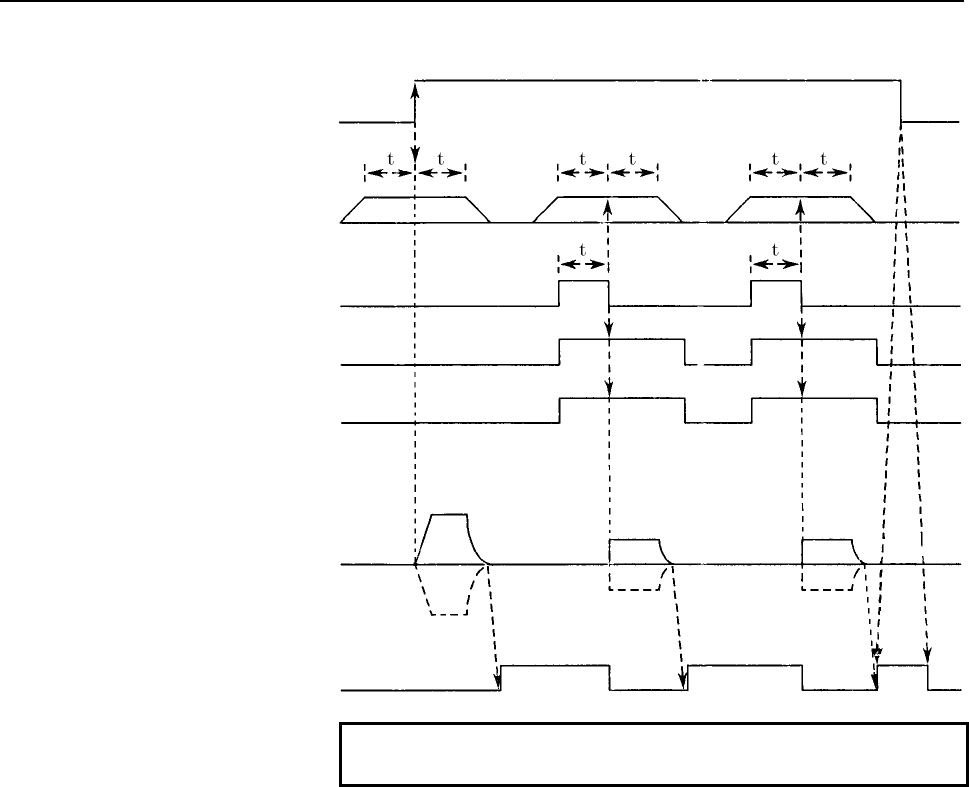

(3) Stop position external setting type spindle orientation

NOTE

Set t = 50 msec or more.

Stop <1>

• Predetermined stop position based on the normal orientation

command

• The rotation direction of the spindle motor is determined by

parameter setting.

• After the power is turned on, the spindle rotates at the orientation

speed and seizes the one-rotation signal before stopping at a

predetermined position for the first time. After the first stop, the

spindle stops at a predetermined position within one rotation.

• When the stop position external setting type spindle orientation

function is used, the spindle stops at a predetermined position

after shifting by the stop position data read on the rising edge of

the spindle orientation command signal if the data of the spindle

orientation stop position command SHA00-SHA11 is set after

the first stop.

Stop <2>, <3>

• Predetermined stop positions based on the stop position external

setting type spindle orientation function

Spindle orientation command

ORCMA

Spindle orientation stop position

command SHA00-11

Spindle orientation stop position

change command INDXA

Spindle orientation stop position

change rotation direction command

ROTAA

Spindle orientation stop position

change shortcut command NRROA

Motor speed

Spindle orientation completion signal

ORARA

Stop <3> Stop <2> Stop <1>

CCW direction

CW direction
