(7) Tuning the acceleration limitation start speed during deceleration

(parameter Nos. 4326 and 4330)

If you tuned the percentage limit to an acceleration during

deceleration as explained in item (6), tune also the acceleration

limitation start speed during deceleration.

(a) Deciding whether or not to tune the acceleration limitation start speed during

deceleration

Start spindle orientation when the spindle is running at 10 min

-1

+ acceleration limitation start speed during deceleration ω

which is an initial setting used when the percentage limit to an

acceleration during deceleration is tuned. (See the following

figure.) In this case, it is necessary to tune the percentage limit to

an acceleration during deceleration if the torque command is

saturated in sequence interval C or D.

If the torque command is not saturated, stop tuning the spindle

orientation.

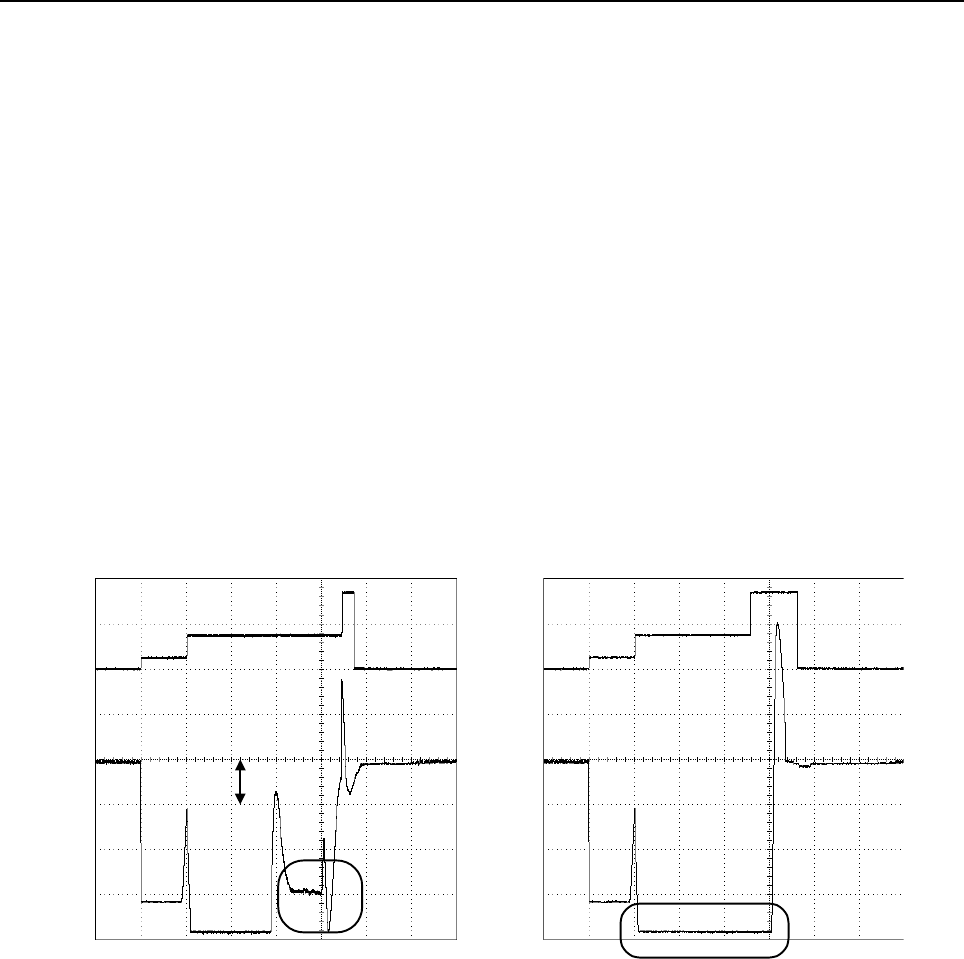

Case in which parameter tuning is necessary

Spindle orientation

sequence (data No. 298)

Torque command

(data No. 90)

O.K.

25%

Case in which parameter tuning is

unnecessary

N.G.

(b) Tuning the acceleration limitation start speed during deceleration

Increase the acceleration limitation start speed during

deceleration (parameter Nos. 4326 and 4330) until the torque

command will not be saturated at the end of sequence

interval C or in sequence interval D even when spindle

orientation is started when the spindle is running at 10 min

-1

+ acceleration limitation start speed during deceleration ω

Similarly to item (6), there is no problem even if the torque

command is about to be saturated at the beginning of

sequence interval C.
