B-65280EN/05 FANUC AC SPINDLE MOTOR βi series 2.EXPLANATION OF OPERATION MODES

- 361 -

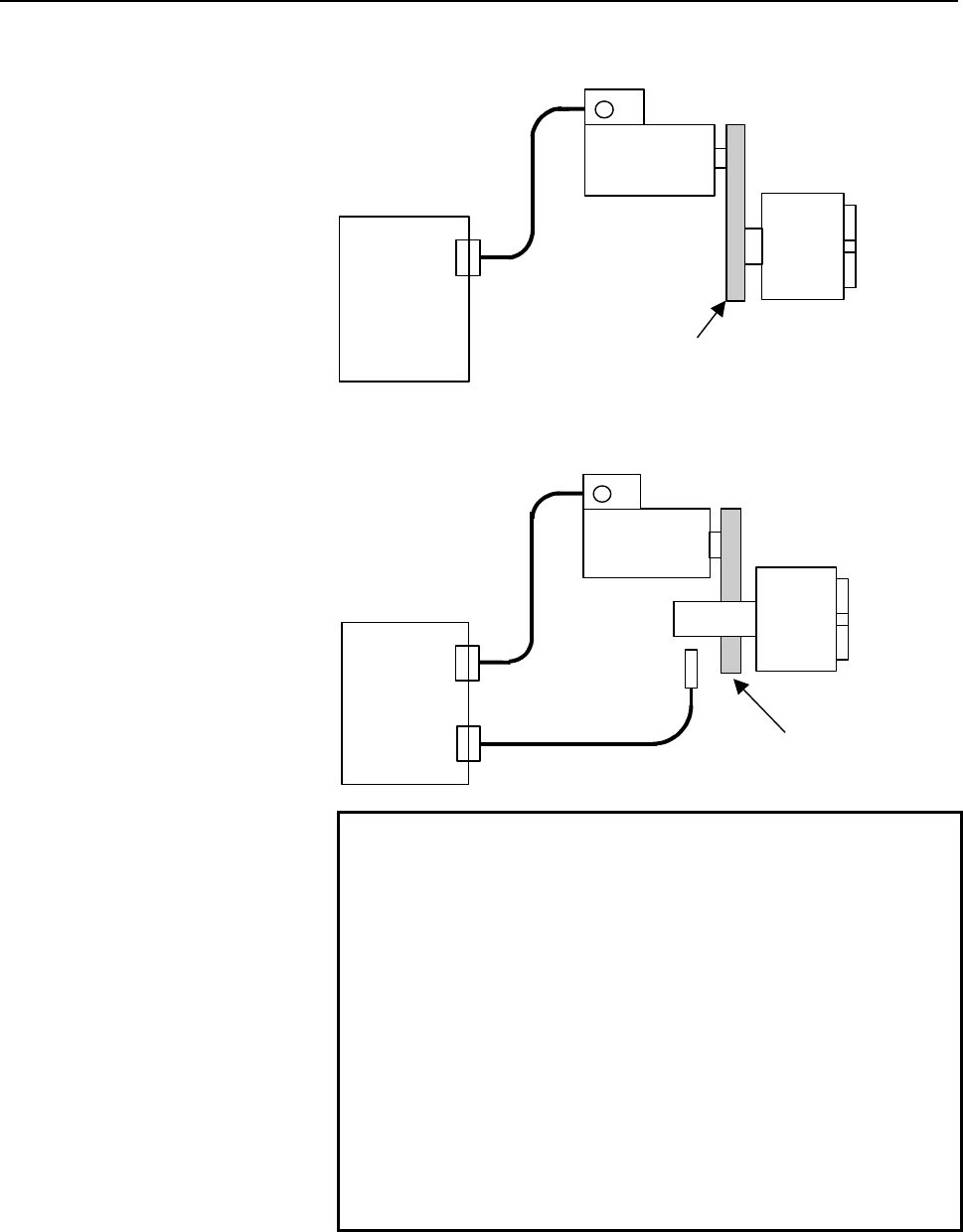

[Sample system configuration 2]

Spindle motor with built-in MZ

sensor

Spindle

JYA2

SPM

TYPE A

Directly connected or connected with a gear or timing bel

at a ratio of 1:1

(3) When the external one-rotation signal (proximity switch) is used

[Sample system configuration]

Spindle motor with built-in M

sensor

(or MZ

sensor)

Spindle

Gear or timing belt

External one-rotation

signal (proximity switch)

JYA3

JYA2

SVPM

(TYPE A)

NOTE

1 For stable detection of the one-rotation signal, fix the

rotation direction (bits 3 and 2 of No. 4003) for

orientation at one direction.

2 Set the type (bits 3 and 2 of No. 4004) of the

external one-rotation signal (proximity switch).

3 For stable detection of the one-rotation signal, set an

orientation speed (No. 4038) from 50 to 100 min

-1

according to the specification of the external

one-rotation signal (proximity switch).

4 The detection of the one-rotation signal starts after

the orientation speed is reached.

5 Set the parameters (No. 4171 to No. 4174) for the

numerator/denominator of an arbitrary gear ratio

between the motor sensor and spindle.
