B-65280EN/05 FANUC AC SPINDLE MOTOR αi series 3.I/O SIGNALS (CNC ↔ PMC)

- 195 -

3.2.3 Details of Output Signals

(a) Spindle alarm signal (ALMA)

(1) When continuation of spindle motor operation becomes

impossible, the power to the spindle motor is turned off to stop

the spindle motor.

(2) At the same time, alarm signal ALMA is set to 1. For the

meaning of the alarm, check the indicator of the spindle

amplifier.

(3) Use the alarm signal output to reset the command signals sent to

the spindle amplifier (speed command, forward and reverse

rotation commands, and spindle orientation command). Unless

the reset state has been entered (the signals issued from the PMC

have been all cleared), the spindle motor may rotate when the

alarm on the spindle amplifier is released, which presents a

dangerous situation.

(4) At the same time when the alarm signal is output, the power to

the spindle motor is turned off, and the spindle motor coasts.

Therefore, it is necessary to enter the feed hold state by setting

the emergency stop state on the CNC or power magnetics

cabinet.

(5) When the alarm state is entered, ALMA is set to 1. While the

alarm signal is 1, the spindle motor is placed in the coast state

regardless of external commands.

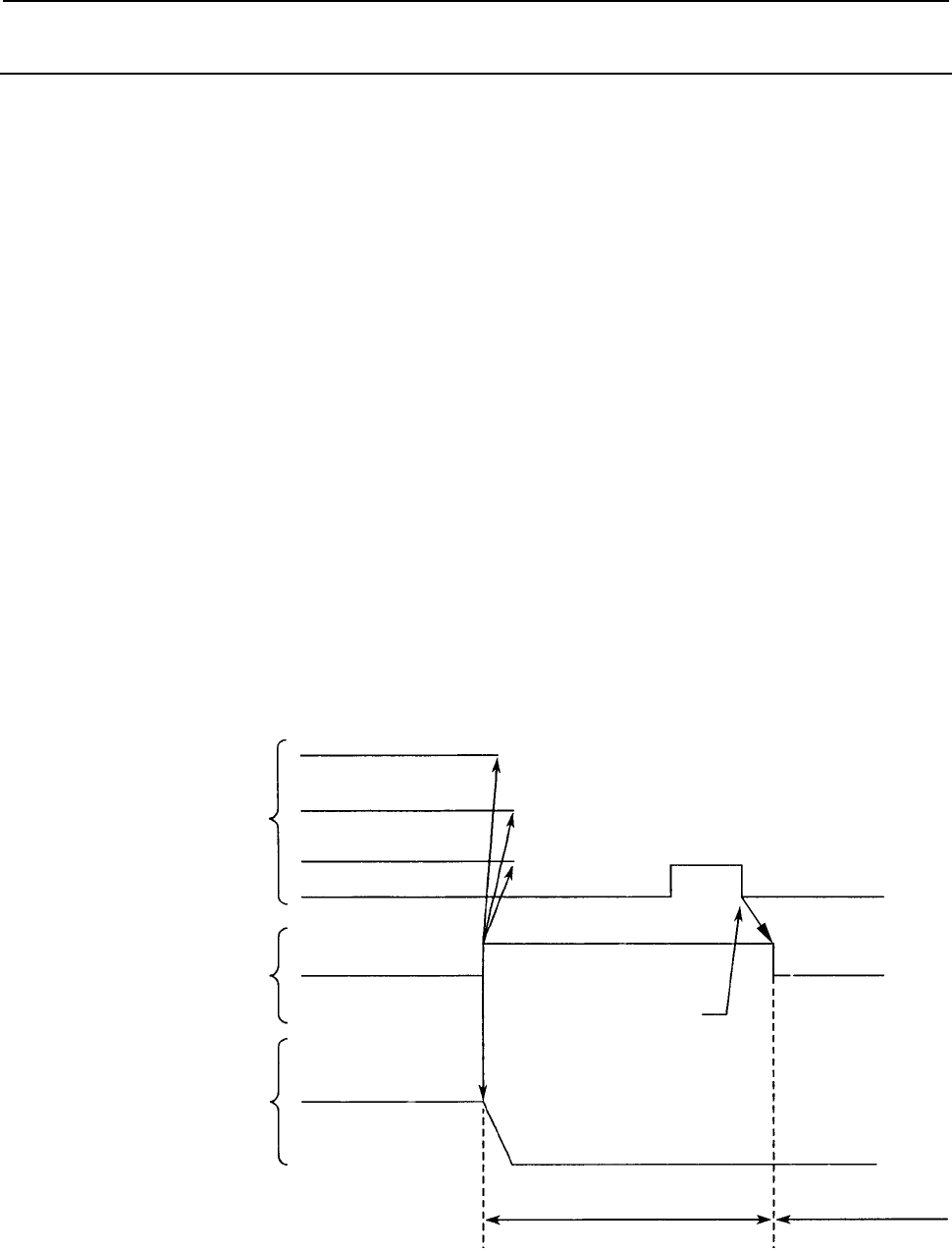

(6) The following diagram shows the relationship between the alarm

signal and alarm reset signal:

Spindle orientation

command ORCMA

Usable

Not operated even when command

is issued

(Stopped)

Motor rotation speed

Remove cause of alarm

(Alarm)

ALMA

Motor operation

Spindle amplifier

control output signal

0 0

(Alarm reset)

ARSTA

Forward/reverse rotation

signal

SFRA (SRVA)

Spindle control

nals

Speed command
