2.2.11 Adjusting the Orientation Stop Position Shift Parameter
Adjust the orientation stop position shift parameter by following the
procedure below.
(1) Adjustment using diagnosis screen No. 445 (spindle position data
display) (16i, 30i)
(a) Specify parameters as follows:
No.3117#1=1 (to enable the display function of diagnosis
screen No. 445)
No.4016#7=0
No.4031=0 (When external signals are used for setting, set
the SHA11 to SHA00 DI signals to 0.)
No.4077=0
(b) Enter an orientation command (ORCMA) to stop
orientation.
(c) After orientation is stopped, check that diagnosis screen No.
445 displays 0.
Cancel the orientation command and set the emergency stop
state to deactivate the motor.
(d) Rotate the spindle manually to the position where you want
the spindle to stop then read the displayed value of
diagnosis screen No. 445.
(e) Set the displayed value of (d) as the parameter data for an
orientation stop position shift amount (parameter No. 4077).

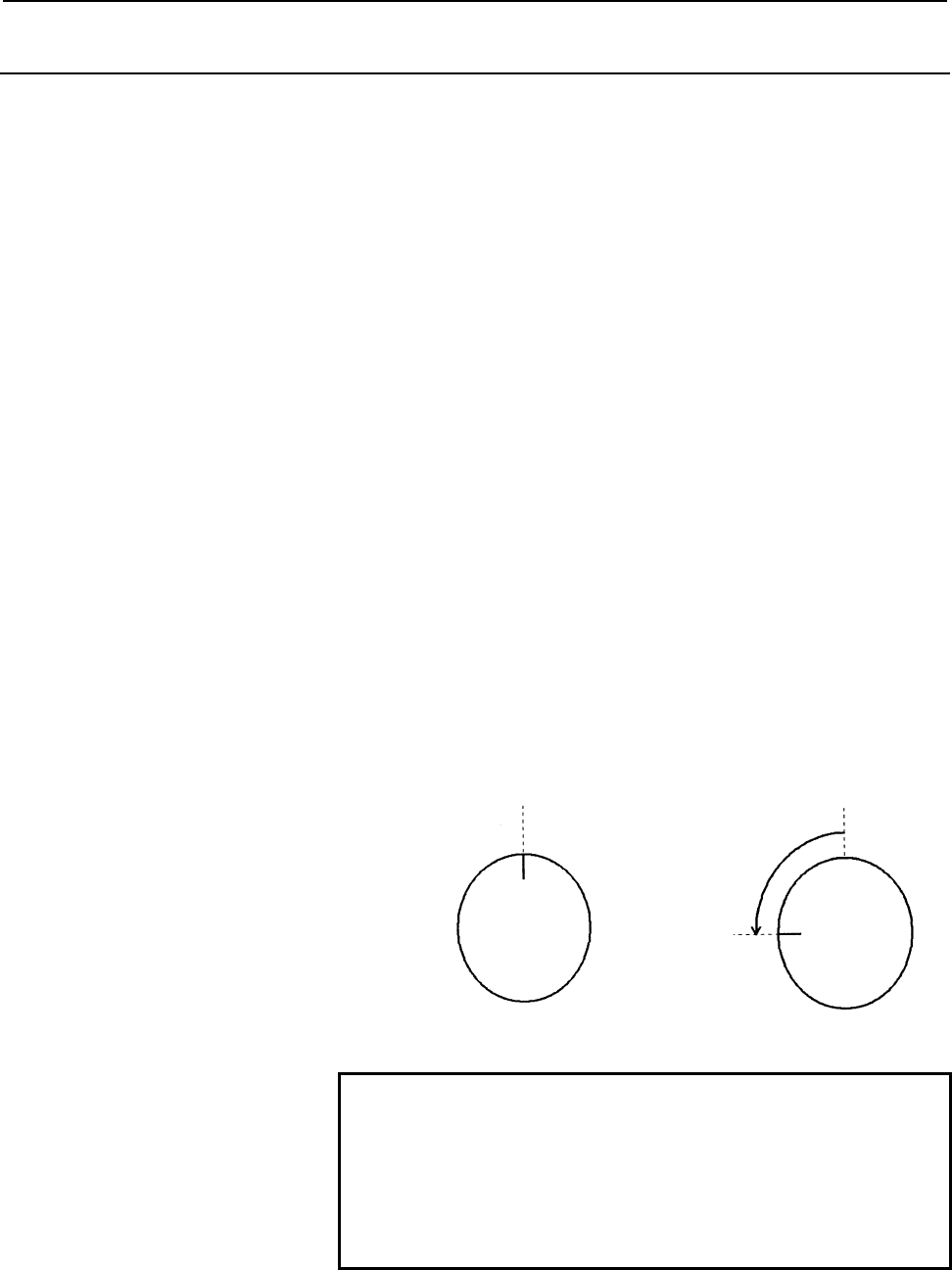

Example:
Value displayed in No. 445
when orientation is stopped = 0
Ö
Value displayed in No. 445 when
the spindle is rotated manually in
the emergency stop state = 1024
Value to be specified in the parameter No. 4077 = 1024
NOTE
1 The display function of diagnosis screen No. 445 is a
maintenance function. After completion of
adjustment, return the setting of bit 1 of parameter
No. 3117 to 0.
2 The FS15i does not have the spindle position data
display function.
