2.EXPLANATION OF OPERATION MODES FANUC AC SPINDLE MOTOR αi series B-65280EN/05

- 54 -

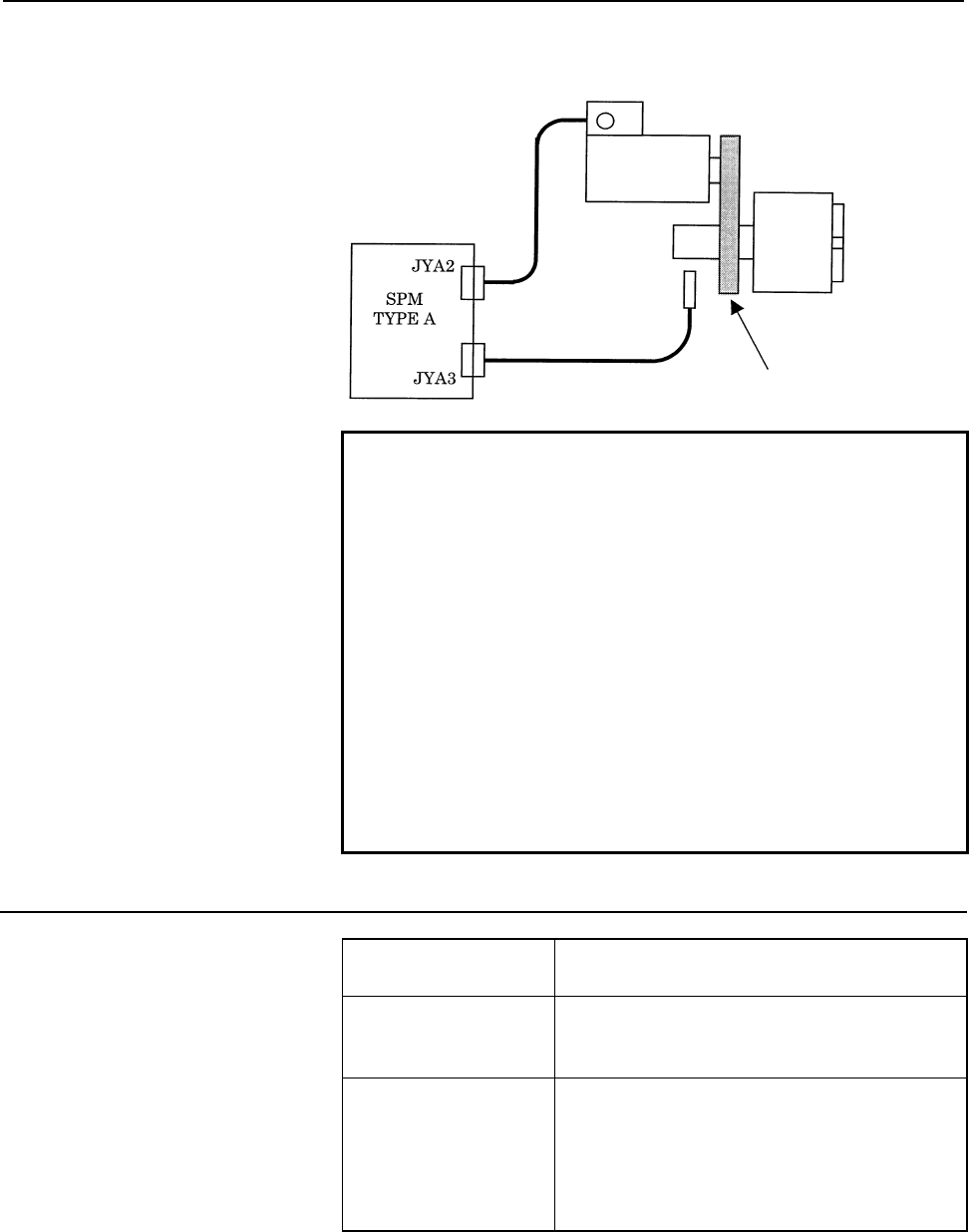

(6) When the external one-rotation signal (proximity switch) is used

Spindle motor with built-in M

sensor

(or MZ

sensor)

Spindle

Gear or timing belt

External one-rotation

signal switch (proximity

switch)

NOTE

1 For stable detection of the one-rotation signal, fix the

rotation direction (bits 3 and 2 of No. 4003) for

orientation at one direction.

2 Set the type (bits 3 and 2 of No. 4004) of the

external one-rotation signal (proximity switch).

3 For stable detection of the one-rotation signal, set an

orientation speed (No. 4038) from 50 to 100 min

-1

according to the specification of the external

one-rotation signal (proximity switch).

4 The detection of the one-rotation signal starts after

the orientation speed is reached.

5 Set the parameters (No. 4171 to No. 4174) for the

numerator/denominator of an arbitrary gear ratio

between the motor sensor and spindle.

2.2.5 Stop Position Specification Method

Stop position

specification method

Description

Parameter-based

specification

Set the number of pulses (

±4095 pulses) from the

one-rotation signal to a stop position (360

° = 4096

pulses).

External setting for stop

position specification

Specify the number of pulses (0 to 4095 pulses)

from the one-rotation signal to a stop position with

a PMC signal (360° = 4096 pulses). The sum of

the number of pulses set in the parameter and the

number of pulses specified with a PMC signal

represents a final stop position.
