B-65280EN/05 FANUC AC SPINDLE MOTOR αi series 3.I/O SIGNALS (CNC ↔ PMC)

- 191 -

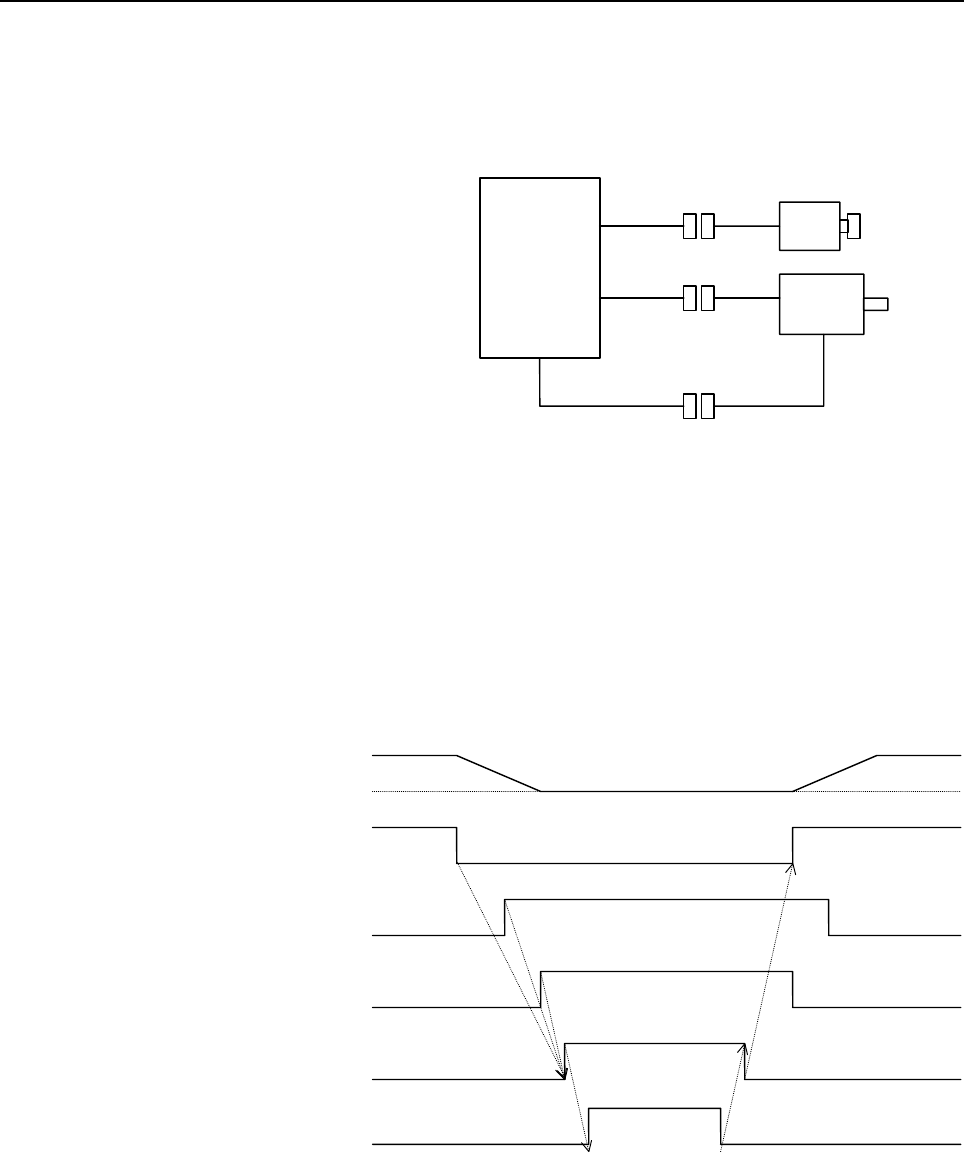

(p) Disconnection detection disable signal (DSCNA)

(1) This signal is used when the connection between the spindle

amplifier and spindle motor needs to be disconnected

temporarily.

SPM

JYA3

JYA2

Feedback

Power line

Motor

Position coder

(2) When this signal is used to detach the feedback signal, motor

overheat and the issuance of a feedback signal disconnection

alarm can be prevented.

(3) A motor excitation OFF state confirmation signal (EXOFA) is

provided to confirm that the motor is not excited before the

connected power line is detached.

(4) Before setting this signal to 1 and disconnecting the feedback

signals and power line, set all the SFRA, SRVA, ORCMA,

MRDYA, and *ESPA commands to 0, and confirm that the

motor excitation OFF state confirmation signal (EXOFA) has

been set to 1. After completing re-connection, reset this signal to

(5) Sample sequence

Motor speed

0 min

1 SFRA,SRVA,ORCMA,

MRDYA,*ESPA

SSTA

EXOFA

DSCNA

Connection

status

Connection

Disconnection

Disconnected

(q) Differential speed mode command signal (DEFMDA)

For details of this signal, see Section 5.9, "DIFFERENTIAL

SPINDLE SPEED CONTROL" in Part I.

(r) Tandem operation command (SLVA)

For details of this signal, see Section 5.11, "TORQUE TANDEM

CONTROL FUNCTION" in Part I.
