5.FUNCTION DESCRIPTIONS FANUC AC SPINDLE MOTOR βi series B-65280EN/05

- 384 -

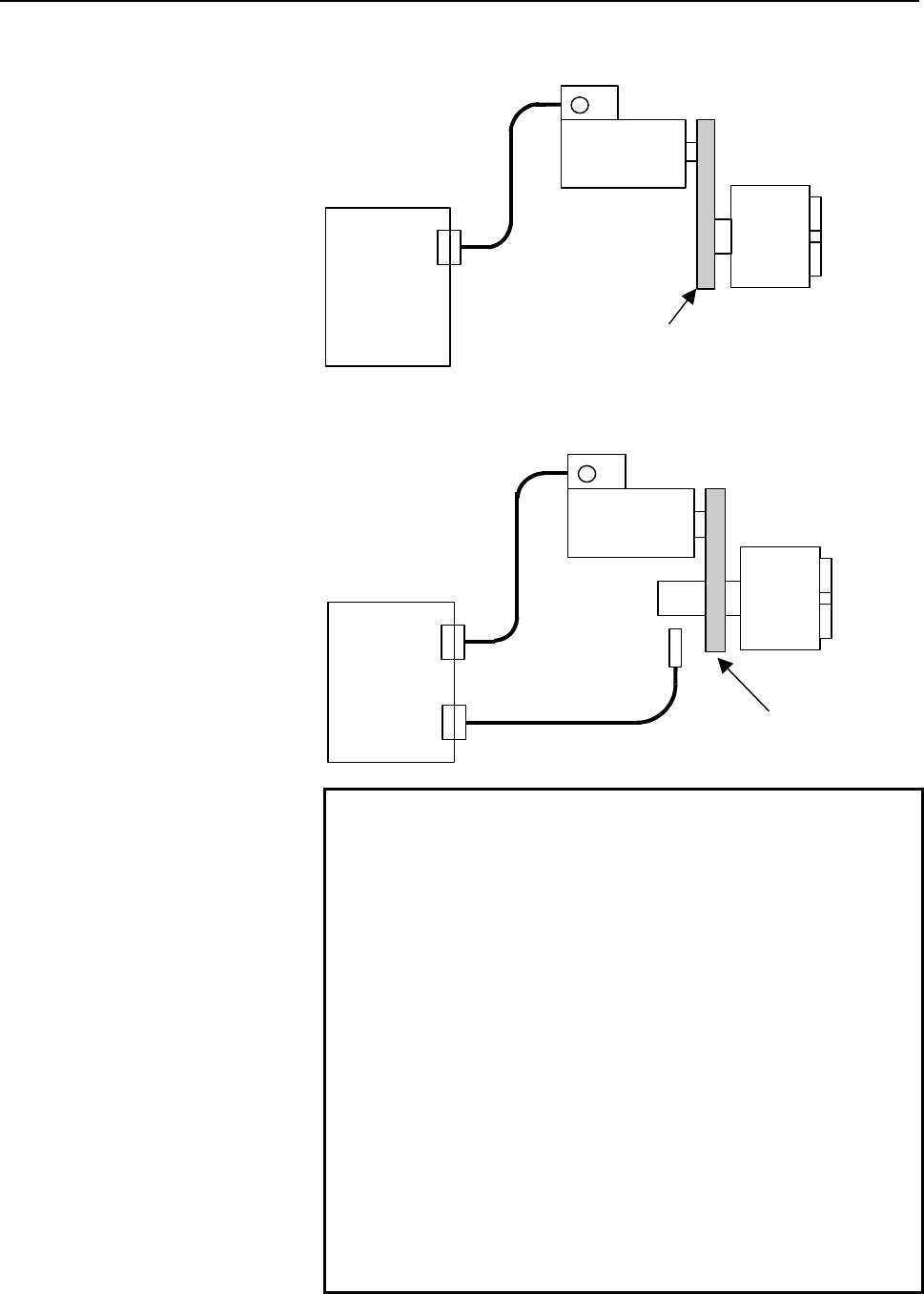

[Sample system configuration 2]

Spindle motor with built-in MZ

sensor

Spindle

JYA2

SVPM

(TYPE A)

Directly connected or connected with a gear or timing

belt at a ratio of 1:1

(3) When the external one-rotation signal (proximity switch) is used

[Sample system configuration]

Spindle motor with built-in M

sensor

(or MZ

sensor)

Spindle

Gear or timing belt

External one-rotation

signal (proximity switch)

JYA3

JYA2

SVPM

(TYPE A)

NOTE

1 To detect the one-rotation signal securely, fix the

direction (bits 3 and 2 of parameter No. 4003) in

which the spindle rotates during spindle orientation

to one direction.

2 Specify the type (bits 3 and 2 of parameter No.

4004) of an external one-rotation signal (proximity

switch).

3 To detect the one-rotation signal securely, set the

spindle orientation speed (parameter No. 4038) to a

value between 50 and 100 min

-1

according to the

specification of the external one-rotation signal

(proximity switch).

4 A sequence for detecting the one-rotation signal is

started after the orientation speed has been

reached.

5 Specify the denominator/numerator parameters

(Nos. 4171 to 4174) of an arbitrary gear ratio

between the motor sensor and spindle.
