5. INSTALLATION

(b) Servo amplifier module and spindle amplifier module

Connect the ground cable of the motor power cable to a ground

terminal of the terminal block of the module. Connect the other

ground terminal of the terminal block to the frame ground.

Connect the ground terminal of the metal frame to the frame

ground.

Connect the ground terminal of the metal frame to the frame

ground.

NOTE

1 Securing the ground terminal and a cable together is not

permitted.

2 When using an SVM–HV, always attach the motor flange to

the cabinet (machine) connected to the system ground. In

cases where it is difficult to attach the motor flange to the

cabinet (machine) connected to the system ground,

connect the motor flange and frame ground (the ground

plate of the cabinet) with a 1.25–mm

or larger cable which

should be separated from the power cable as far as

possible. (The dotted line in the figure below)

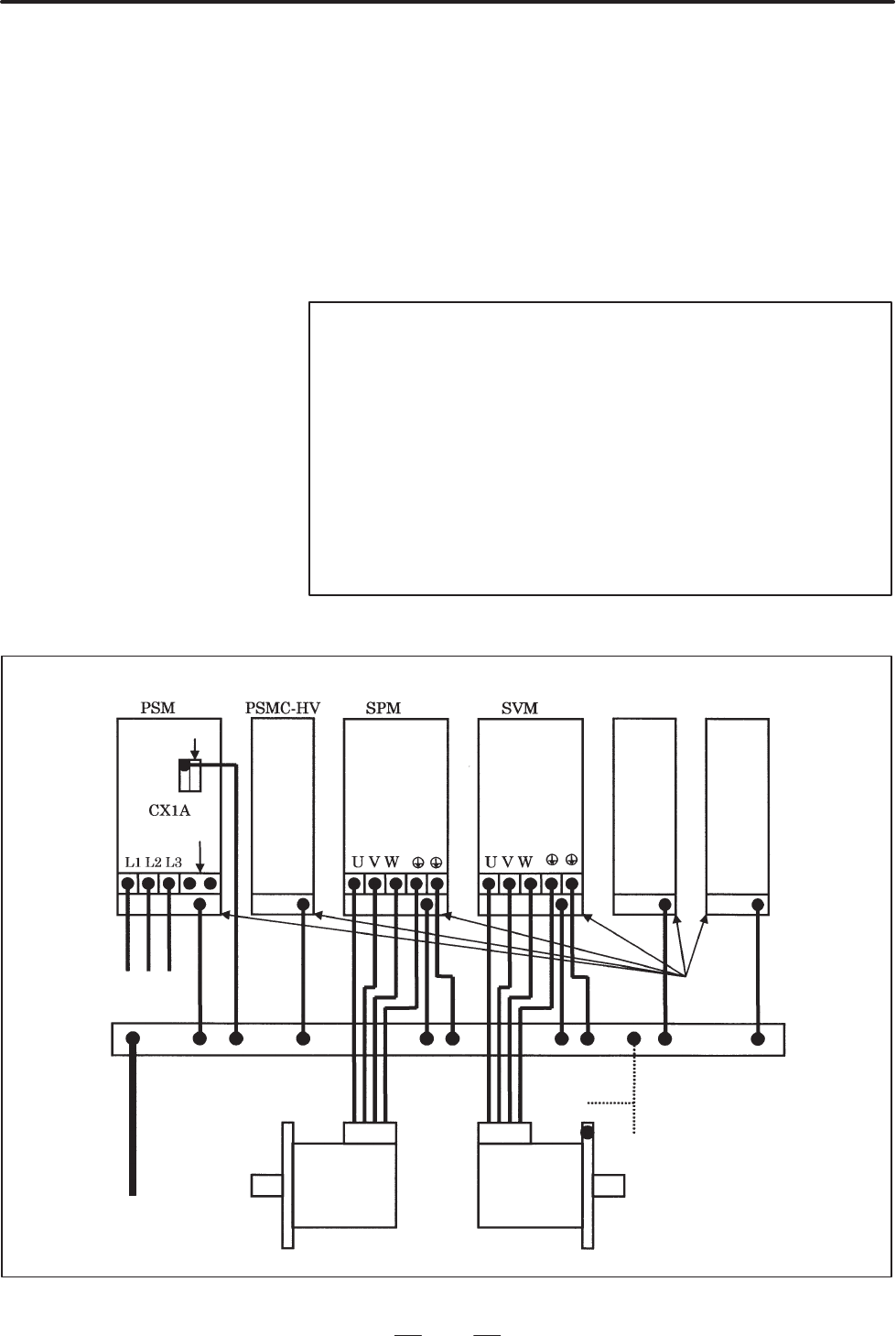

Signal ground

Not used

3φ input power supply

Dynamic brake

module (DBM)

Regenerative

discharge unit

Metal

frame

Frame ground

(ground plate of the cabinet)

System ground

Spindle

motor

Servo

motor

(Note 2)
