9. CONNECTION

B–65162E/03

260

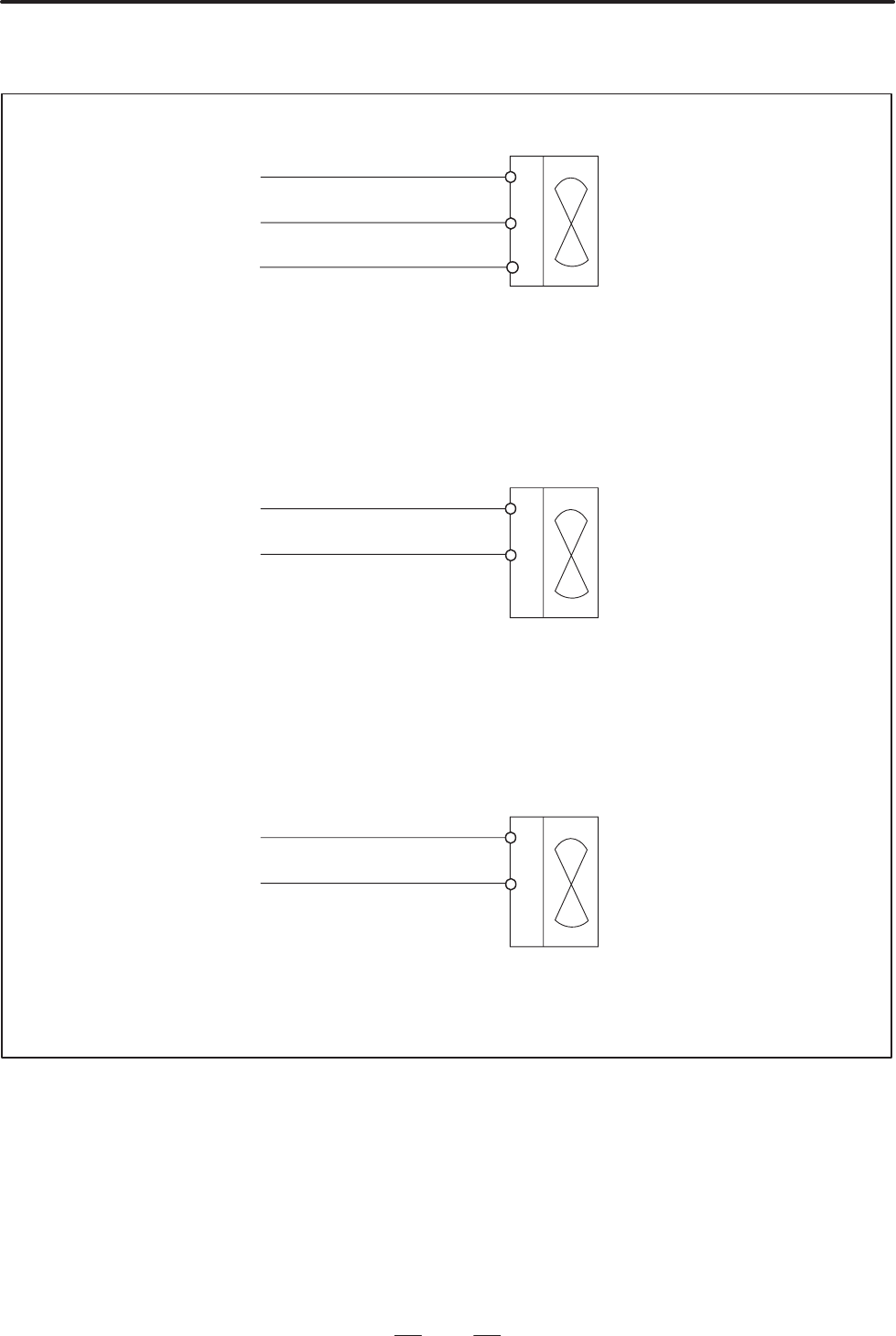

(7) Detailed description of the connection of cable K11

200R

200S

200T

Fan motor

Power for fan motor

200V, three–phase

Cable specification: Use a three–conductor polyvinyl heavy–duty power cable (JIS C3312)

having a conductor size of 2 mm

or larger.

Fan motor terminal screw: M4

200R

200S

Fan motor

Power for cooling fan (for the SPMC11 only)

200V, single–phase

Cable specification: Two–conductor polyvinyl heavy–duty power cable (JIS C3312),

conductor size of 1.25 mm

(50/0.18), PVC sheath 9.6 mm in diameter

Applicable receptacle terminal: 6.3 mm (0.250 in.) series

200R

200S

Fan motor

Power for cooling fan (for the SPM45 and SPM–75HV only)

200V, single–phase

Cable specification: Two–conductor polyvinyl heavy–duty power cable (JIS C3312),

conductor size of 1.25 mm

(50/0.18), PVC sheath 9.6 mm in diameter
