10. INTERFACE SIGNALS

B–65162E/03

404

To change the gear safely, it must be checked that the spindle motor speed

is low enough before moving the shifter. If the frequency stop signal is

also applied, the safety can be doubly checked.

Essential reason to confirm the spindle motor speed :

If the shifter moves when the spindle motor is rotating at high speed, the

gear will break.

Gear selectable output

frequency range

Frequency–stop detect signal

Frequency detection

signal (gear selectable signal)

Output frequency

Spindle motor

speed at gear shift

(Low speed)

0 rpm

Shifter

moves

End of

gear shift

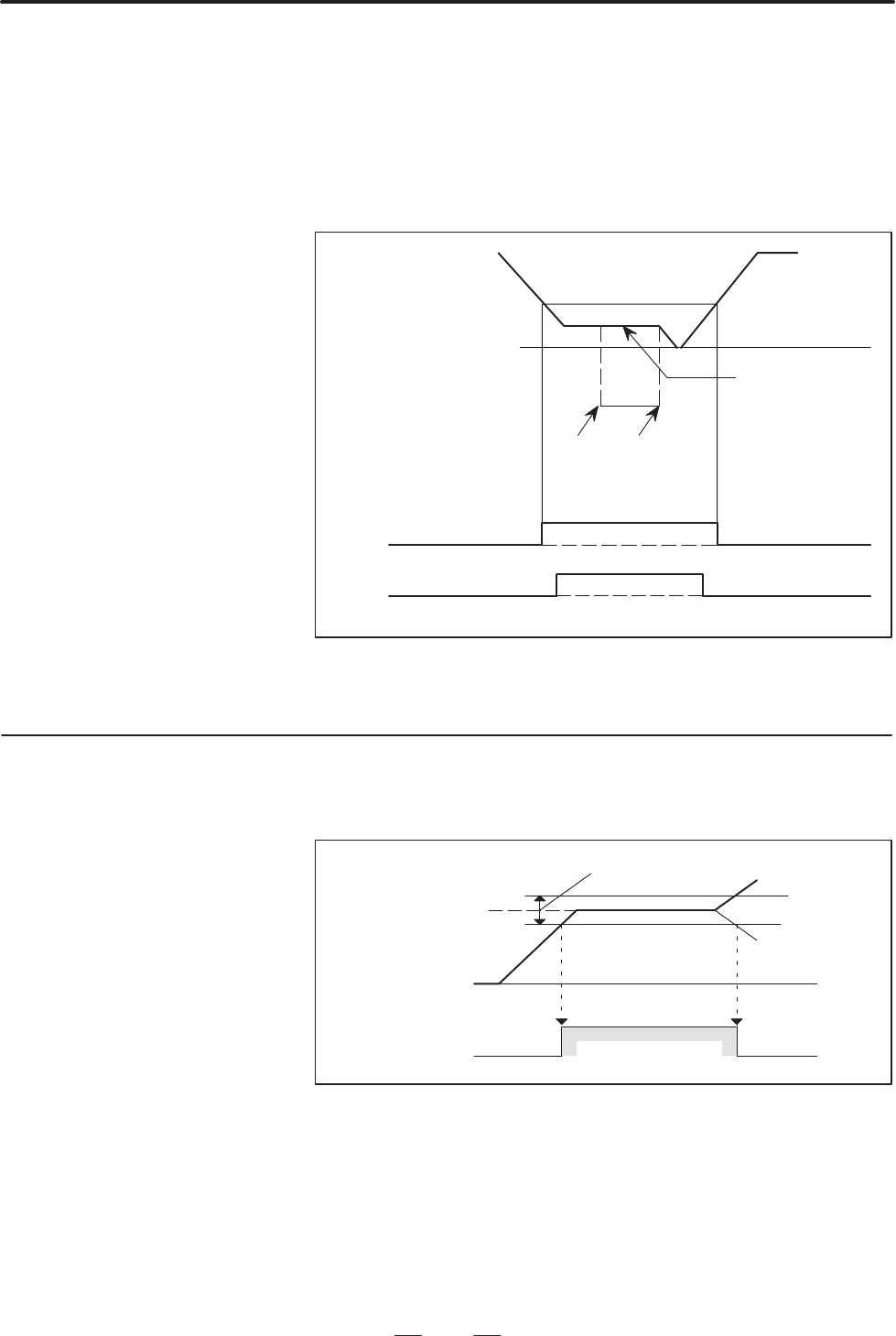

Fig.10.4.11 (b) Frequency Detection Signal

D SARA = 1 occurs when output frequency of the actual spindle motor

module arrives within the range set by the frequency command.

Specified

frequency

Detection range (2), (3)

SARA

Output

frequency

Fig.10.4.12 (a) Frequency Arrival Signal

D The setting range is "1 to 100% of the command frequency. However,

when the speed is less than 10% of the maximum frequency, the

detection range becomes wider than the preset range.

D The standard setting at shipment is "15%. However, the detection

range of this frequency arrival signal at low speed widens as shown in

the diagram below.

10.4.12

Frequency Arrival

Signal (SARA)
