Alpha Series AC Servo Amplifier Descriptions Page 267

Descriptions

Page of 699

/ 699

B–65162E/03

9.CONNECTION

247

TYPE B and FSSB interfaces

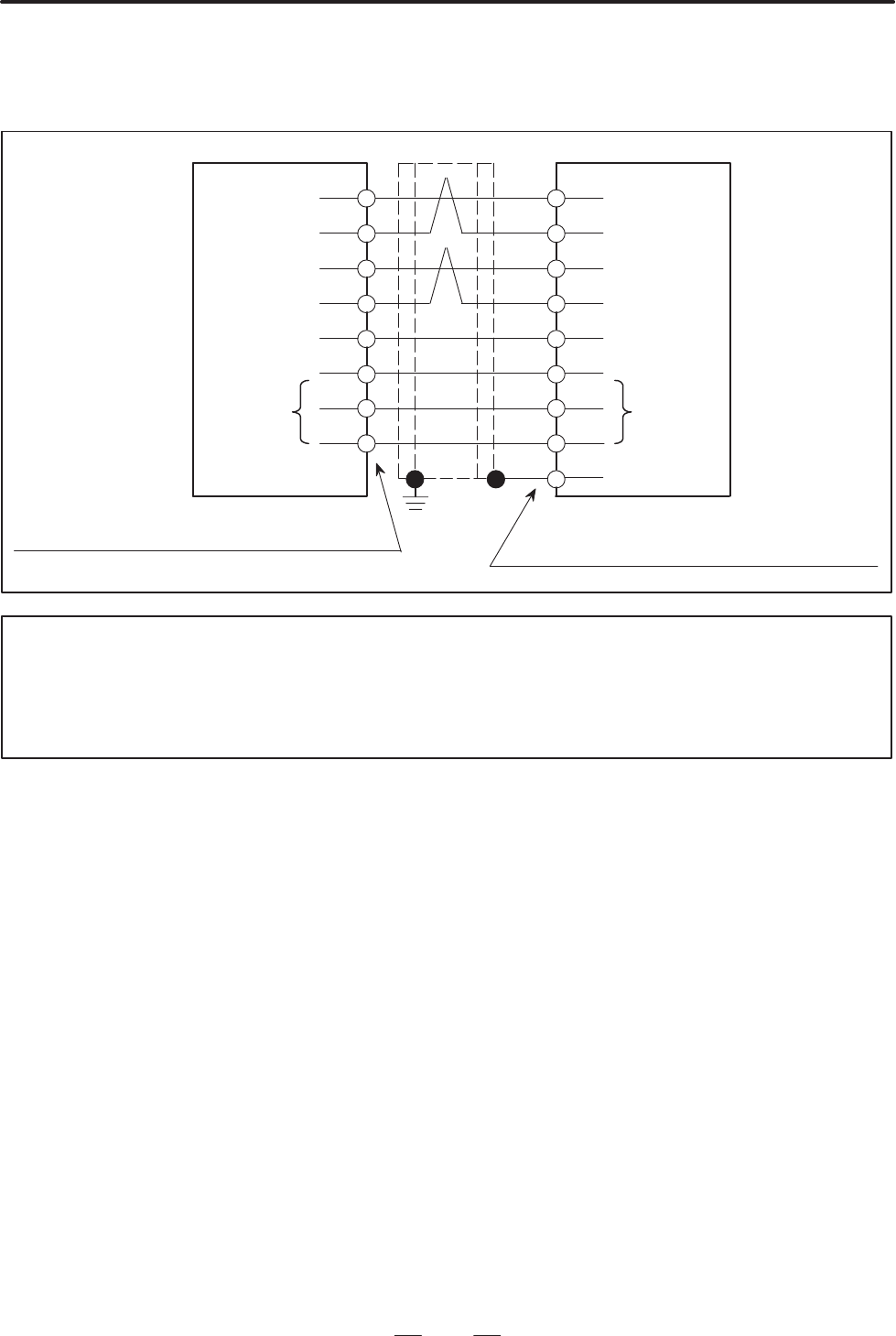

(a) Models α1/3000, α2/2000, α2/3000, αM2/3000, and αM2.5/3000

SVM

Motor

(13)

(12)

(10)

(8, 15)

(5)

(6)

(1, 2, 3)

(14)

(4)

(Note)

*SD

REQ

+5V

*REQ

0VA

+6VA

Shielding

Connector: FI40–2015S (Hirose Electric Co., Ltd.)

Case : FI–20–CV (Hirose Electric Co., Ltd.)

Connector used at the cable end:

Refer to FANUC AC SERVO MOTOR α Series

Descriptions B–65142E.

(1)

(6)

(5)

(2)

(9, 18, 20)

(12, 14)

(16)

(7)

NOTE

For the incremental pulse coder, it is not necessary to connect pins 7 and 16 of the connector

on the CNC side to pins 10 and 14 of the connector on the motor side. No problem will result

if they are connected, however. So, a cable for the absolute pulse coder can also be used for

the incremental pulse coder.
