Alpha Series AC Servo Amplifier Descriptions Page 577

Descriptions

Page of 699

/ 699

B–65162E/03

12. DETECTORS FOR THE SPINDLE

557

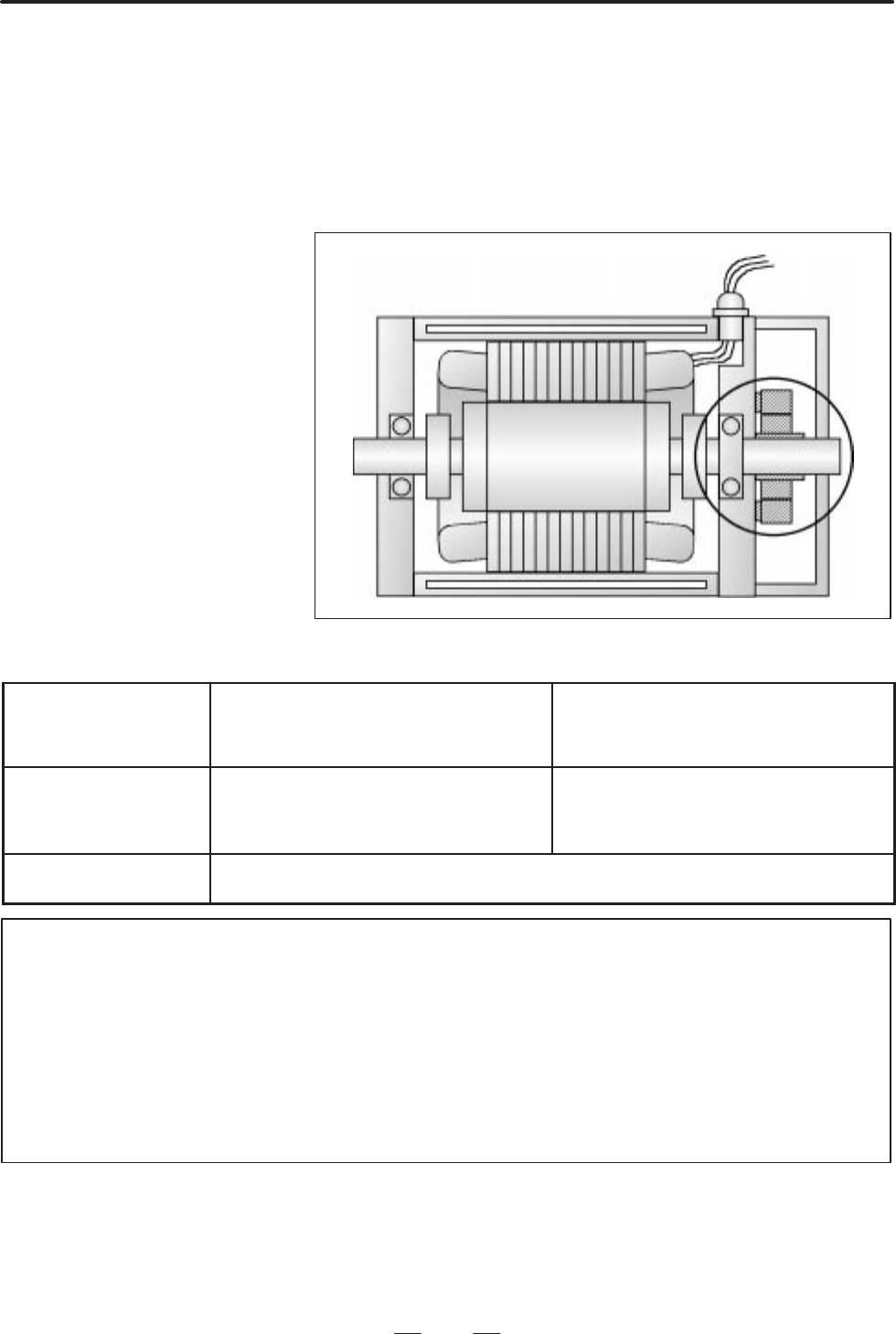

(5) Mounting the High–resolution Magnetic Pulse Coder

The high–resolution magnetic pulse coder is mounted on the rotation axis

of the spindle on the motor power line side. If the high–resolution

magnetic pulse coder is mounted incorrectly, the motor cannot be

controlled correctly. Mount the high–resolution magnetic pulse coder

correctly. In addition, mount a cover or attach a sheet to protect against

the ingress of foreign matter.

1 Mounting a magnetic drum

Sensor A860–0382–T121

A860–0382–T122

A860–0382–T123

A860–0382–T124

Mounting a drum

Mount the drum by shrink fitting the drum or ex-

pansion fitting the sleeve. For information

about the fitting allowance for each speed, see

Item (5).5.

Secure the drum by installing screws in the 6–

5.5 holes on the drum. Until centering is com-

pleted, to not tighten the screws fully.

Drum mounting direction

Mount the drum so that the reference surface of the drum faces the nose of the spindle. The

reference surface of the drum is on the opposite side to the surface on which Z is printed.

NOTE

– Use a magnetic material for the motor housing to minimize magnetic leakage from the motor.

– Ensure that the motor housing is at least 15 mm thick at the sensor mounting section.

– After assembling the drum with the sleeve, mount the drum onto the spindle. Use a

configuration where the sleeve holds the drum on the motor side (left side in the figure above).

If this configuration is impossible, use a non–magnetic material (such as stainless steel) for the

sleeve.

– If a magnetic substance is placed at the back of the magnetic drum (on the right side in the figure

above), allow a clearance of 30 mm.
