Alpha Series AC Servo Amplifier Descriptions Page 253

Descriptions

Page of 699

/ 699

B–65162E/03

9.CONNECTION

233

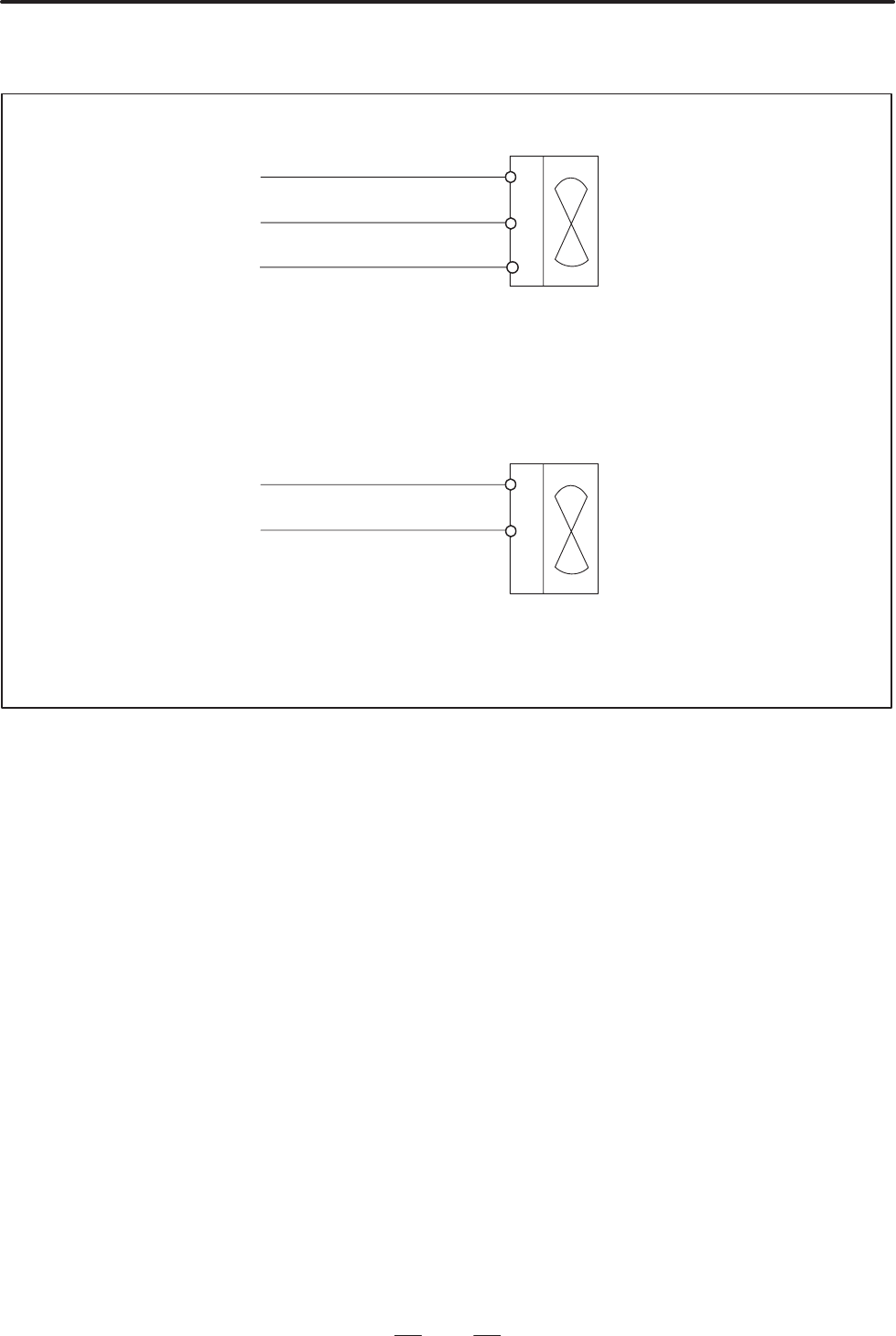

(5) Detailed description of the connection of cable K11

200R

200S

200T

Fan motor

Power for fan motor

200V, three–phase

Cable specification: Use a three–conductor polyvinyl heavy–duty power cable (JIS C3312)

having a conductor size of 2 mm

or larger.

Fan motor terminal screw: M4

200R

200S

Fan motor

Power for cooling fan (for the SVM–130 only)

200V, single–phase

Cable specification: Two–conductor polyvinyl heavy–duty power cable (JIS C3312),

conductor size of 1.25 mm

(50/0.18), PVC sheath 9.6 mm in diameter

Applicable receptacle terminal: 6.3 mm (0.250 in.) series

(6) Detailed description of the connection of cable K11

Note that the type of the cable K21 connector on the motor side varies with

the motor model.

The conductors of cable K21 must be thick enough to carry the rated

current of the corresponding motor. To make the connection waterproof,

select a connector diameter that matches the cable clamp. To make it

comply with the CE marking standard, observe the related cautions.

(Refer to the FANUC AC SERVO MOTOR α Series Descriptions

B–65142E for details).

For an explanation of how to connect a model having a brake, refer also

to the FANUC AC SERVO MOTOR α Series Descriptions B–65142E.
