B–65162E/03

10. INTERFACE SIGNALS

373

D The zero–speed detection point is 0.75% of the maximum speed

(standard initial setting for the parameter).

In other words, the zero-speed detection signal becomes SSTA = 1

when the rotation speed is 45 min

–1

case of the maximum speed 6000

min

–1

D This signal is output when the above condition is satisfied, irrespective

of rotation commands (SFR, SRV).

D The minimum pulse width value of this signal is about 40 ms.

D SDTA = 1 occurs when the motor speed is lower than the speed which

is set by parameter.

D This signal is used to detect that the rotation speed has become lower

than a certain speed set such as clutch selectable speed or gear

selectable speed.

D The speed detecting level can be set by parameter.

It is usually set 3% of the maximum speed in the case of gear change

or 30% of the maximum speed in the case of clutch change.

SDTA

Speed detection level

Motor

speed

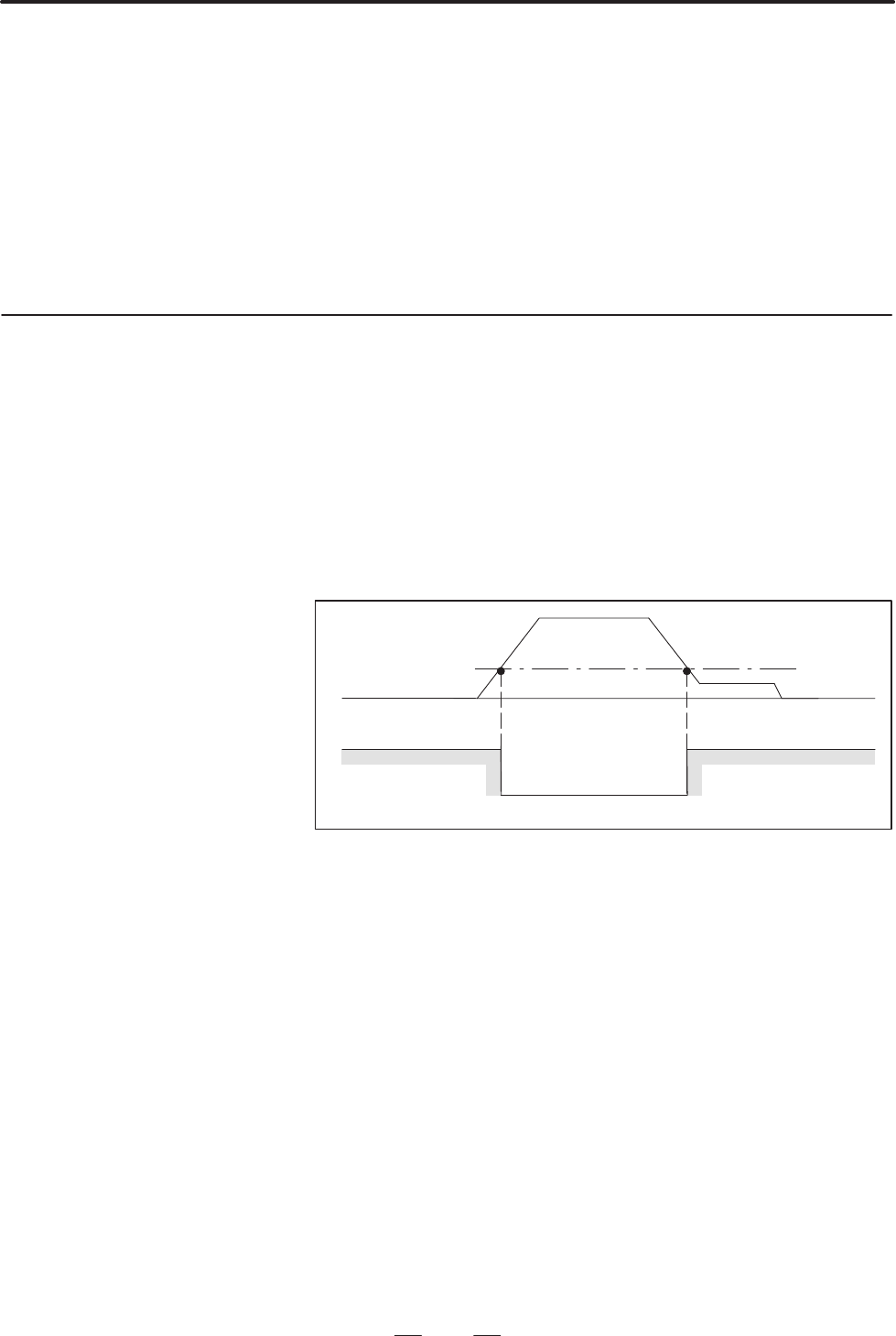

Fig.10.2.11 (a) Speed Detection Signal

D For this signal, SDTA = 1 occurs when the absolute value of the motor

speed is reduced to be lower than the preset detection level,

irrespective of rotation commands (SFR, SV).

The gear shift in the CNC machine tool is one of the sequence controls.

The electric circuit signal in the sequence is used to move the spindle gear,

which is an important component of the machine. It is then necessary to

check that the spindle motor revolution is in low speed to switch the gear

safely.

The following is an example of sequence at gear shift, when the speed

detection signal (gear selectable signal) was used. This example can be

referred to when designing the magnetics sequencer.

10.2.11

Speed Detecting Signal

(SDTA)

Reference

D Sequence of the gear

shift
