9. CONNECTION

B–65162E/03

322

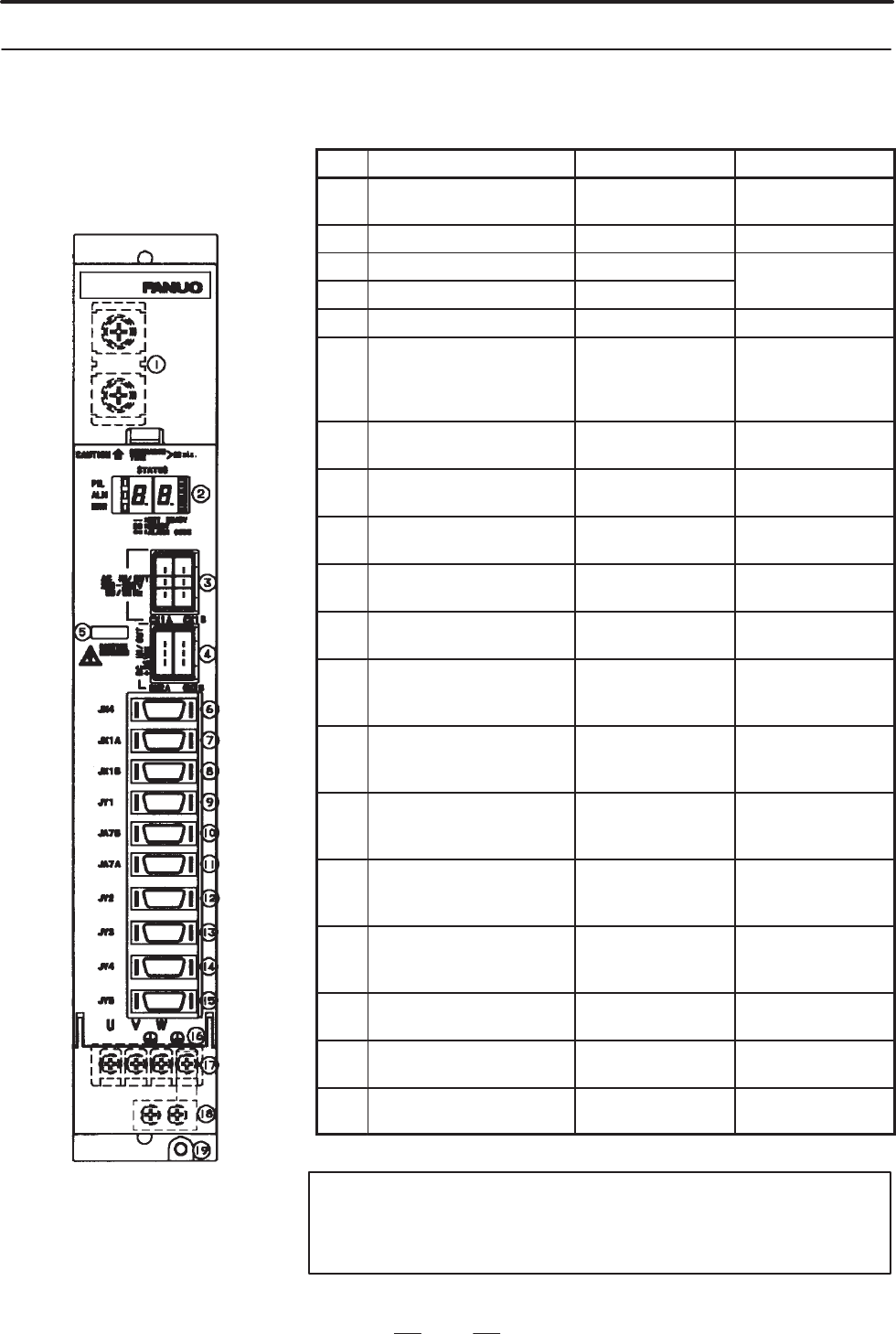

Table.9.3.3 (a) Names of connectors and terminal blocks

Names Display Remarks

1 DC link terminal block Display the terminal

block TB1

2 Status LED STATUS

3 200VAC I/O connector CX1A/CX1B

Both connectors

have same function

4 24 VDC connector CX2A/CX2B

ave same

unc

on.

5 DC link charge LED (Warning)

6 Connector for signal check,

pulse generator signal out-

put, and position coder sig-

nal output

JX4 Use an SPM check

board.

7 Output connector for inter-

face between modules

JX1A

8 Input connector for inter-

face between modules

JX1B

9 Connector for load meter

and speedometer

JY1

10 Input connector for electric

serial interface

JA7B

11 Output connector for elec-

tric serial interface

JA7A

12 Connector for pulse gener-

ator, built–in sensor, and

Cs axis sensor for motor

JY2

13 Connector for magnetic

sensor and external single

rotation signal

JY3

14 Connector for position cod-

er and high–resolution

position coder

JY4

15 Connector for Cs–axis sen-

sor for spindle and built–in

Cs–axis sensor

JY5 TYPE 2, 4

16 Terminal names for termi-

nal block for motor power

line

17 Terminal block for motor

power line

TB2 Display the terminal

block TB2

18 Earth plate Attatched to amplifi-

19 Tapped hole for grounding

the flange

WARNING

Do not touch module components or connected cables

while this LED is lit. There is a danger of electric shock.

9.3.3

Spindle Amplifier

Module

(a) SPM–2.2
