11. OPTION RELATED TO SPINDLE

B–65162E/03

428

 If a spindle orientation command (ORCMA) is entered when the

speed is higher than the upper orientation speed limit set with

parameter No. 4038 (FS16), the speed is reduced to the upper

orientation speed limit.

 A one–rotation signal is detected (only for the first orientation after

power–on).

 The speed is reduced according to the motor deceleration time

constant set with parameter No. 4320 to No. 4323 (FS16).

 When the speed becomes equal to or less than a value calculated

internally by software, the position loop is controlled according to

the orientation–time position gain set with parameter No. 4060 to

No. 4063 (FS16).

 When the positional deviation becomes equal to or less than the

number or pulses set with parameter No. 4075 (FS16) for

specifying an orientation completion signal level, the spindle

orientation completion signal (ORARA) is output.

2) When orientation operation is started from a speed between the lower

orientation speed limit and higher orientation speed limit









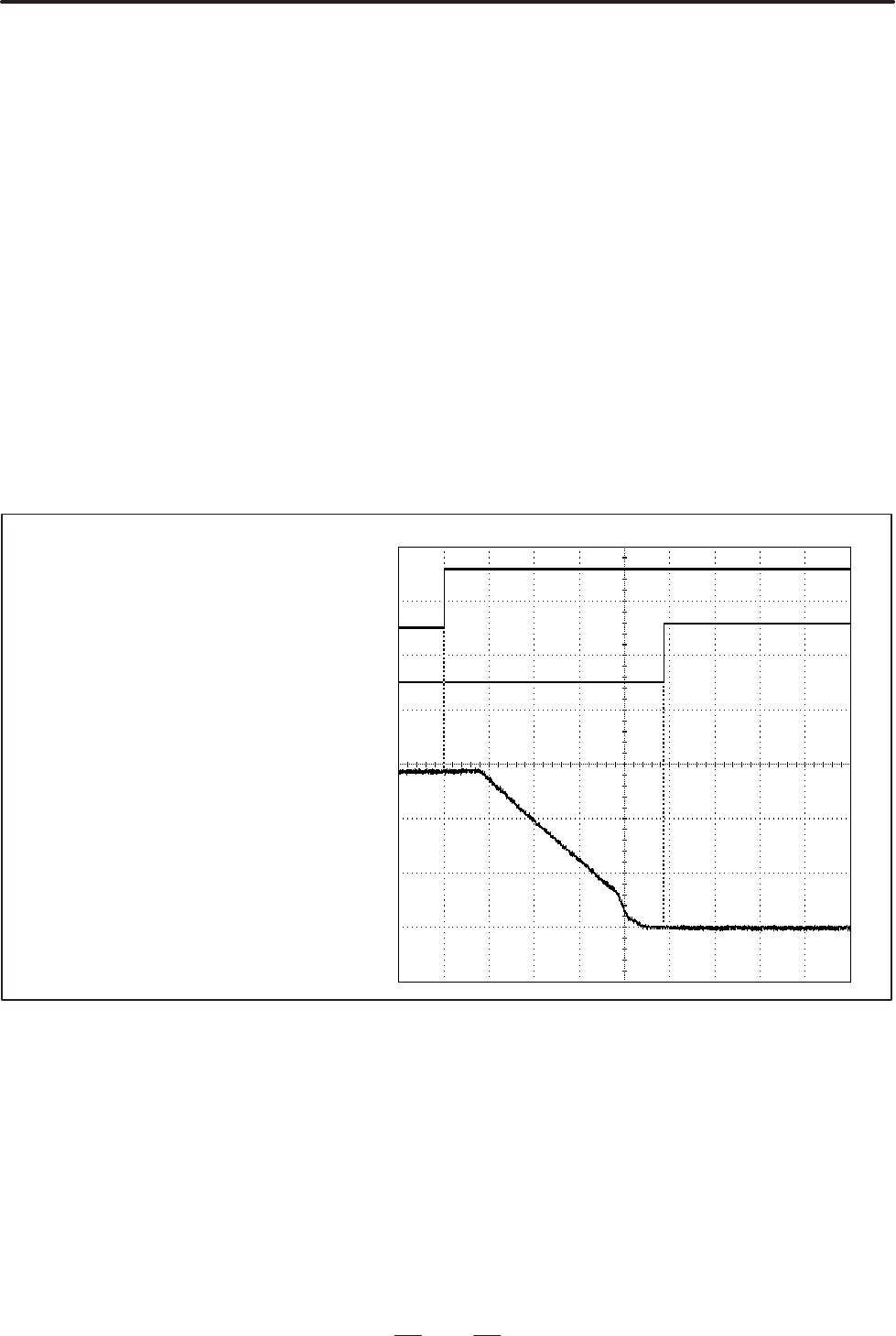

ORCMA (orientation command)

ORARA (orientation completion signal)

Motor speed

 If a spindle orientation command (ORCMA) is entered when the

speed is between the upper orientation speed limit set with

parameter No. 4038 (FS16) and the lower orientation speed limit

(calculated internally by software), a one–rotation signal is

detected (only for the first orientation after power–on).

 The speed is reduced according to the motor deceleration time

constant set with parameter No. 4320 to No. 4323 (FS16).

 When the speed becomes equal to or less than a value calculated

internally by software, the position loop is controlled according to

the orientation–time position gain set with parameter No. 4060 to

No. 4063 (FS16).
