11. OPTION RELATED TO SPINDLE

B–65162E/03

444

(1) Incremental Action

ORCMA

(Spindle orientation command)

SHA00 to SHA11 (Command for

specifying the stop position in spindle

orientation)

INDXA

(Command for changing the stop posi-

tion in spindle orientation)

INCMDA

(Command for selecting stop position

data or incremental command data)

ROTAA

(Command for specifying the direction of

rotation when changing the stop position)

Spindle position

Motor speed

ORARA

(Orientation completion signal)





t t t t t t

t t

CCW

t t t t

t t





Notes

Set t to 50 ms or more. The signals require this time period to stabilize.

(Note)To confirm the signal, t should be 50 msec or more.

 If the rising edge of ORCM is detected when the spindle stops (zero

speed detection signal SSTA is set to 1) and INCMDA is set to 1, the data

of SHA00 to SHA11 is read as incremental command data. The spindle

starts rotating as specified by the incremental command and stops.

ROTAA determines the direction of rotation.

 Another incremental action can then be executed. If the falling

edge of INDXA is detected when both ORCM and INCMDA are

set to 1, the data of SHA00 to SHA11 is read as incremental

command data. The spindle starts rotating as specified by the

incremental command and stops. ROTAA determines the direction

of rotation.

 The incremental command data is specified in units of pulses. The

data range is 0 to +4095 pulses. ROTAA determines the direction

of rotation. When a command multiplication parameter (Series 16:

PRM4328) is specified, the spindle stops rotating after reaching the

value obtained by the following expression: [Command

multiplication parameter]  [Incremental command data]. During

incremental motion, the parameter indicating the direction of

rotation, NRROA (Series 16: PRM4003, bits 2 and 3), is invalid.

 When the position error comes within the range specified by the

parameter (Series 16: PRM4075), ORARA is output.

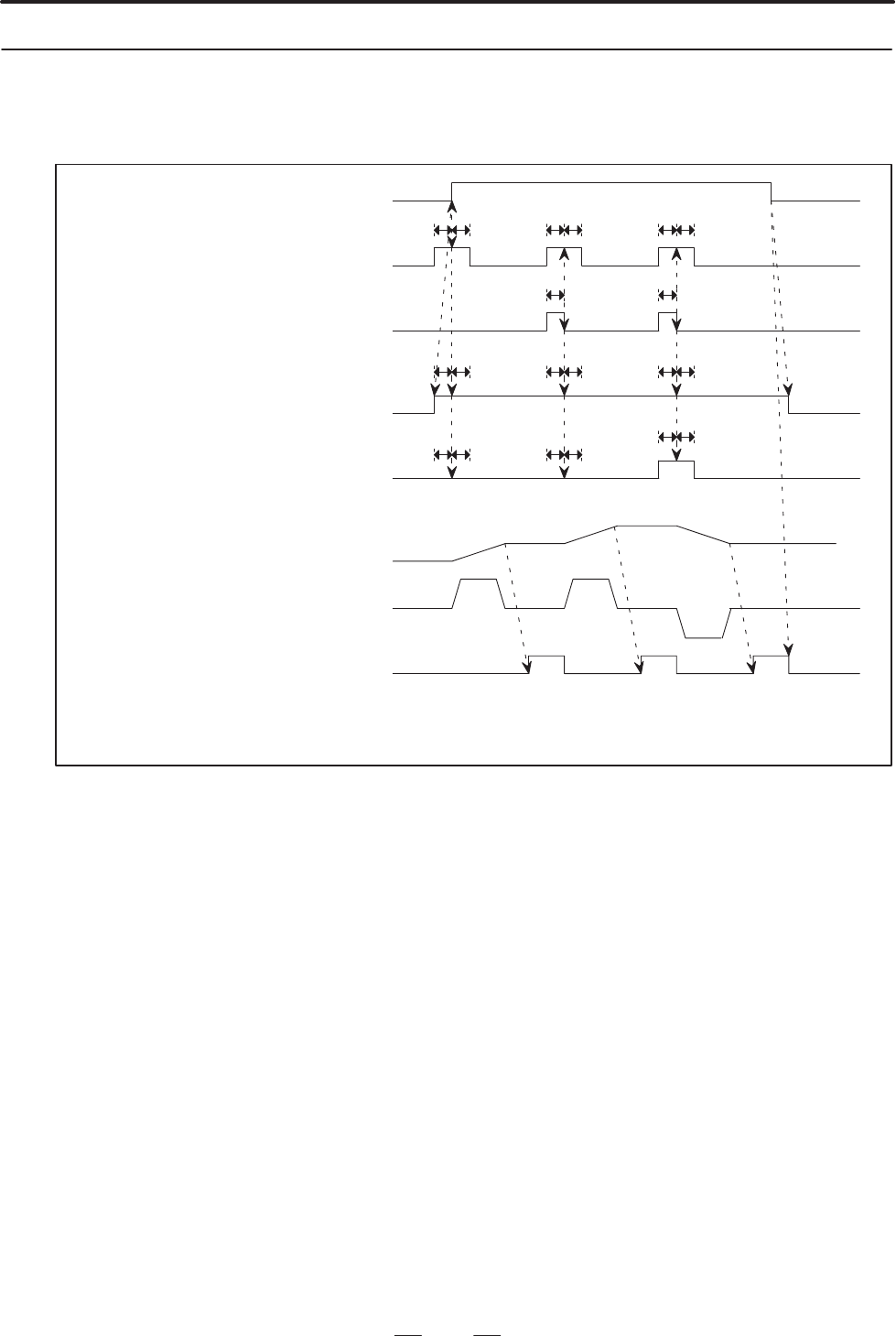

11.1.3.4
