B–65162E/03

10. INTERFACE SIGNALS

407

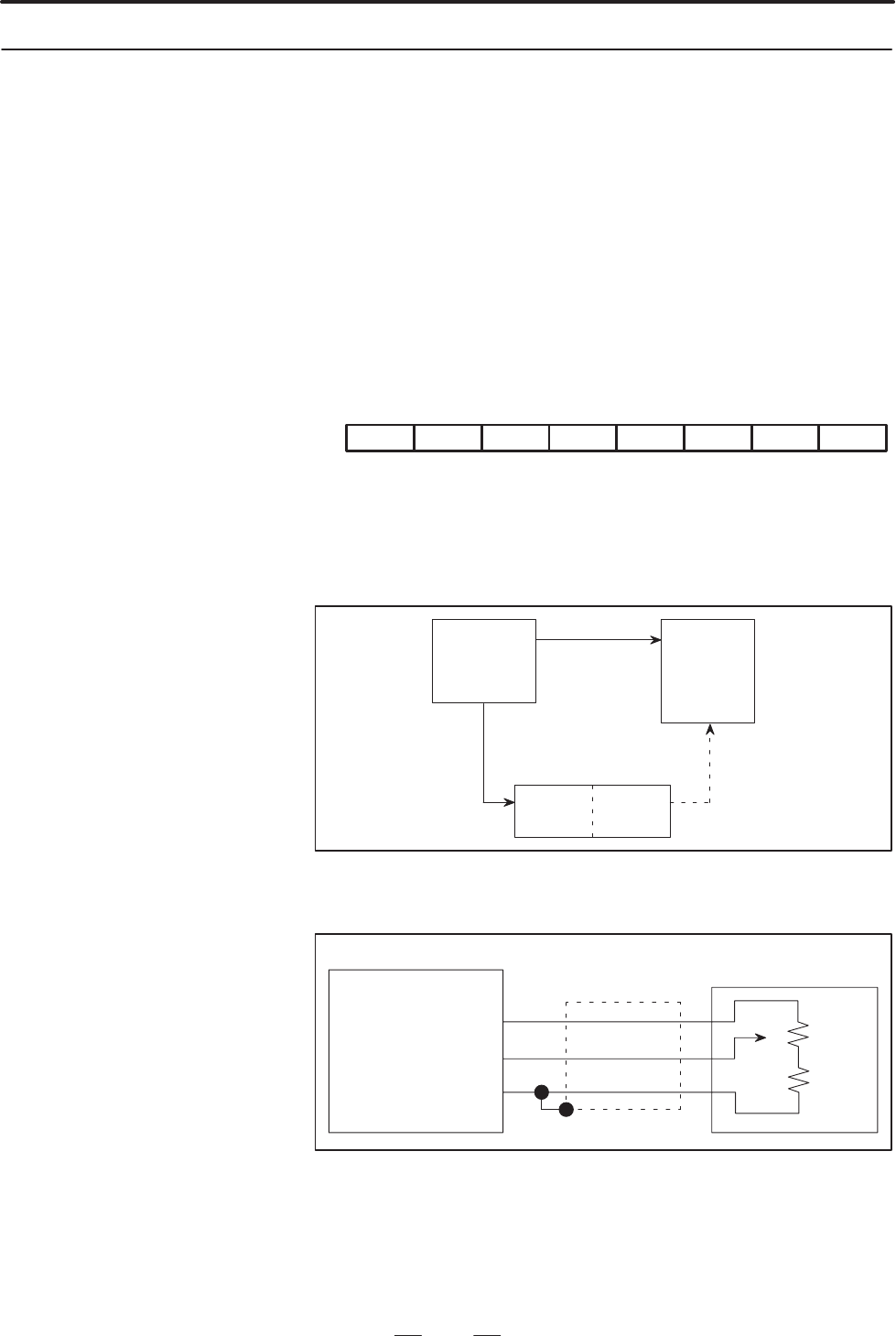

D This function allows an analog voltage input to the spindle amplifier

to apply an override to the frequency command.

D The analog override function is valid only in the normal control mode.

D The analog override function is valid when this signal is 1.

D The following parameter sets the upper limit of the analog override.

The input voltage value that corresponds with the frequency of the

upper limit of analog override is 4.5 V across OVR2 and 0V. (An input

more than 4.5 V does not make excess of the maximum frequency).

Even if an overridden frequency command exceeds the value set with

the max. frequency parameter, the frequency is clamped to the

maximum frequency.

#7 #6 #5

ALGOVR

#4 #3 #2 #1 #0

1st Spindle : 6506 3006 4006

2nd Spindle: 6646 3146

FS0 FS15 FS16

(Parameter No.)

ALG OVR =0 : Upper limit 100%

=1 : Upper limit 120%

D A system configuration in relation with the analog override function

is as follows:

Machine

operator’s

panel

Spindle

amplifier

module

Analog

input

OVR1

OVR2

Override

valid/invalid

PMC CNC

OVRA

Connection about the analog override input is as follows:

The override unit is 1%.

Spindle amp module

JY1

(Nominal voltage) OVR1

(Analog input) OVR2

(0V) 0V

Shield wire

Machine operator’s

panel

Use the resistor(VR + R1) of 2 kΩ to 10 kΩ .

D When the analog override function valid/invalid switch signal is

switched, or when the override upper limit parameter is switched, the

motor speed may change radically. Therefore switch the signal or

parameter when the spindle is stopped.

10.4.15

Spindle Analog

Override Command

(OVRA)
