2. CONFIGURATION AND ORDERING INFORMATION
B–65162E/03
10

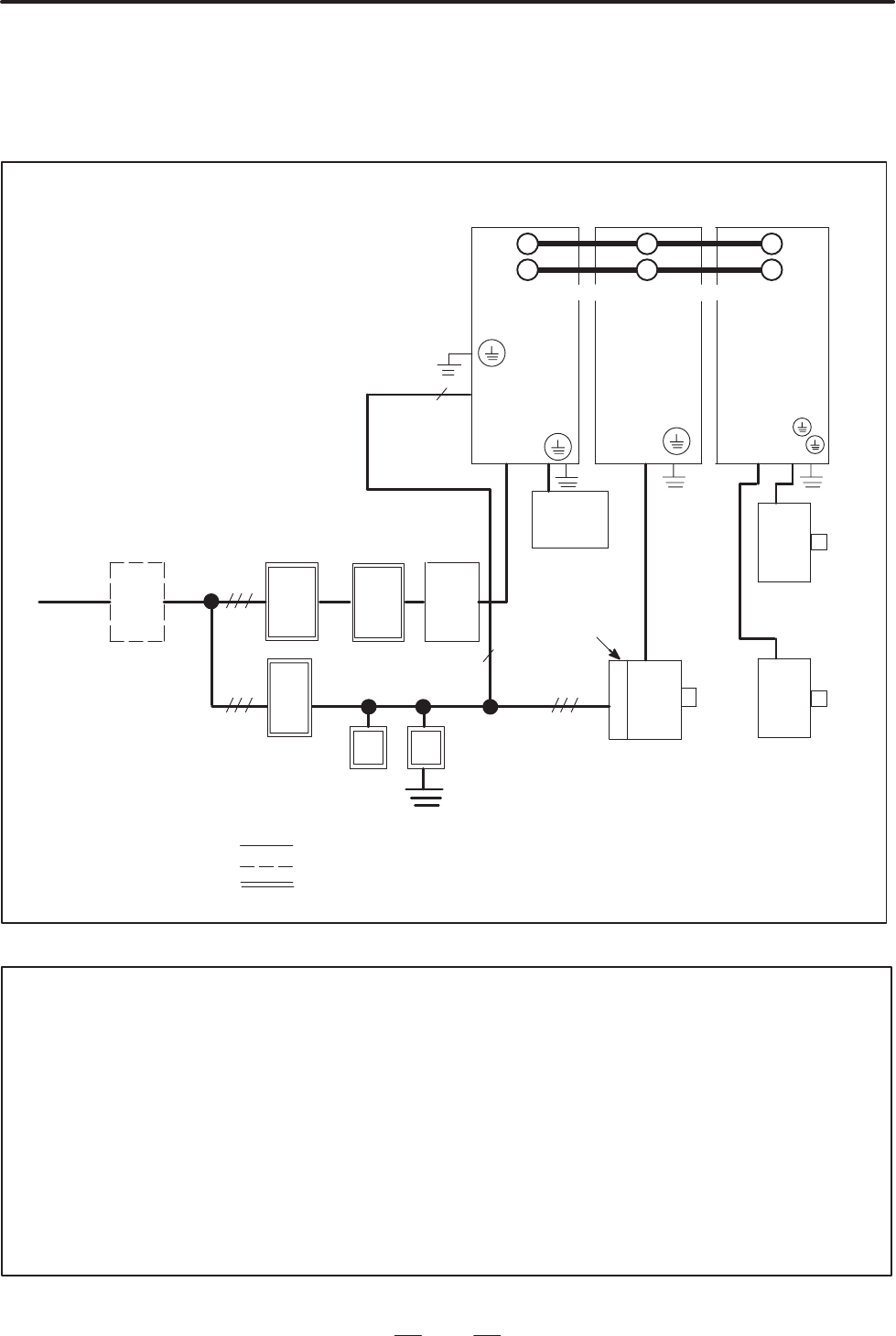

(b) Basic configuration using PSMR
(Example hausing one 2–axes servo amplifier modules and a spindle
amplifier module)
L+
L–
PSMR
SPM SVM
200R,
200S,
R S T U V W
UL VL WL
UM VM WM
Power supply
module
Spindle amplifier
module
Servo amplifier
module (2–axes)
(400VAC)
(460VAC)
DC link (300VDC)
AC input
for control
power
supply
Circuit
breaker 1
Power
transformer
200VAC
220VAC
230VAC
Magnetic
contactor
AC line
filter
Spindle motor
Servo
motor
Servo
motor
Fan
motor
: Basic
: Optional
: Units prepared by the machine tool builder
Lightening surge
absorbers
SPMC
1φ
3φ
3φ
1φ
3φ
Regenerative
discharge unit
RE1 RE2
TH1TH2
Circuit
breaker 2
NOTE
1 See Chapter 3 for details of how to combine the power supply module, servo amplifier modules,
and spindle amplifier modules.
2 A magnetic contactor, AC line filter, regenerative discharge unit, and circuit breakers are always
required.
3 To protect the unit from surge currents caused by lightning, connect surge absorbers between
lines, and between the lines and ground, at the power inlet of the power magnetics cabinet.
See APPENDIX A for details.
4 When an insulating transformer is installed, high–frequency noise to the power supply is
reduced, so the AC line filter is not required. If the insulating transformer is installed outside
the power magnetics cabinet, and the cable connecting the amplifier is exposed, the cable must
be covered with a grounded metal duct, or an AC line filter must be installed.
