11. OPTION RELATED TO SPINDLE

B–65162E/03

452

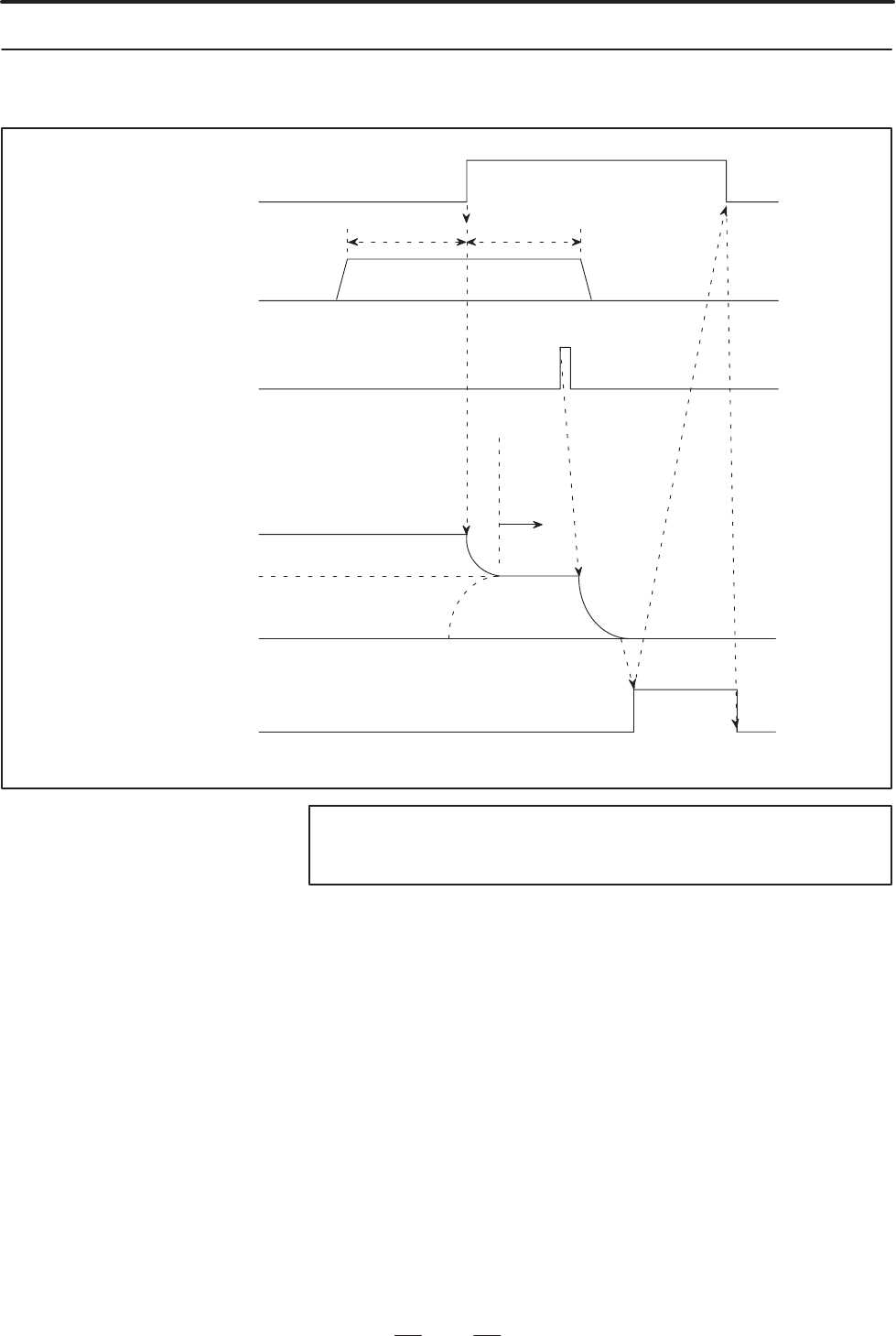

ORCMA

(Spindle orientation

command)

SHA00–11

(Stop position

command for spindle

orientation)

EXTSC

(External one–

rotation signal)

Start of 1–rotation signal detection

After arrival of orientation speed

One–rotation signal detection

Orientation speed

Motor speed

ORARA

(Spindle orientation

completion signal)

NOTE

To confirm the signal, t should be 50 msec or more.

(1) Orientation function

D To detect a one–rotation signal securely, it is necessary to fix the

orientation (by setting bit 3 andt 2 of parameter No. 4003 to 1, 0 or

1, 1; see descriptions about parameter setting).

D After the orientation of the spindle is fixed and the orientation speed

is reached, a one–rotation signal is detected to cause the spindle to

stop at a position determined by the following stop position data

(Series16:4077).

Stop position data is (parameter No. 4031 + 4077)

Case of external stop position setting type, Stop position data is

(SHA00–11 + 4077)

D The orientation resolution of the spindle is 1/4096 rev (4096p/rev).

D If the stop position data (No. 4031 + No. 4077) or (SHA00–11 + No.

4077) is 0, the spindle stops at the edge of the output signal from the

one–rotation signal switch.

11.1.4.5

Control Sequence
