11. OPTION RELATED TO SPINDLE

B–65162E/03

518

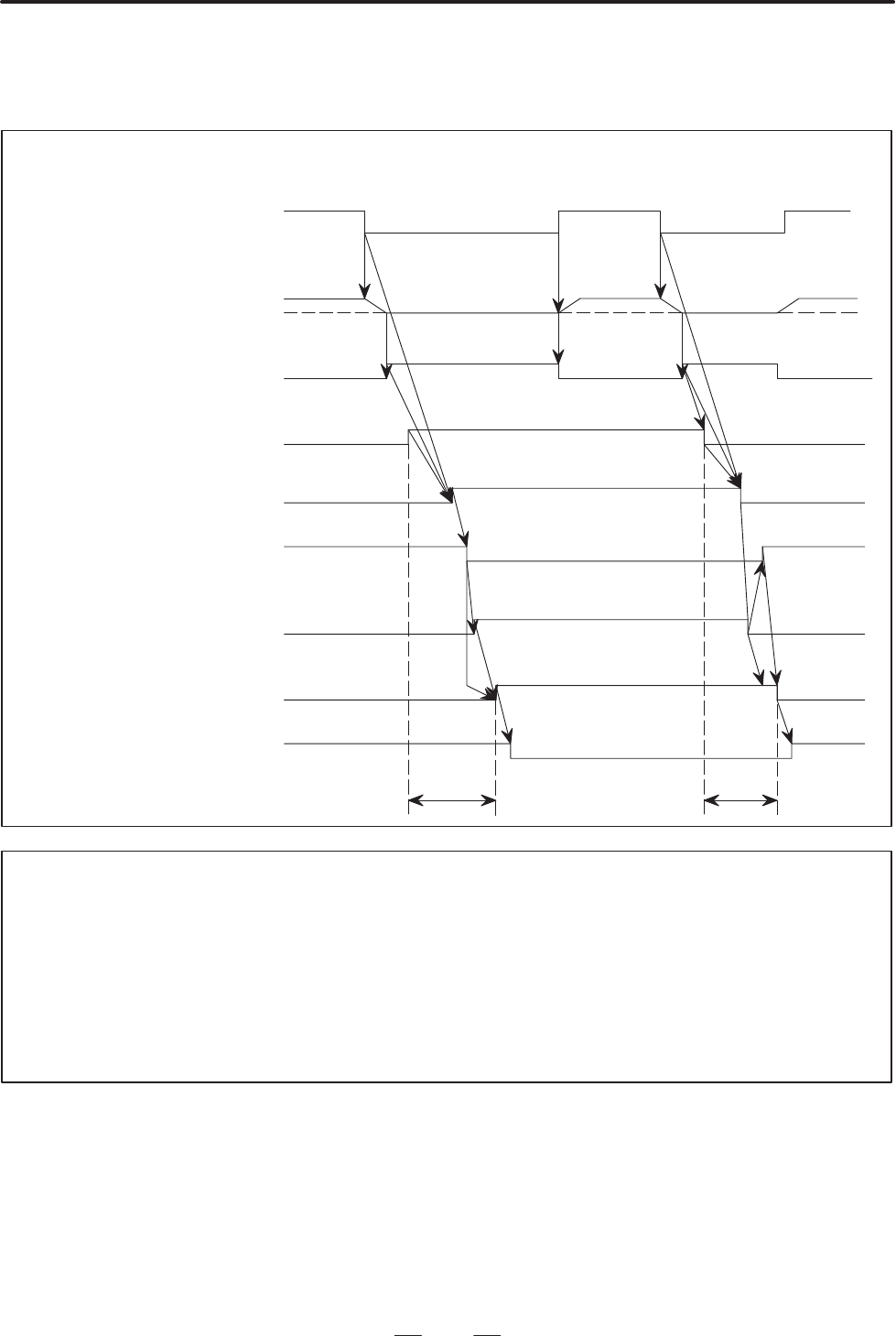

(2) When the Spindle Switching Control Works by Confirming Only the Power-line Status Check Signal (MCFNA)

For parameter No. 4014#2=0 (FS16)

MAIN (=0)

ON (=1)

MAIN SPINDLE ³ SUB SPINDLE ³ MAIN SPINDLE

Spindle forward rotation command

(SFRA) or Spindle reverse rotation

command (SRVA)

PMC ³ CNC

Spindle motor speed

Speed zero signal (SSTA)

CNC ³ PMC

Switching request signal (SPSLA)

PMC ³ CNC

Power-line switching signal (CHPA)

CNC ³ PMC

Main side electromagnetic contactor

(MCC2)

Sub side electromagnetic contactor

(MCC1)

Power-line status check signal

(MCFNA)

PMC ³ CNC

Switching completion signal

(CFINA)

CNC ³ PMC

ON (=1)

OFF (=0)

Stop

OFF (=0)

OFF (=0) OFF (=0)

ON (=1)

MAIN (=0)

SUB (=1)

MAIN (=0)

OPEN (=0)

SUB (=1)

CLOSED (=1)

CLOSED

OPEN

CLOSED

OPEN

OPEN (=0)

CLOSED

SUB (=1)

OPEN

NOTE

1 Because there are electromagnetic contactor operation delays etc. when checking

electromagnetic contactor MCC1, MCC2 selection conditions in electromagnetic contactor

MCC1 (see PMC and switching unit contact details) only, auxiliary contacts make sure that

there is a minimum time lag of 50 msec between operating the MCC1, MCC2 switch and

changing the power cable condition verification signal (MCFN) with the power cable switching

signal (CHP).

2 If the power-line status signal (MCFNA) doesnot change within 1 second after the switching

request signal (SPSLA) is changed, the alarm occurs.
