B–65162E/03

11. OPTION RELATED TO SPINDLE

429

 When the positional deviation becomes equal to or less than the

number or pulses set with a parameter (orientation completion

signal level [parameter No. 4075 for FS16]), the spindle orientation

completion signal (ORARA) is output.

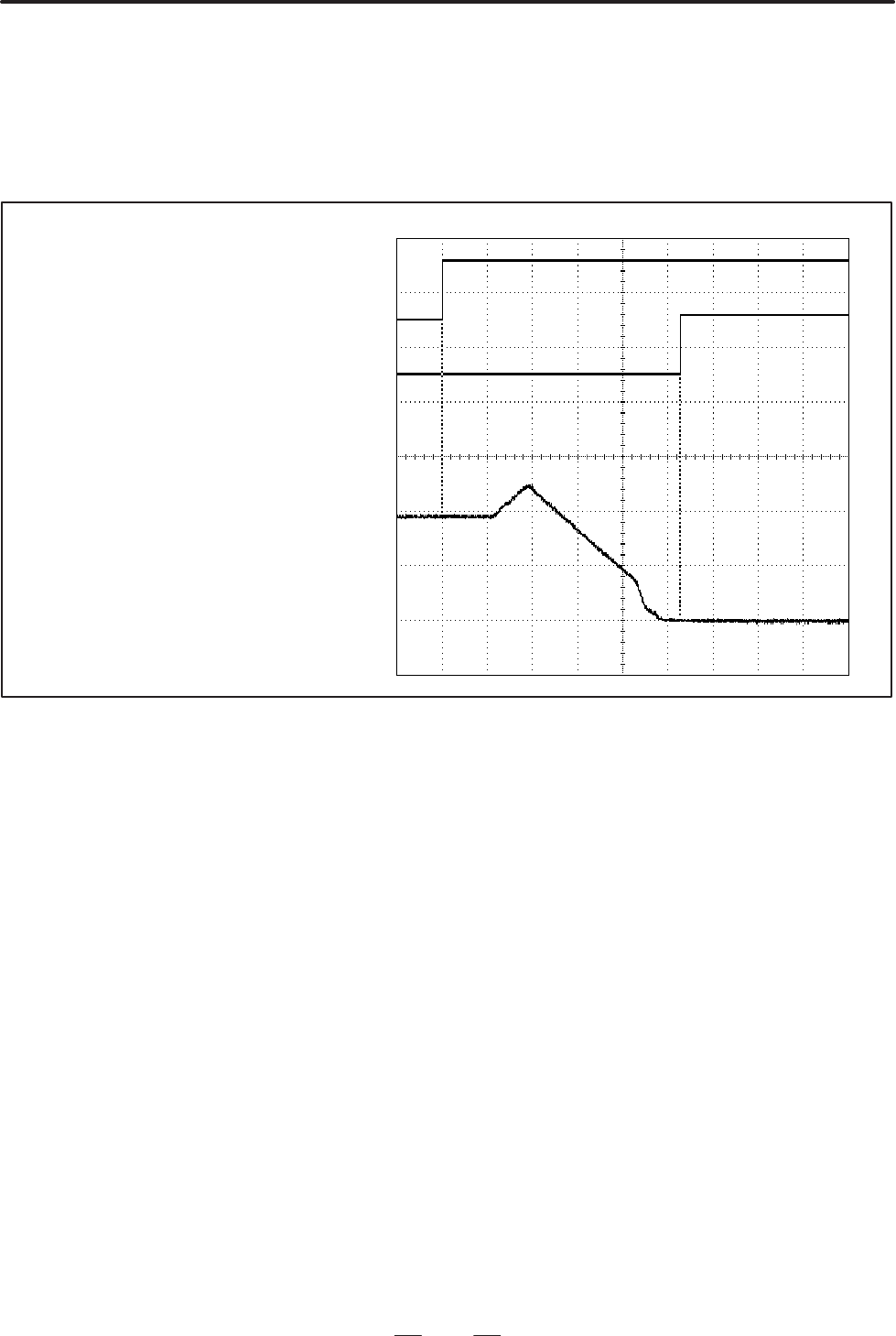

3) When an orientation operation is started from a speed lower than the

lower orientation speed limit









ORCMA (orientation command)

ORARA (orientation completion signal)

Motor speed

 If a spindle orientation command (ORCMA) is entered when the

speed is lower than the lower orientation speed limit (calculated

internally by software), a one–rotation signal is detected (only for

the first orientation after power–on).

 The speed is increased according to the motor deceleration time

constant set with parameter No. 4320 to No. 4323 (FS16).

 The speed is reduced according to the motor deceleration time

constant set with parameters No. 4320 to No. 4323 (FS16).

 When the speed becomes equal to or less than a value calculated

internally by software, the position loop is controlled according to

the orientation–time position gain set with parameters No. 4060 to

No. 4063 (FS16).

 When the positional deviation becomes equal to or less than the

number or pulses set with a parameter (parameter No. 4075 for

FS16) for specifying an orientation completion signal level, the

spindle orientation completion signal (ORARA) is output.
